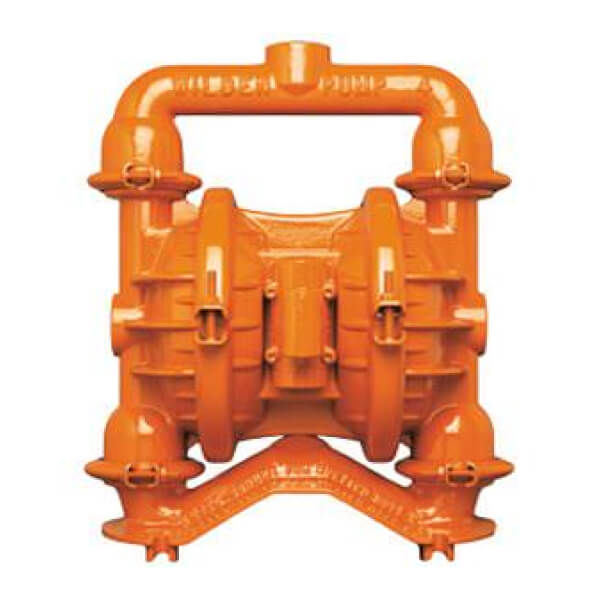

38 mm (1-1/2") Turbo-Flo™ Clamped Metal AODD Pump T4

Famous for its long life and easy serviceability, the durable Wilden® Turbo-Flo™ Series is the first air distribution system (ADS) that originated in the air-operated double-diaphragm (AODD) pump industry. Though enhancements have been made, these pumps work well in certain applications where quality of the compressed air is a concern. These pumps are easy to maintain, cost effective, and economical. Portable and available in a single-point exhaust option for submersible applications, the Turbo-Flo excels in utilitarian-type applications, including the transfer of water, slurry and more.

• Simple air distribution system design, minimal moving parts
• Clamped design for lightweight and quick maintenance
• Ability to handle dirty air applications
• Single-point exhaust

EOM

Dimensional Drawings

3D Models

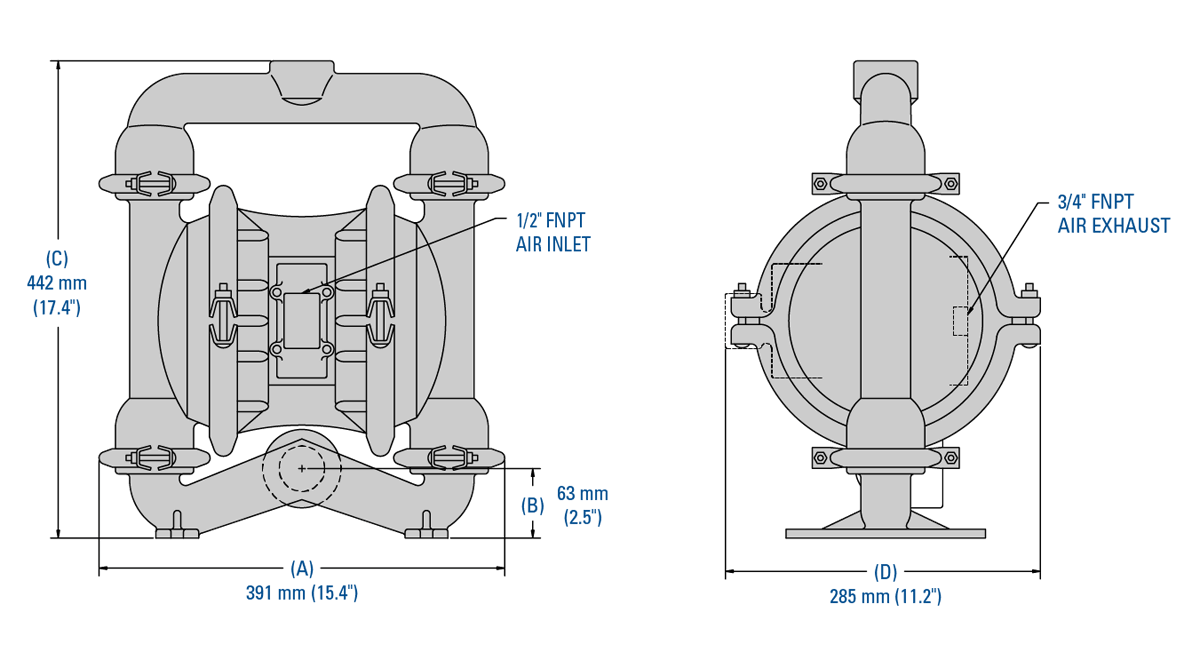

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the T4 Metal Manual.

Flow Curve – TPE-Fitted

Note: Additional performance curves can be found in the T4 Metal Manual.

AIR INLET

• 1/2" FNPT

LIQUID INLET

• 38 mm (1-1/2")

LIQUID DISCHARGE

• 38 mm (1-1/2")

CONNECTION TYPE

• NPT/BSPT (Threaded)

MAX FLOW RATE

• Rubber – 288 lpm (76 gpm)
• TPE – 307 lpm (81 gpm)
• PTFE – 235 lpm (62 gpm)

MAX PRESSURE

• 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

• 4.8 mm (3/16'')

MAX SUCTION LIFT CAPABILITY

• Rubber – 5.49 m (18') Dry, 8.53 m (28') Wet
• TPE – 4.27 m (14') Dry, 8.23 m (27') Wet
• PTFE – 2.74 m (9') Dry, 8.53 m (28') Wet

DISPLACEMENT PER STROKE ^*

• Rubber – 1.02 L (0.27 gal)
• TPE – 1.17 L (0.31 gal)
• PTFE – 2.6 L (0.69 gal)
^* 1 cycle = 2 strokes
