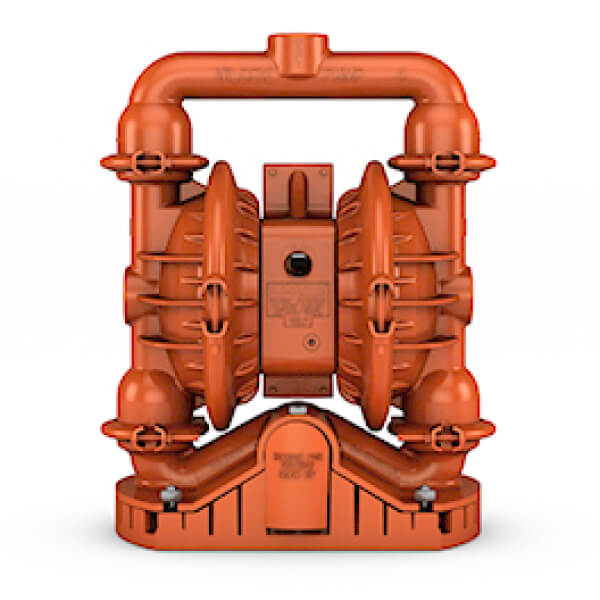

38 mm (1-1/2") Pro-Flo® SHIFT Stallion® Series Clamped Metal AODD Pump PS4

AIR INLET
  • 3/4" FNPT
LIQUID INLET
  • 38 mm (1-1/2")
LIQUID DISCHARGE
  • 38 mm (1-1/4")
CONNECTION TYPE
  • NPT/BSPT (Threaded)
MAX SUCTION LIFT CAPABILITY
  • EZ-Install TPE – 5.7 m (18.7') Dry, 9.0 m (29.5') Wet
MAX FLOW RATE
  • EZ-Install TPE – 307 lpm (81 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • 13 mm (1/2'')
DISPLACEMENT PER STROKE *
  • EZ-Install – 0.8 L (0.22 gal)
  • * 1 cycle = 2 strokes
  • icon_cert-CE
  • icon_cert-Ex

Features and Benefits

Wilden® Stallion® Series Air-Operated Double-Diaphragm (AODD) Pumps are ideally suited for rugged mining applications thanks to their unique ability to handle solid-laden mining slurries with ease. Furthering the Stallion Series pump’s ability to handle the toughest mining applications is a robust design featuring a large internal clearance and flow-through path for large-solids passage that prevents the pump from clogging. The Stallion Series is also designed with a polyurethane screen base at its inlet to provide additional durability.

Stallion Series technology incorporates an altered ball/seat check-valve assembly to allow for solids passage. Its polyurethane screen base at the inlet gives added durability.

  • Clamped design with handles for lightweight portability
  • Large internal clearances due to modified ball, seats, diaphragms and shafts to handle solid-laden slurries
  • Polyurethane screen base to act as an initial filter to keep larger solids from damaging the pump
  • Powered by Pro-Flo® SHIFT Air Distribution System (ADS)

Performance and Specifications

Dimensions

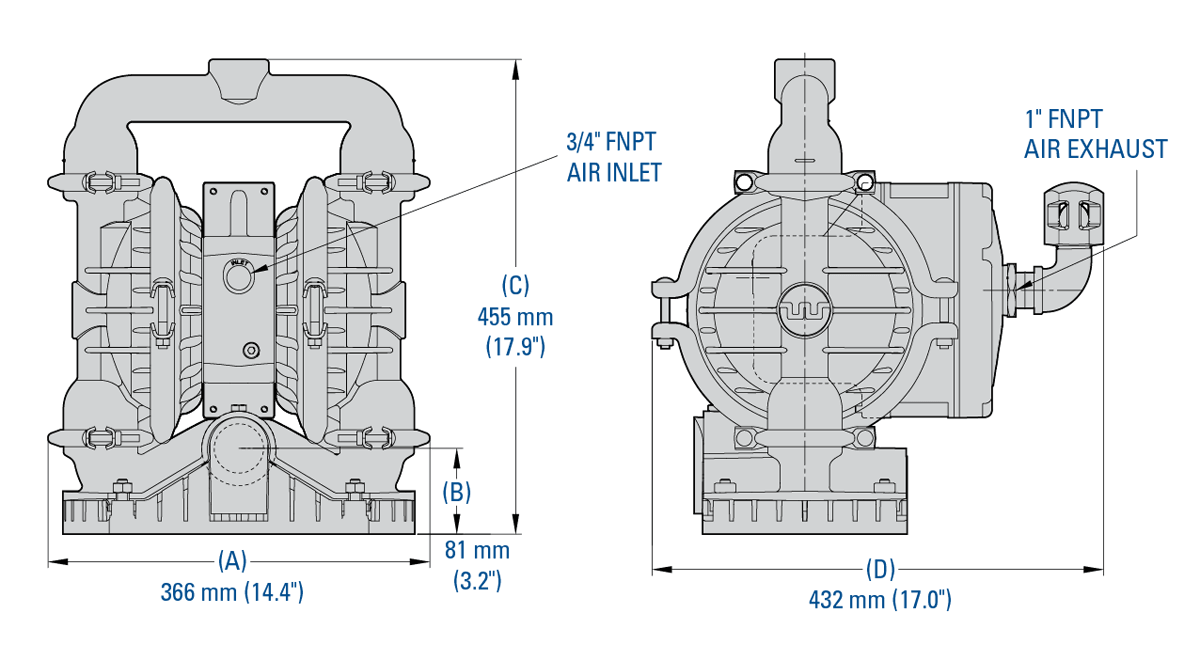

Dim-PS4-38mm1.5in-Stallion_CMP

Note: Dimensions vary by material and connection. For additional information, please refer to the PS4 Metal Manual.

Flow Curve – EZ-Install TPE-Fitted

Flo-PS4-38mm1.5in-Stallion_CMP

Note: Additional performance curves can be found in the PS4 Metal Manual.

AIR INLET
  • 3/4" FNPT
LIQUID INLET
  • 38 mm (1-1/2")
LIQUID DISCHARGE
  • 38 mm (1-1/2")
CONNECTION TYPE
  • NPT/BSPT (Threaded)
MAX FLOW RATE
  • EZ-Install TPE – 307 lpm (81 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • 13 mm (1/2'')
MAX SUCTION LIFT CAPABILITY
  • EZ-Install TPE – 5.7 m (18.7') Dry, 9.0 m (29.5') Wet
DISPLACEMENT PER STROKE *
  • EZ-Install – 0.8 L (0.22 gal)
  • * 1 cycle = 2 strokes

Wetted Housings

Material Ship Weight
Aluminum 22 kg (49 lb)
Ductile Iron 30 kg (66 lb)

Non-Wetted Housings

Description Material
Center Section Aluminum
Air Valve Aluminum
Air Chamber Aluminum

Elastomer Options

Material Temperature Limits
Buna-N -12°C to 82°C (10°F to 180°F)
EPDM -51°C to 138°C (-60°F to 280°F)
FKM -40°C to 177°C (-40°F to 350°F)
Geolast® -40°C to 82°C (-40°F to 180°F)
Neoprene -18°C to 93°C (0°F to 200°F)
Polyurethane -12°C to 66°C (10°F to 150°F)
Wil-Flex™ -40°C to 107°C (-40°F to 225°F)
