Wilden AODD Double Diaphragm Pump - 38 mm (1-1/2 in.) - Pro-Flo SHIFT Clamped Plastic - PS4

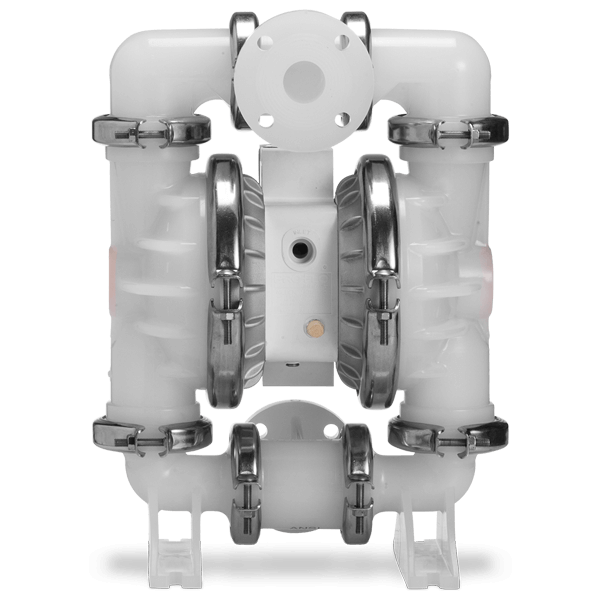

38 mm (1-1/2") Pro-Flo® SHIFT Series Clamped Plastic AODD Pump PS4

AIR INLET
  • 3/4" FNPT
LIQUID INLET
  • 38 mm (1-1/2")
LIQUID DISCHARGE
  • 38 mm (1-1/2")
CONNECTION TYPE
  • DIN/ANSI (Flanged)
MAX SUCTION LIFT CAPABILITY
  • Rubber – 5.9 m (19.5') Dry, 8.3 (27.2') Wet
  • EZ-Install TPE – 6.2 m (20.4') Dry, 8.3 m (27.2') Wet
  • Full-Stroke PTFE – 6.1 m (19.9') Dry, 8.3 m (27.2') Wet
MAX FLOW RATE
  • Rubber – 379 lpm (100 gpm)
  • EZ-Install TPE – 378 lpm (100 gpm)
  • Full-Stroke PTFE – 368 lpm (98 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • 4.8 mm (3/16")
DISPLACEMENT PER STROKE *
  • Rubber –1.0 L (0.26 gal)
  • EZ-Install TPE – 1.0 L (0.26 gal)
  • Full-Stroke PTFE – 1.0 L (0.26 gal)
    • * 1 cycle = 2 strokes
  • icon_cert-CE

Features and Benefits

When Jim Wilden first added a plastic pump series to his product portfolio, he designed it with what he knew best: a clamped pump. Incorporating the same benefits as a clamped metal pump, these plastic versions offer a simple, rugged design that is ideally suited for chemical applications. Engineered with ease of maintenance in mind, clamped plastic pumps are simple to install and are made for quick serviceability, allowing the pump to be taken apart and put back together with only a single tool. Proven by the test of time, hundreds of thousands of Jim Wilden's clamped plastic pumps have pumped billions of gallons of fluid on an annual basis.

  • DIN and ANSI flanged inlet/discharge liquid connections
  • Rotatable inlet and discharge for flexibility
  • Featuring the energy-efficient Pro-Flo® SHIFT ADS
  • Greater flow - more gallons pumped per SCFM
  • Reduced air consumption and kilowatt usage
  • Decades of proven performance
  • Clamped connections for faster maintenance
  • Low cost
  • Simple installation
  • Ease of operation and maintenance

Downloads

EOMs

38 mm (1-1/2") Pro-Flo SHIFT Clamped Plastic Pump
Model: PS4 | Code: WIL-10440-E-04

Spec Sheets

SPEC SHEET 38 mm (1-1/2") Pro-Flo Shift Plastic Pump
Model: PS4 | Code: WIL-10440-T-02

Performance and Specifications

Dimensions

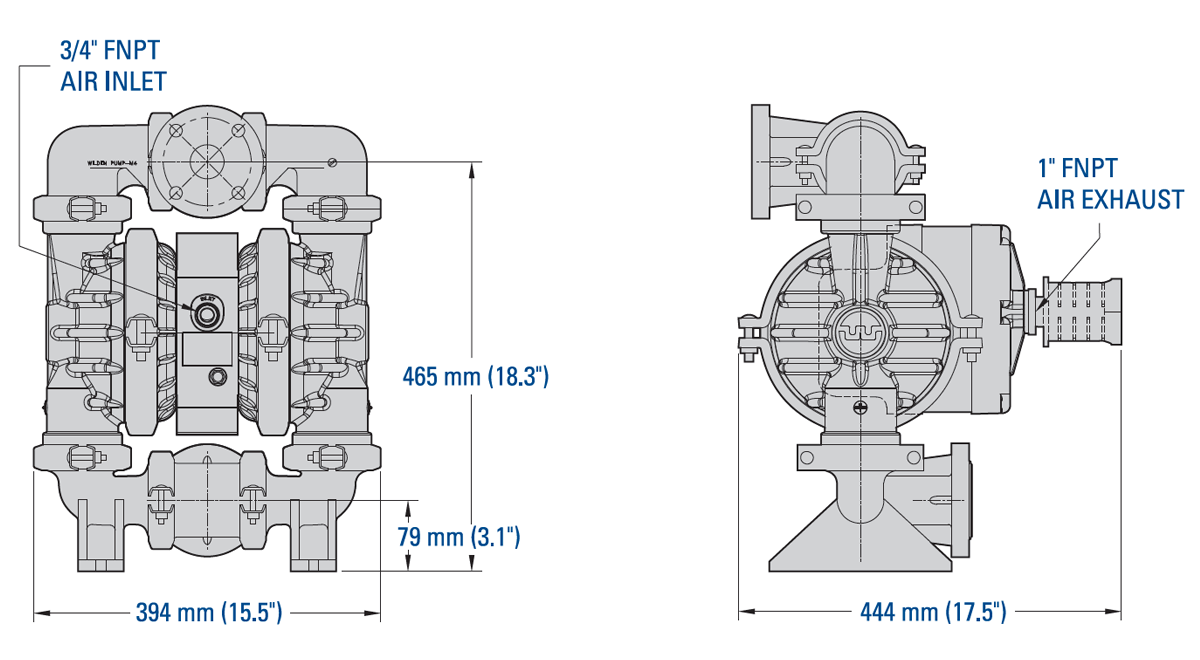

Dim-PS4-38mm

Note: Dimensions vary by material and connection. For additional information, please refer to the PS4 Plastic Manual.

Flow Curve – EZ-Install TPE-Fitted

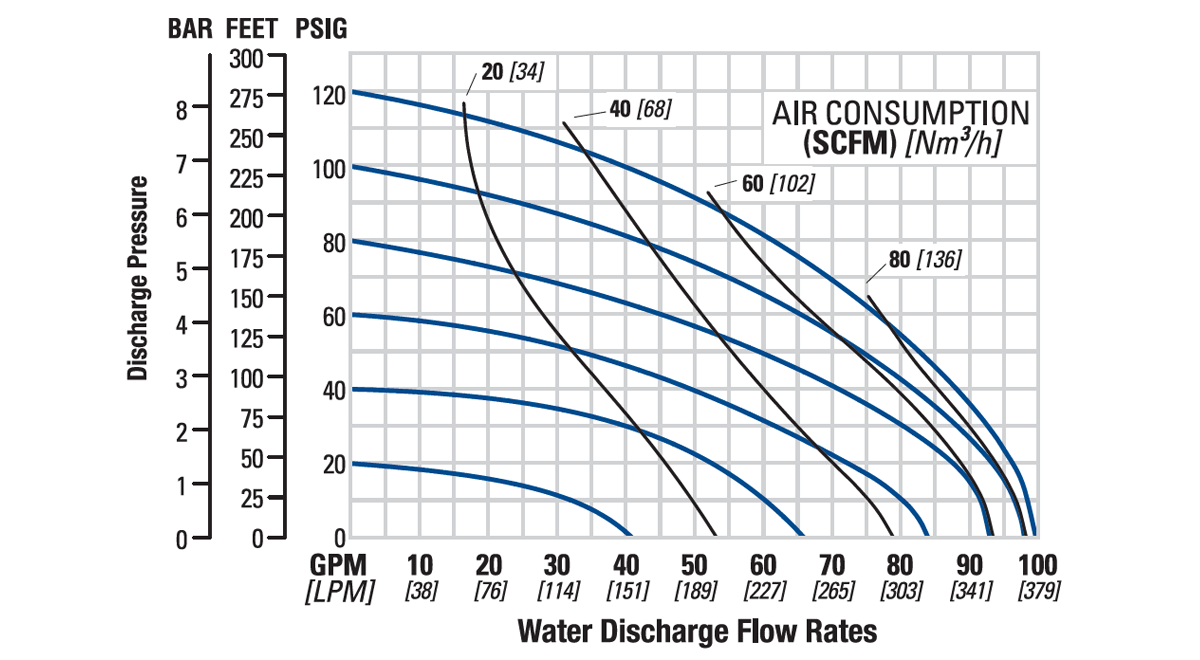

Flo-PS4-38mm

Note: Additional performance curves can be found in the PS4 Plastic Manual.

AIR INLET
  • 3/4" FNPT
LIQUID INLET
  • 38 mm (1-1/2")
LIQUID DISCHARGE
  • 38 mm (1-1/2")
CONNECTION TYPE
  • DIN/ANSI (Flanged)
MAX FLOW RATE
  • Rubber – 379 lpm (100 gpm)
  • EZ-Install TPE – 378 lpm (100 gpm)
  • Full-Stroke PTFE – 368 lpm (98 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • 4.8 mm (3/16")
MAX SUCTION LIFT CAPABILITY
  • Rubber – 5.9 m (19.5') Dry, 8.3 (27.2') Wet
  • EZ-Install TPE – 6.2 m (20.4') Dry, 8.3 m (27.2') Wet
  • Full-Stroke PTFE – 6.1 m (19.9') Dry, 8.3 m (27.2') Wet
DISPLACEMENT PER STROKE *
  • Rubber –1.0 L (0.26 gal)
  • EZ-Install TPE – 1.0 L (0.26 gal)
  • Full-Stroke PTFE – 1.0 L (0.26 gal)
    • * 1 cycle = 2 strokes

Wetted Housings

Material Ship Weight
Polypropylene 18 kg (40 lb)
PVDF 24 kg (52 lb)

Non-Wetted Housings

Description Material
Center Block Polypropylene, Aluminum, Stainless Steel
Air Valve Polypropylene, Aluminum Stainless Steel
Air Chamber Aluminum, PFA-Coated Aluminum, Stainless Steel

Elastomer Options

Material Temperature Limits
Buna-N -12°C to 82°C (10°F to 180°F)
EPDM -51°C to 138°C (-60°F to 280°F)
FKM -40°C to 177°C (-40°F to 350°F)
Geolast® -40°C to 82°C (-40°F to 180°F)
Neoprene -18°C to 93°C (0°F to 200°F)
PTFE* 4°C to 104°C (40°F to 220°F)
Polyurethane -12°C to 66°C (10°F to 150°F)
Saniflex™ -29°C to 104°C (-20°F to 220°F)
Wil-Flex™ -40°C to 107°C (-40°F to 225°F)

* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
