38 mm (1-1/2") Pro-Flo® SHIFT Series Bolted Metal AODD Pump PS420/PS430

AIR INLET
  • 3/4" FNPT
LIQUID INLET
  • 38 mm (1-1/2")
LIQUID DISCHARGE
  • 38 mm (1-1/2")
CONNECTION TYPE
  • NPT/BSPT (Threaded)
  • DIN/ANSI (Flanged)
MAX SUCTION LIFT CAPABILITY
  • Rubber – 5.9 m (19.5') Dry, 9.0 m (29.5') Wet
  • EZ-Install TPE – 6.2 m (20.4') Dry, 9.0 m (29.5') Wet
  • Full-Stroke PTFE – 5.5 m (17.9') Dry, 9.3 m (30.6') Wet
MAX FLOW RATE
  • Rubber – 500 lpm (132 gpm)
  • EZ-Install TPE – 510 lpm (135 gpm)
  • Full-Stroke PTFE – 485 lpm (128 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • 6.4 mm (1/4")
DISPLACEMENT PER STROKE *
  • Rubber – 1.1 L (0.30 gal)
  • EZ-Install TPE – 1.1 L (0.30 gal)
  • Full-Stroke PTFE – 1.1 L (0.30 gal)
    • * 1 cycle = 2 strokes
Order Online
  • icon_cert-CE
  • icon_cert-Ex

Features and Benefits

The Wilden® bolted metal pump, also known as FIT, sets the new standard for pump performance. Featuring an enhanced flow path design, Wilden's bolted-construction pumps offer improved flow rates (up to 35% over competitive models) as well as improved diaphragm life. Wilden's bolted pumps are also designed for superior containment and have the exact bolt down footprint and inlet/discharge connections as Wilden clamped pumps for easy replacement.

  • NPT or BSPT threaded inlet/discharge liquid connections (PS420)
  • DIN or ANSI flanged inlet/discharge liquid connections (PS430) that don't require welding or nipple attachment
  • Featuring the energy-efficient Pro-Flo® SHIFT ADS
  • Greater flow - more gallons pumped per SCFM
  • Reduced air consumption and kilowatt usage
  • Largest chemical compatibilities
  • Portable and submersible
  • Large-solids passage
  • High suction lift
  • Ease of operation and maintenance
  • Flexible internal adjustment on manifolds
  • Increased on/off reliability
  • Longest Mean Time Between Repair (MTBR)

Performance and Specifications

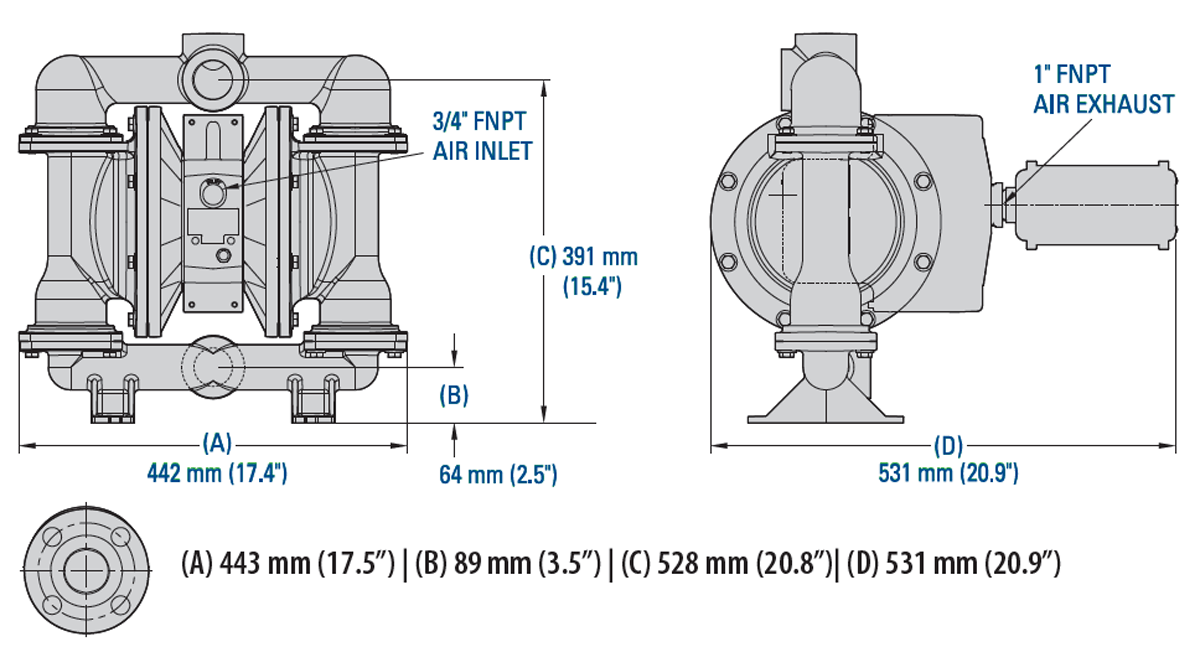

Dimensions

Dim-PS420430_38-mm-1.5in-PF-SBMP

Note: Dimensions vary by material and connection. For additional information, please refer to the PS420/PS430 Metal Manual.

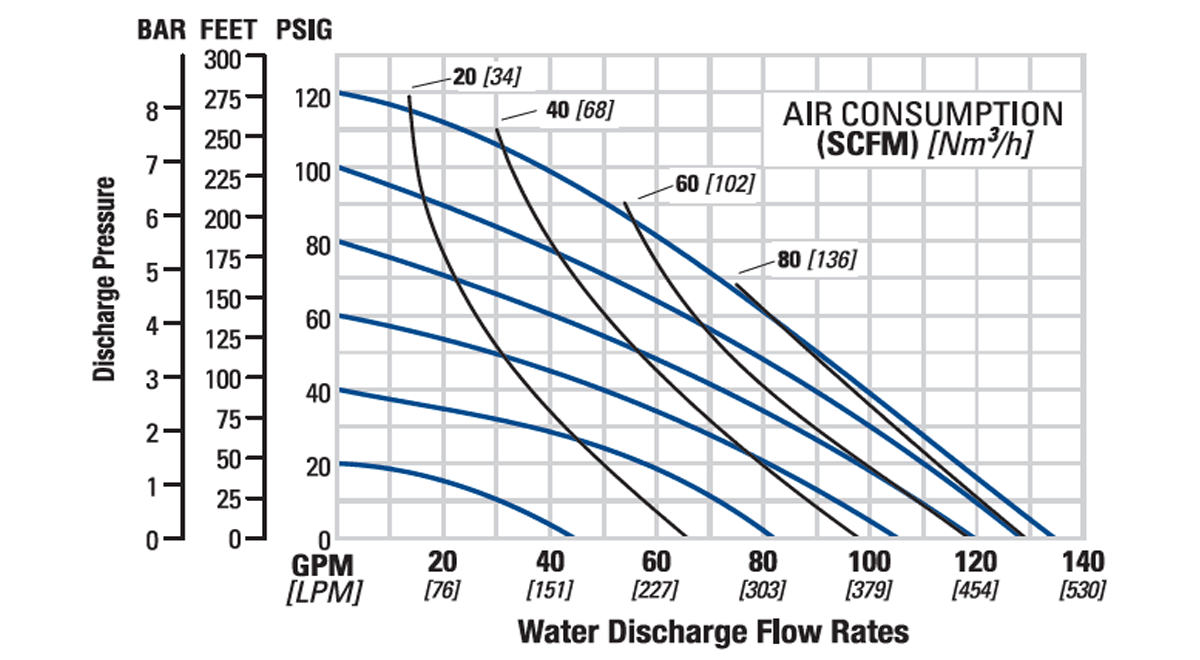

Flow Curve – EZ-Install TPE-Fitted

Flo-PS420430_38-mm-1.5in-PF-SBMP

Note: Additional performance curves can be found in the PS420/PS430 Metal Manual.

AIR INLET
  • 3/4" FNPT
LIQUID INLET
  • 38 mm (1-1/2")
LIQUID DISCHARGE
  • 38 mm (1-1/2")
CONNECTION TYPE
  • NPT/BSPT (Threaded)
  • DIN/ANSI (Flanged)
MAX FLOW RATE
  • Rubber – 500 lpm (132 gpm)
  • EZ-Install TPE – 510 lpm (135 gpm)
  • Full-Stroke PTFE – 485 lpm (128 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • 6.4 mm (1/4")
MAX SUCTION LIFT CAPABILITY
  • Rubber – 5.9 m (19.5') Dry, 9.0 m (29.5') Wet
  • EZ-Install TPE – 6.2 m (20.4') Dry, 9.0 m (29.5') Wet
  • Full-Stroke PTFE – 5.5 m (17.9') Dry, 9.3 m (30.6') Wet
DISPLACEMENT PER STROKE *
  • Rubber – 1.1 L (0.30 gal)
  • EZ-Install TPE – 1.1 L (0.30 gal)
  • Full-Stroke PTFE  – 1.1 L (0.30 gal)
    • * 1 cycle = 2 strokes

Wetted Housings

Material Ship Weight
Aluminum 26 kg (57 lb) (PS420)
28 kg (62 lb) (PS430)
Ductile Iron 39 kg (86 lb) (PS420)
42 kg (92 lb) (PS430)
Stainless Steel
  50 kg (111 lb) (PS420)
53 kg (116 lb) (PS430)

Non-wetted Housings

Description Material
Center Section Aluminum, Polypropylene, Stainless Steel
Air Valve Aluminum, Anodized Aluminum, Polypropylene, Stainless Steel
 Air Chamber Aluminum, Stainless Steel

Elastomer Options

Material Temperature Limits
Buna-N -12°C to 82°C (10°F to 180°F)
EPDM -51°C to 138°C (-60°F to 280°F)
FKM -40°C to 177°C (-40°F to 350°F)
Geolast® -40°C to 82°C (-40°F to 180°F)
Neoprene -18°C to 93°C (0°F to 200°F)
PTFE* 4°C to 104°C (40°F to 220°F)
Polyurethane -12°C to 66°C (10°F to 150°F)
Saniflex™ -29°C to 104°C (-20°F to 220°F)
Wil-Flex™ -40°C to 107°C (-40°F to 225°F)

* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
