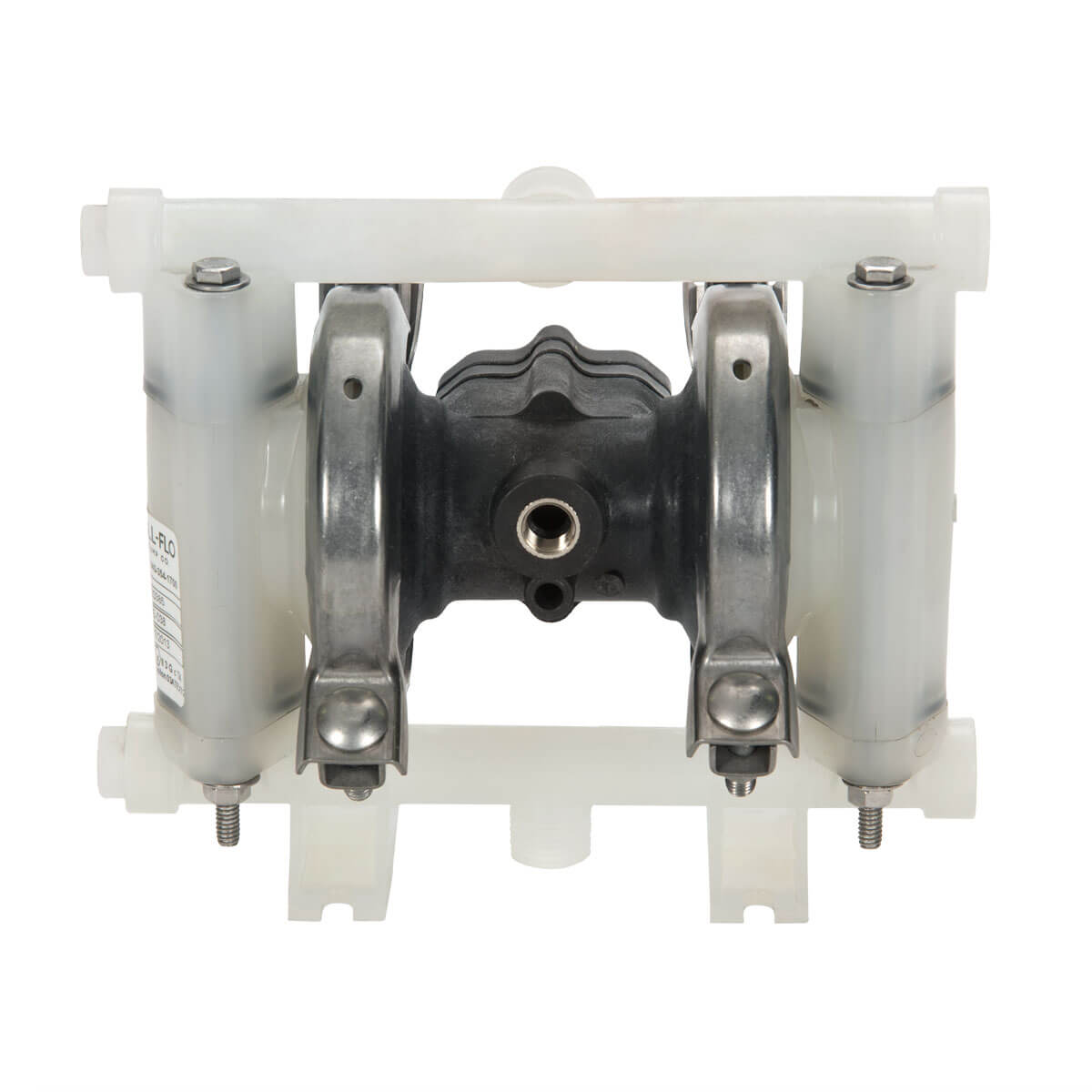

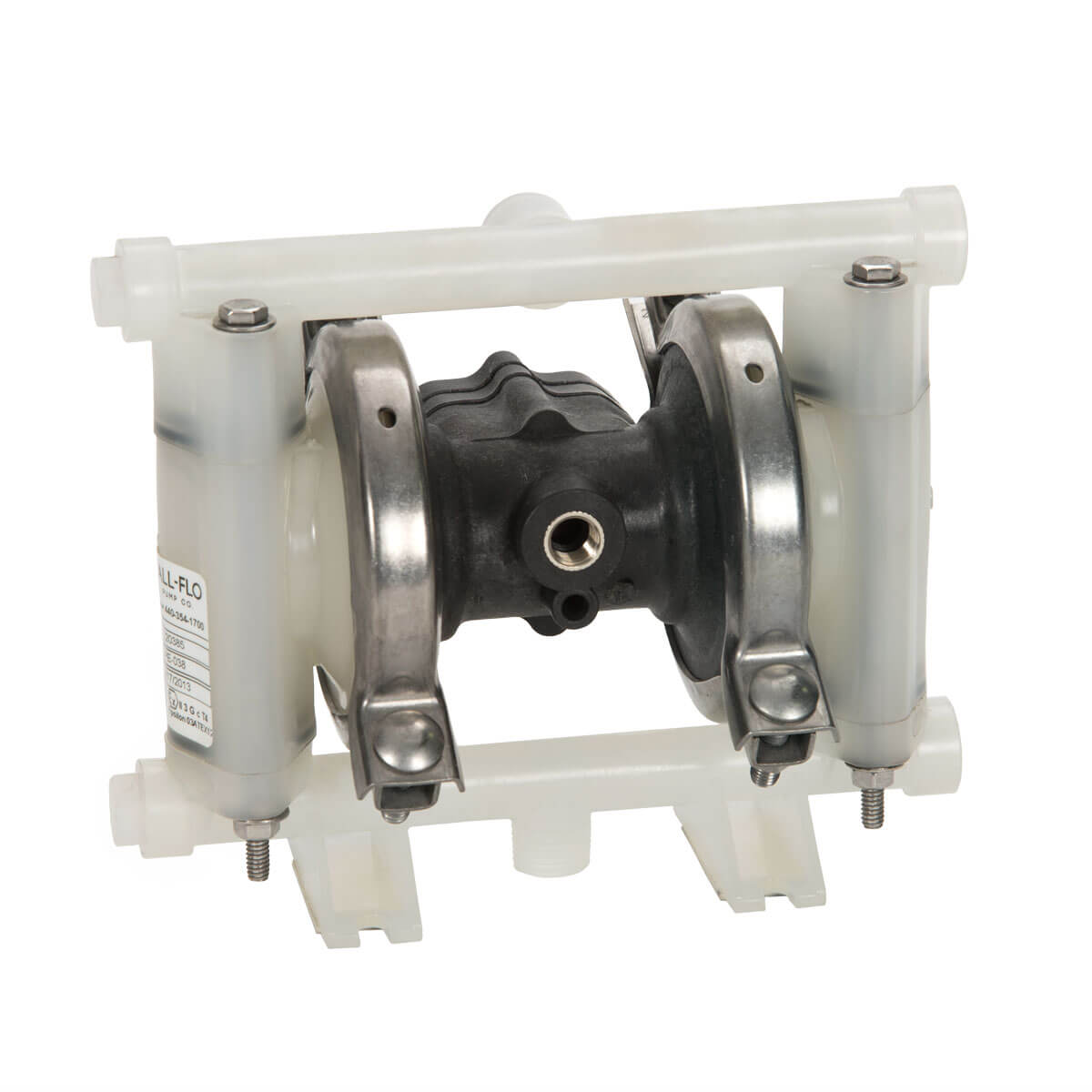

All-Flo AODD Double Diaphragm Pump - Plastic - 3/8 in. - C038 All-Flo AODD Double Diaphragm Pump - Plastic - 3/8 in. - C038 - Angled

3/8 in. Plastic AODD Pump C038

Air Inlet
  • 1/4" FNPT
Liquid Inlet
  • 3/8"
Liquid Discharge
  • 3/8"
Connection Type
  • FNPT/FBSPT (Threaded)
Max Suction Lift Capability
  • 10 ft-H2O (3.0 m-H2O) Dry
  • 26 ft-H2O (7.9 m-H2O) Wet
Max Flow Rate
  • 9 gpm (34.0 lpm)
Max Pressure
  • 120 psi (8.2 bar)
Max Diameter Solids
  • 1/16" (1.6 mm)
Displacement Per Stroke
  • 0.01 gal (0.04 L)
logo_choice Select Your Pump
  • CE Icon

Specifications

Physical Specifications
Liquid Port Size: 3/8 in.
Liquid Connection Types: FNPT (FBSPT)
Standard Suction Port: Right
Standard Discharge Port: Right
Air Inlet Connection Size: 1/4 in. FNPT
Air Exhaust Connection Size: 3/8 in. FNPT
Polypropylene PVDF Nylon
Max Height: 7.2 in. (182.6 mm) 7.2 in. (182.6 mm) 7.2 in. (182.6 mm)
Max Width: 8.6 in. (217.2 mm) 8.6 in. (217.2 mm) 8.6 in. (217.2 mm)
Max Depth: 4.8 in. (122.4 mm) 4.8 in. (122.4 mm) 4.8 in. (122.4 mm)
Weight: 3.8 lbs (1.7 kg) 5 lbs (2.3 kg) 3.8 lbs (1.7 kg)
Construction
Wet End: Conductive Nylon, Polypropylene, PVDF
Air End: Glass Filled Polypropylene
Diaphragm: Geolast®, PTFE, Santoprene®
Balls: Geolast®, PTFE, Santoprene®, FKM
Seats: Polypropylene, PVDF
O-Rings: Buna-N, EPDM, PTFE, FKM
Hardware: PTFE Coated Stainless Steel, Stainless Steel
Muffler: Metal, Plastic

Performance

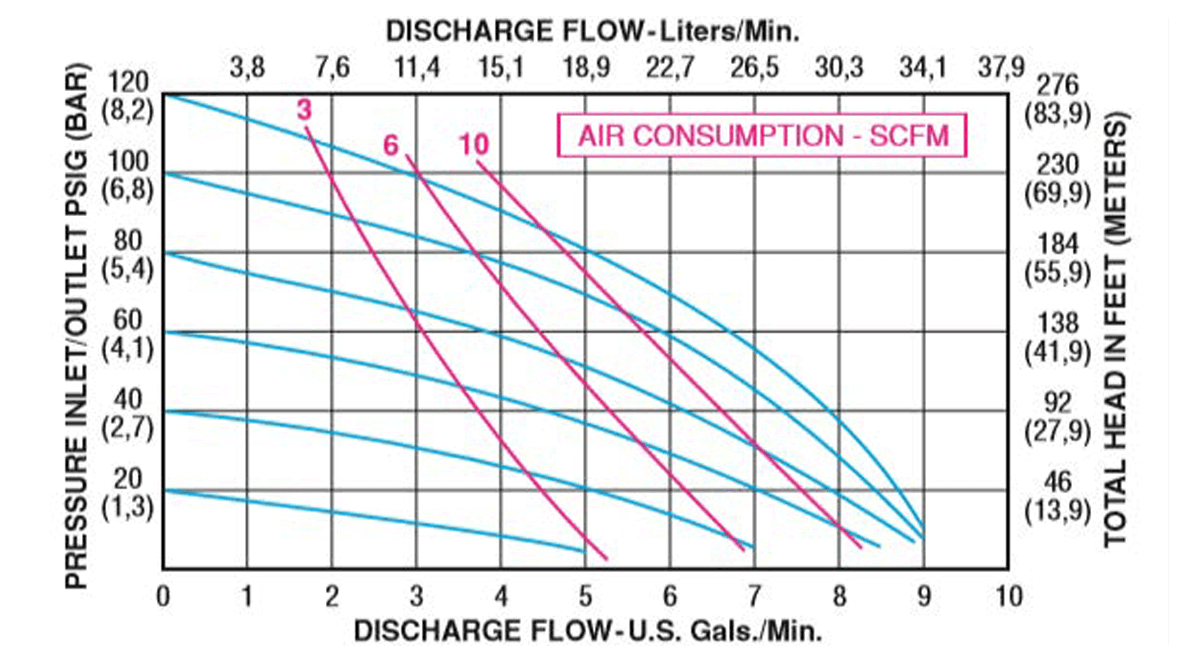

Performance Curve

C038-Performance-Curve

Note: Additional performance curves can be found in the download section.

Performance
Max Flow: 9 gpm (34.0 lpm)
Max Air Pressure: 120 psi (8.2 bar)
Max Static Suction Head: 23 ft-H2O (7.0 m-H2O)
Max Suction Lift (Dry): 10 ft-H2O (3.0 m-H2O)
Max Suction Lift (Wet): 26 ft-H2O (7.9 m-H2O)
Max Solids: 1/16 in. (1.6 mm)
Avg. Displacement Per Stroke: (0.01 gal / 0.05 L)
Sound Level: 86 dBA with Muffler
Polypropylene
C038-SQP-GGPN-S70 NPT(BSP), Geolast® Diaphragm, Geolast® Ball, Polypropylene Seat, Buna-N O-Ring, Stainless Steel Hardware
C038-SQP-SSPE-S70 NPT(BSP), Santoprene® Diaphragm, Santoprene® Ball, Polypropylene Seat, EPDM O-Ring, Stainless Steel Hardware
C038-SQP-TTPT-S70 NPT(BSP), PTFE Diaphragm, PTFE Ball, Polypropylene Seat, PTFE O-Ring, Stainless Steel Hardware
PVDF
C038-SQK-SSKE-S70 NPT(BSP), Santoprene® Diaphragm, Santoprene® Ball, PVDF Seat, EPDM O-Ring, Stainless Steel Hardware
C038-SQK-TTKV-S70 NPT(BSP), PTFE Diaphragm, PTFE Ball, PVDF Seat, PTFE O-Ring, Stainless Steel Hardware
CONDUCTIVE NYLON
C038-SQY-TT3T-SF0 NPT(BSP), PTFE Diaphragm, PTFE Ball, Stainless Steel Seat, PTFE O-Ring, Stainless Steel Hardware
