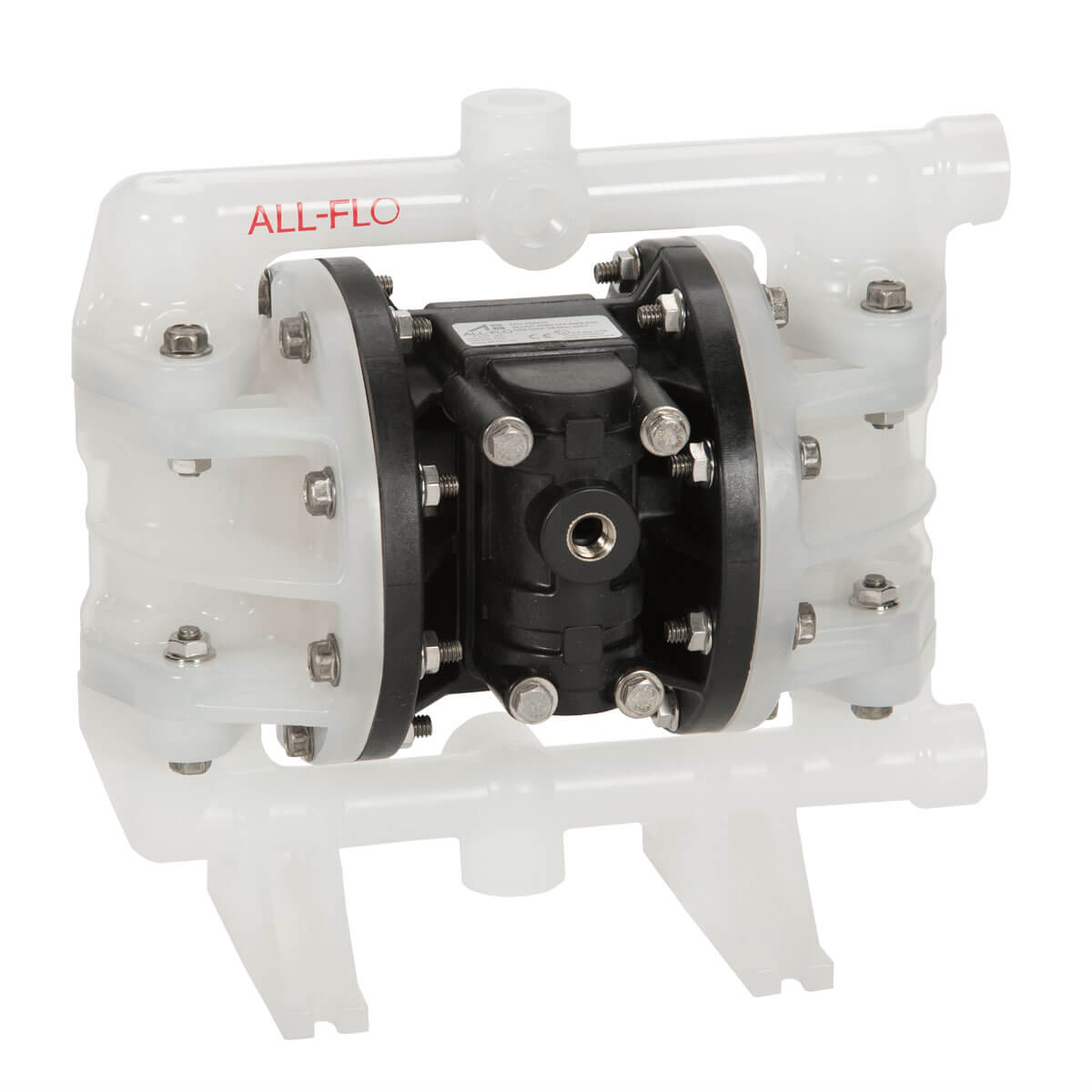

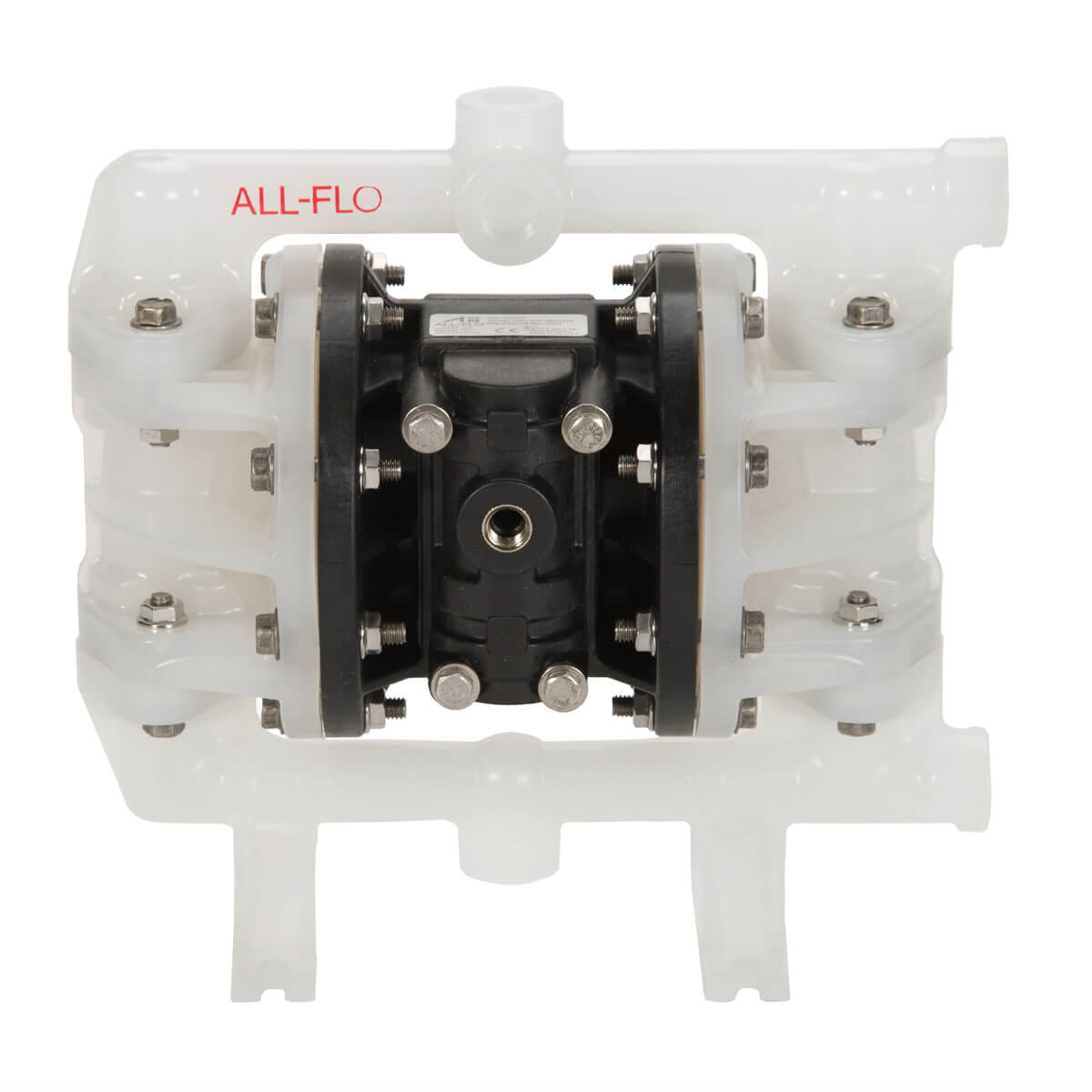

3/4 in. Plastic AODD Pump A075

Air Inlet
  • 1/4" FNPT
Liquid Inlet
  • 3/4"
Liquid Discharge
  • 3/4"
Connection Type
  • FNPT/FBSPT (Threaded)
Max Suction Lift Capability
  • 15 ft-H2O (4.6 m-H2O) Dry
  • 26 ft-H2O (7.9 m-H2O) Wet
Max Flow Rate
  • 17 gpm (64.6 lpm)
Max Pressure
  • 120 psi (8.2 bar)
Max Diameter Solids
  • 1/8" (3.2 mm)
Displacement Per Stroke
  • 0.03 gal (0.10 L)
logo_choice Select Your Pump
  • CE Icon

Specifications

Physical Specifications
Liquid Port Size: 3/4 in.
Liquid Connection Types: FNPT, FBSPT
Standard Suction Port: Right
Standard Discharge Port: Right
Air Inlet Connection Size: 1/4 in. FNPT
Air Exhaust Connection Size: 3/8 in. FNPT
Polypropylene PVDF
Max Height: 11.4 in. (289 mm) 11.4 in. (289 mm)
Max Width: 12.0 in. (306 mm) 12.0 in. (306 mm)
Max Depth: 7.4 in. (187 mm) 7.4 in. (187 mm)
Weight: 9 lbs (4.1 kg) 12 lbs (5.4 kg)
Construction
Wet End: Conductive Nylon, Polypropylene, PVDF
Air End: Glass Filled Polypropylene
Diaphragm: Geolast®, PTFE, Santoprene®, FKM
Balls: Geolast®, PTFE, Santoprene®, FKM
Seats: Polypropylene, PVDF
O-Rings: Buna-N, EPDM, PTFE, FKM
Hardware: PTFE Coated Stainless Steel, Stainless Steel
Muffler: Metal, Plastic

Performance

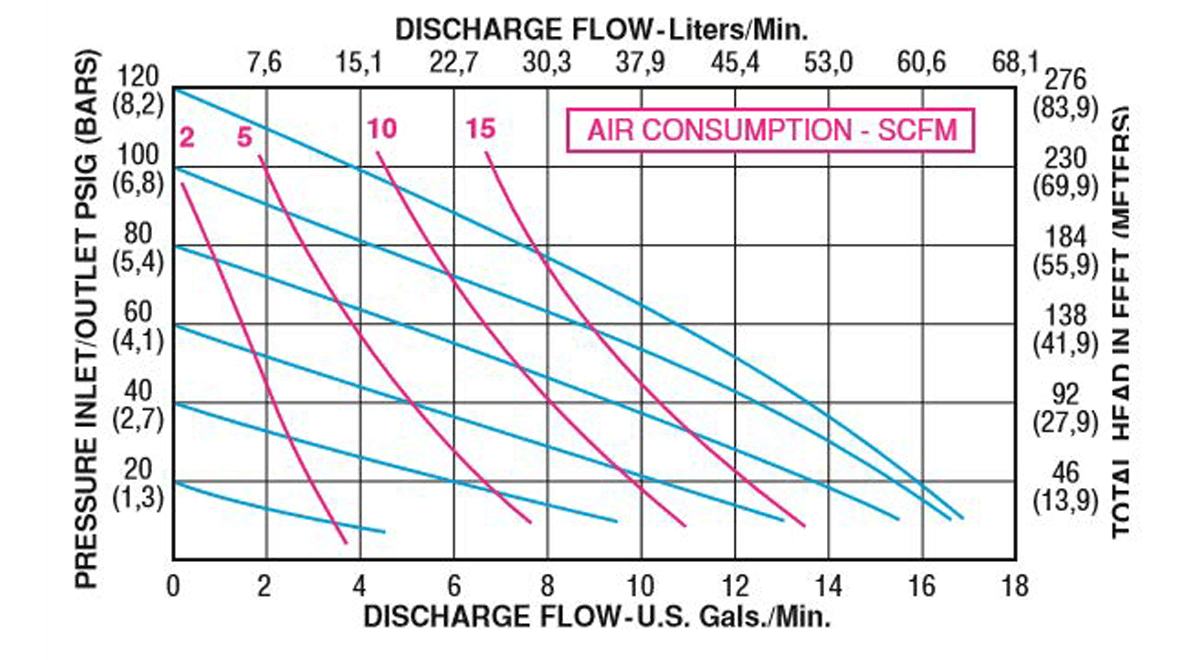

Performance Curve

050-A075-Performance-Curve

Note: Additional performance curves can be found in the download section.

Performance
Max Flow: 17 gpm (64.4 lpm)
Max Air Pressure: 120 psi (8.2 bar)
Max Static Suction Head: 23 ft-H2O (7.0 m-H2O)
Max Suction Lift (Dry): 15 ft-H2O (4.6 m-H2O)
Max Suction Lift (Wet): 26 ft-H2O (7.9 m-H2O)
Max Solids: 1/8 in. (3.2 mm)
Avg. Displacement Per Stroke: (0.03 gal / 0.10 L)
Sound Level: 80 dBA (with Muffler)
Polypropylene
A075-NPP-GGPN-S70 NPT, Geolast® Diaphragm, Geolast® Ball, Polypropylene Seat, Buna-N O-Ring, Stainless Steel Hardware
A075-BPP-GGPN-S70 BSPT, Geolast® Diaphragm, Geolast® Ball, Polypropylene Seat, Buna-N O-Ring, Stainless Steel Hardware
A075-NPP-SSPE-S70 NPT, Santoprene® Diaphragm, Santoprene® Ball, Polypropylene Seat, EPDM O-Ring, Stainless Steel Hardware
A075-BPP-SSPE-S70 BSPT, Santoprene® Diaphragm, Santoprene® Ball, Polypropylene Seat, EPDM O-Ring, Stainless Steel Hardware
A075-NPP-TTPT-S70 NPT, PTFE Diaphragm, PTFE Ball, Polypropylene Seat, PTFE O-Ring, Stainless Steel Hardware
A075-BPP-TTPT-S70 BSPT, PTFE Diaphragm, PTFE Ball, Polypropylene Seat, PTFE O-Ring, Stainless Steel Hardware
PVDF
A075-NPK-SSKE-S70 NPT, Santoprene® Diaphragm, Santoprene® Ball, PVDF Seat, EPDM O-Ring, Stainless Steel Hardware
A075-BPK-SSKE-S70 BSPT, Santoprene® Diaphragm, Santoprene® Ball, PVDF Seat, EPDM O-Ring, Stainless Steel Hardware
A075-NPK-TTKT-S70 NPT, PTFE Diaphragm, PTFE Ball, PVDF Seat, PTFE O-Ring, Stainless Steel Hardware
A075-BPK-TTKT-S70 BSPT, PTFE Diaphragm, PTFE Ball, PVDF Seat, PTFE O-Ring, Stainless Steel Hardware
CONDUCTIVE NYLON
A075-NPY-TT3T-S70 NPT, PTFE Diaphragm, PTFE Ball, Stainless Steel Seat, PTFE O-Ring, Stainless Steel Hardware
A075-BPY-TTYT-S70 BSPT, PTFE Diaphragm, PTFE Ball, Nylon Seat, PTFE O-Ring, Stainless Steel Hardware

Downloads

IOMs

A075 Plastic IOM
Size: 3/4 in. | Code: ALF-11040-E-02

Performance Curves

A050-A075 Plastic Performance Curve
Size: 1/2 & 3/4 in.

Spec Sheets

SPEC SHEET A075 – 3/4 in. Plastic Pump
Code: SPSHT-A075P-01

Dimensional Drawings

A075 Plastic 2D Drawing
Size: 3/4 in.

3D Models

A075 Plastic 3D Drawing
Size: 3/4 in.

Exploded Views

A050-A075 Bolted Plastic Exploded Views
Size: 1/2 & 3/4 in.
