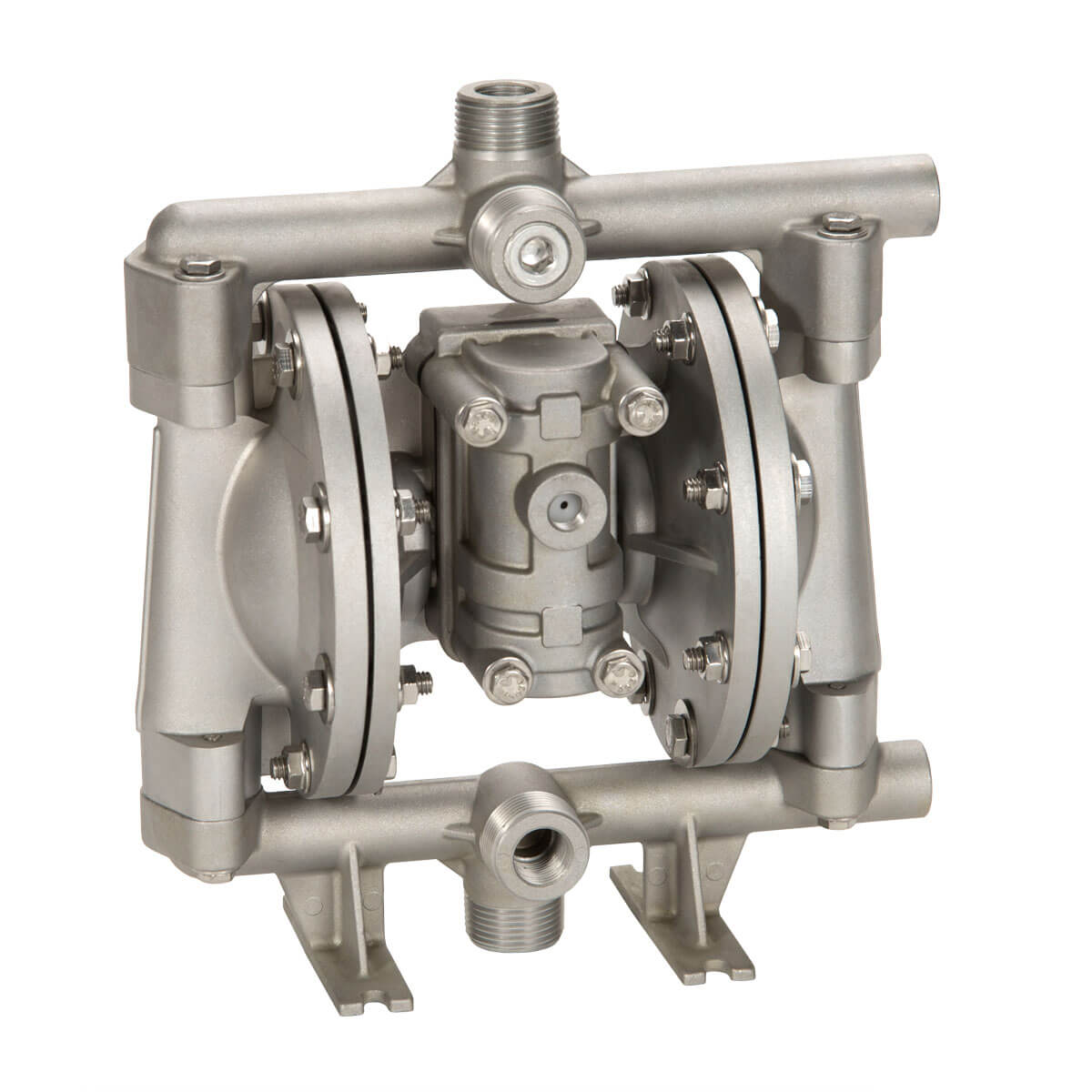

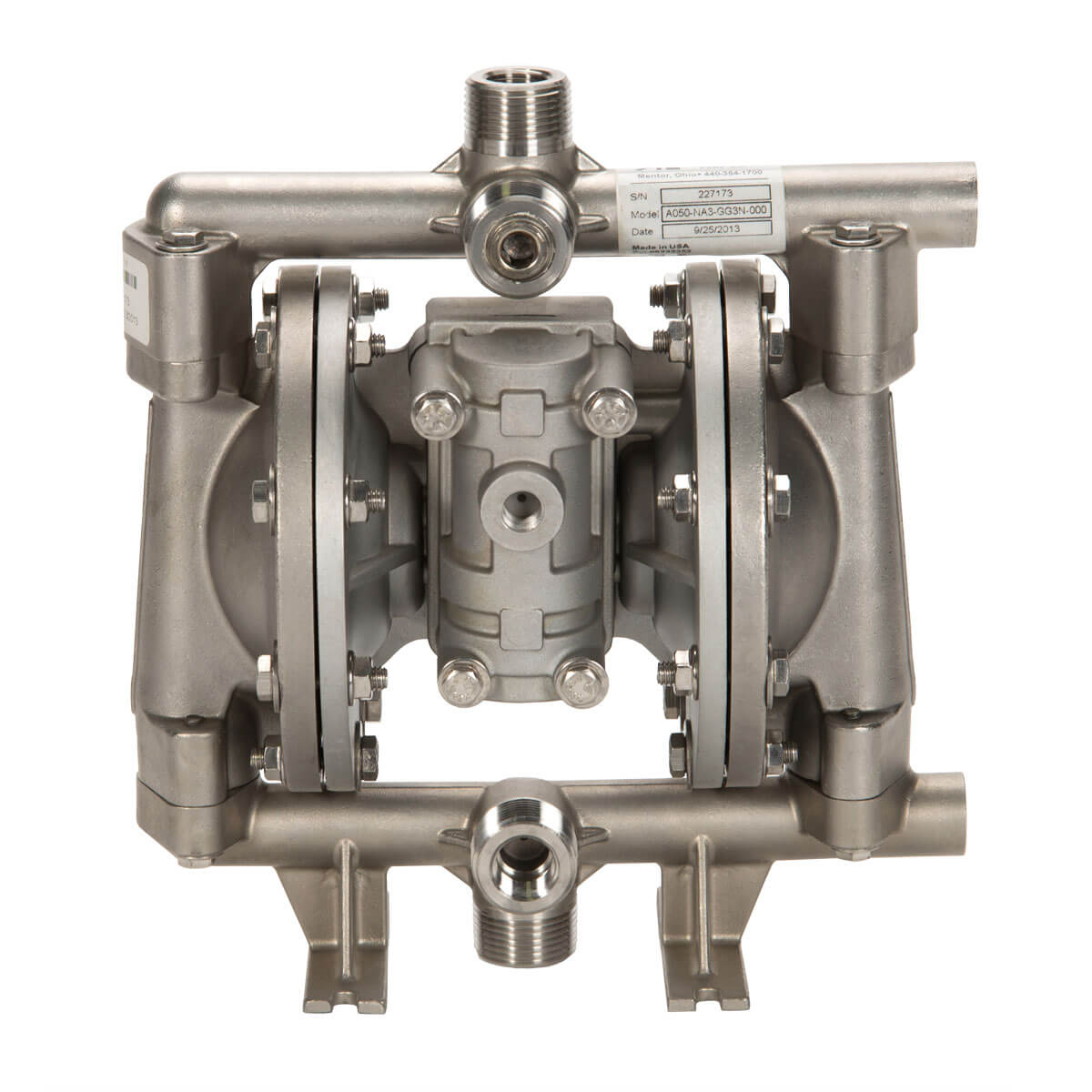

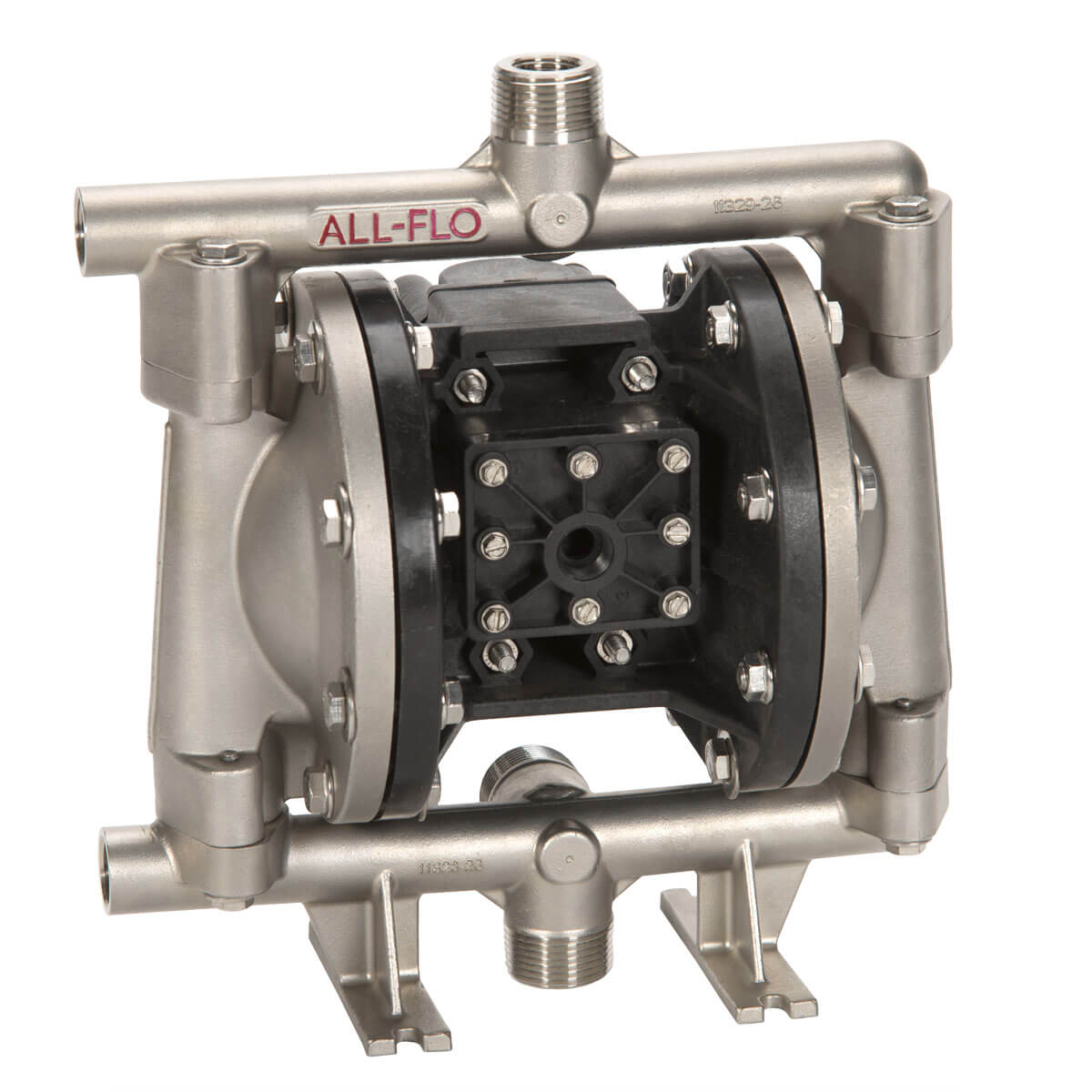

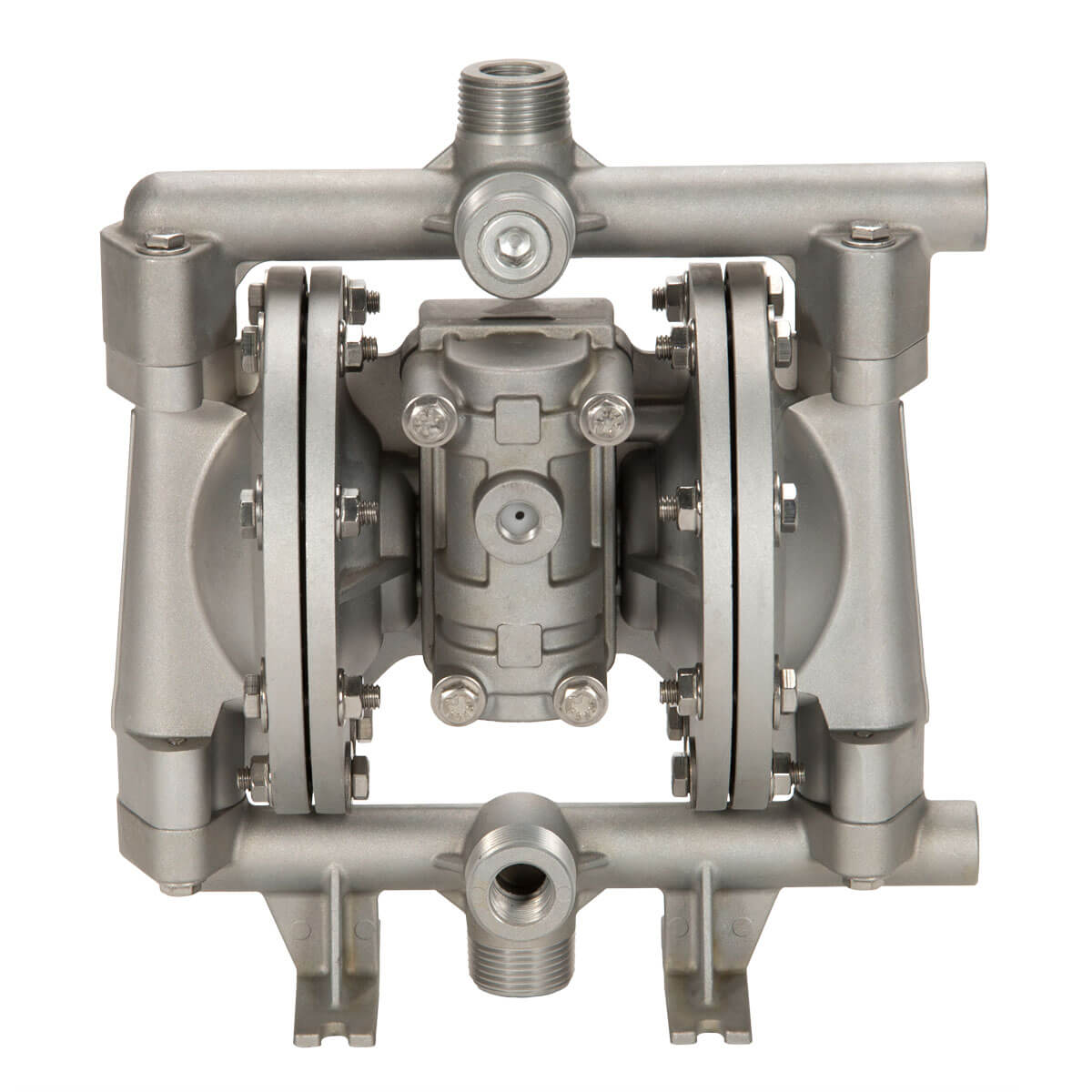

All-Flo AODD Double Diaphragm Pump - Metal - 1/2 in. - A050 - Stainless Steel All-Flo AODD Double Diaphragm Pump - Metal - 1/2 in. - A050 - Plastic Center Section All-Flo AODD Double Diaphragm Pump - Metal - 1/2 in. - A050 All-Flo AODD Double Diaphragm Pump - Metal - 1/2 in. - A050 - Angled All-Flo AODD Double Diaphragm Pump - Metal - 1/2 in. - A050 - Plastic Center Section - Angled All-Flo AODD Double Diaphragm Pump - Metal - 1/2 in. - A050 - Stainless Steel - Angled

3/4 in. Metal AODD Pump  A075

Air Inlet
  • 1/4" FNPT
Liquid Inlet
  • 3/4"
Liquid Discharge
  • 3/4"
Connection Type
  • FNPT/FBSPT (Threaded)
Max Suction Lift Capability
  • 15 ft-H2O (4.6 m-H2O) Dry
  • 31 ft-H2O (9.4 m-H2O) Wet
Max Flow Rate
  • 15 gpm (56.8 lpm)
Max Pressure
  • 120 psi (8.2 bar)
Max Diameter Solids
  • 1/8" (3.2 mm)
Displacement Per Stroke
  • 0.03 gal (0.10 L)
logo_choice Select Your Pump
  • CE Icon
  • ATEX Icon

Specifications

Physical Specifications
Liquid Port Size: 3/4 in. FNPT
Liquid Connection Types: FNPT/FBSPT (Threaded)
Standard Suction Port: Center Front
Standard Discharge Port: Center Front
Air Inlet Connection Size: 1/4 in. FNPT
Air Exhaust Connection Size: 3/8 in. FNPT
Aluminum Stainless Steel
Max Height: 11.2 in. (284 mm) 11.2 in. (284 mm)
Max Width: 10.3 in. (262 mm) 10.3 in. (262 mm)
Max Depth: 6.4 in. (163 mm) 6.4 in. (163 mm)
Weight: 10 lbs (4.5 kg) 20 lbs (9.1 kg)
Construction
Wet End: Aluminum, Stainless Steel
Air End: Aluminum, Glass Filled Polypropylene
Diaphragm: Geolast®, PTFE, Santoprene®, FKM
Balls: Geolast®, PTFE, Santoprene®, Stainless Steel, FKM
Seats: Aluminum, Nylon, Polypropylene, Stainless Steel
O-Rings: Buna-N, EPDM, PTFE, FKM
Hardware: Stainless Steel, Zinc Plated Steel
Muffler: Metal, Plastic

Performance

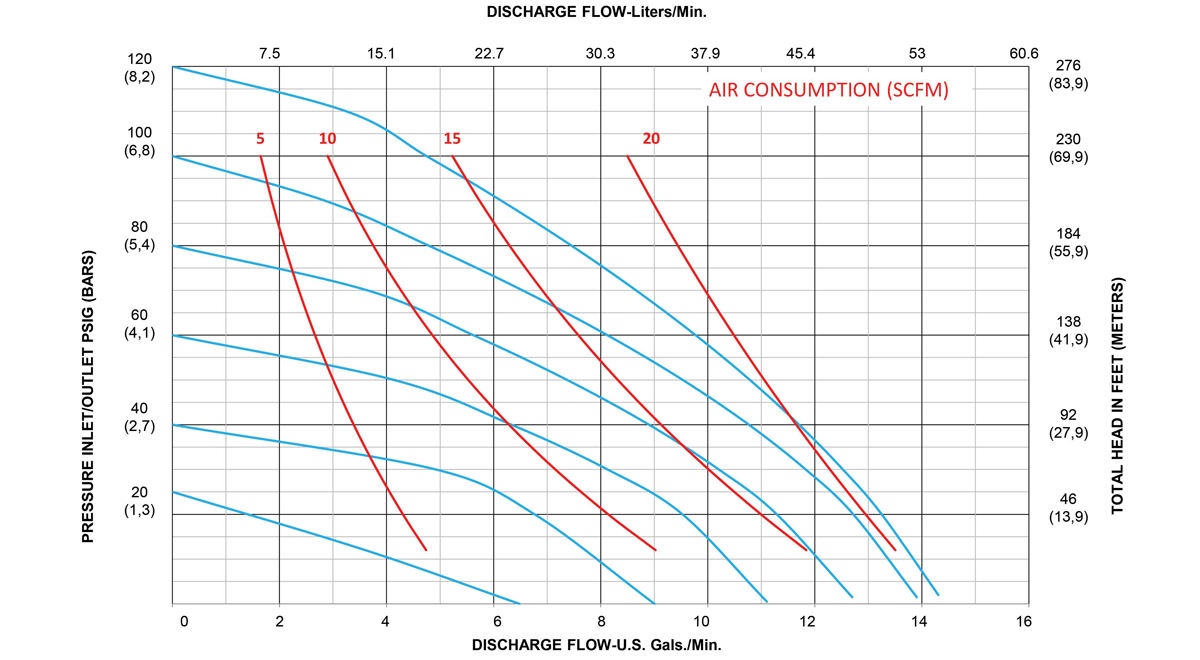

Performance Curve

A050-Performance-Curves_Rubber

Note: Additional performance curves can be found in the download section.

Performance
Max Flow: 15 gpm (56.8 lpm)
Max Air Pressure: 120 psi (8.3 bar)
Max Static Suction Head: 3/4 in.
Max Suction Lift (Dry): 15 ft-H2O (4.6 m-H2O) Dry
Max Suction Lift (Wet): 31 ft-H2O (9.4 m-H2O) Wet
Max Solids: 1/8 in. (3.2 mm)
Avg. Displacement Per Stroke: 0.03 gal (0.10 L)
Sound Level: 80 dBA (with Muffler)
ALUMINUM
A075-NAA-GTPN-A30 NPT, Geolast® Diaphragm, PTFE Ball, Polypropylene Seat, Buna-N O-Ring, Zinc Plated Hardware
A075-BAA-GTPN-A30 BSPT, Geolast® Diaphragm, PTFE Ball, Polypropylene Seat, Buna-N O-Ring, Zinc Plated Hardware
A075-NAA-SSPE-A30 NPT, Santoprene® Diaphragm, Santoprene® Ball, Polypropylene Seat, EPDM O-Ring, Zinc Plated Hardware
A075-BAA-SSPE-A30 BSPT, Santoprene® Diaphragm, Santoprene® Ball, Polypropylene Seat, EPDM O-Ring, Zinc Plated Hardware
A075-NAA-TTYT-A30 NPT, PTFE Diaphragm, PTFE Ball, Nylon Steel Seat, PTFE O-Ring, Zinc Plated Hardware
A075-BAA-TTYT-A30 BSPT, PTFE Diaphragm, PTFE Ball, Nylon Seat, PTFE O-Ring, Zinc Plated Hardware
STAINLESS STEEL
A075-NA3-GT3N-A70 NPT, Geolast® Diaphragm, PTFE Ball, Stainless Steel Seat, Buna-N O-Ring, Stainless Steel Hardware
A075-BP3-GT3N-A70 BSPT, Geolast® Diaphragm, PTFE Ball, Stainless Steel Seat, Buna-N O-Ring, Stainless Steel Hardware
A075-NP3-SS3E-A70 NPT, Santoprene® Diaphragm, Santoprene® Ball, Stainless Steel Seat, EPDM O-Ring, Stainless Steel Hardware
A075-BP3-SS3E-A70 BSPT, Santoprene® Diaphragm, Santoprene® Ball, Stainless Steel Seat, EPDM, Stainless Steel Hardware
A075-NP3-TT3T-A70 NPT, PTFE Diaphragm, PTFE Ball, Stainless Steel Seat, PTFE O-Ring, Stainless Steel Hardware
A075-BP3-TT3T-A70 BSPT, PTFE Diaphragm, PTFE Ball, Stainless Steel Seat, PTFE O-Ring, Stainless Steel Hardware

Downloads

IOMs

A075 Metal IOM
Size: 3/4 in. | Code: ALF-12040-E-02

Performance Curves

A075 Metal Performance Curves
Size: 3/4 in.

Spec Sheets

SPEC SHEET A075 – 3/4 in. Metal Pump
Code: SPSHT-A075M-01

Dimensional Drawings

A075 Metal 2D Drawing
Size: 3/4 in.

3D Models

A075 Metal 3D Drawing
Size: 3/4 in.

Exploded Views

A075 Metal Exploded Views
Size: 3/4 in.
