25 mm (1") Pro-Flo® SHIFT Series Bolted Metal AODD Pump PS220/PS230

AIR INLET
  • 1/2" FNPT
LIQUID INLET
  • 25 mm (1")
LIQUID DISCHARGE
  • 25 mm (1")
CONNECTION TYPE
  • NPT/BSPT (Threaded)
  • DIN/ANSI (Flanged)
MAX SUCTION LIFT CAPABILITY
  • Rubber – 6.9 m (22.7') Dry, 9.0 m (29.5') Wet
  • TPE – 5.9 m (19.3') Dry, 9.0 m (29.5') Wet
  • Full-Stroke PTFE – 5.2 m (17.0') Dry, 9.0 m (29.5') Wet
MAX FLOW RATE
  • Rubber – 204 lpm (54 gpm)
  • TPE – 212 lpm (56 gpm)
  • Full-Stroke PTFE – 197 lpm (52 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • 6.4 mm (1/4")
DISPLACEMENT PER STROKE *
  • Rubber – 0.30 L (0.08 gal)
  • TPE – 0.26 L (0.07 gal)
  • Full-Stroke PTFE – 0.30 L (0.08 gal)
    • * 1 cycle = 2 strokes
Order Online
  • icon_cert-CE
  • icon_cert-Ex

Features and Benefits

The Wilden® bolted metal pump, also known as FIT, sets the new standard for pump performance. Featuring an enhanced flow path design, Wilden's bolted-construction pumps offer improved flow rates (up to 35% over competitive models) as well as improved diaphragm life. Wilden's bolted pumps are also designed for superior containment and have the exact bolt down footprint and inlet/discharge connections as Wilden clamped pumps for easy replacement.

  • NPT or BSPT threaded inlet/discharge liquid connections (PS220)
  • DIN or ANSI flanged inlet/discharge liquid connections (PS230) that don't require welding or nipple attachment
  • Featuring the energy-efficient Pro-Flo® SHIFT ADS
  • Greater flow - more gallons pumped per SCFM
  • Reduced air consumption and kilowatt usage
  • Largest chemical compatibilities
  • Portable and submersible
  • Large-solids passage
  • High suction lift
  • Ease of operation and maintenance
  • Flexible internal adjustment on manifolds
  • Increased on/off reliability
  • Longest Mean Time Between Repair (MTBR)

Performance and Specifications

Dimensions

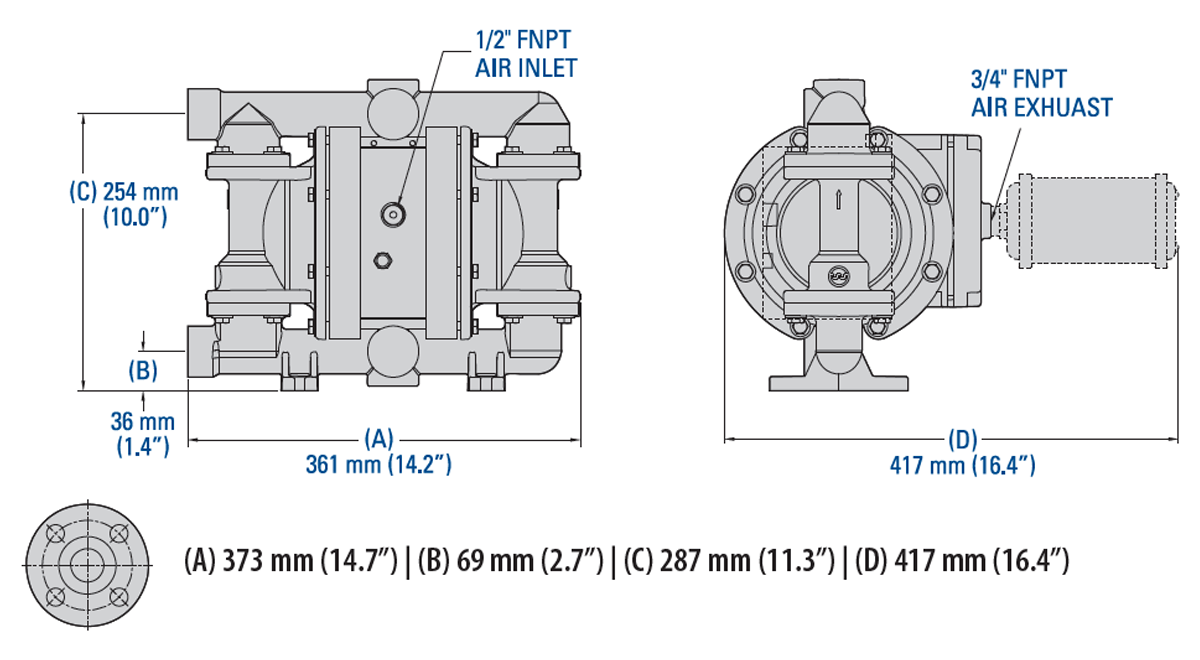

Dim-PS220-230_2 mm-1in-PF-SBMP

Note: Dimensions vary by material and connection. For additional information, please refer to the PS220/PS230 Metal Manual.

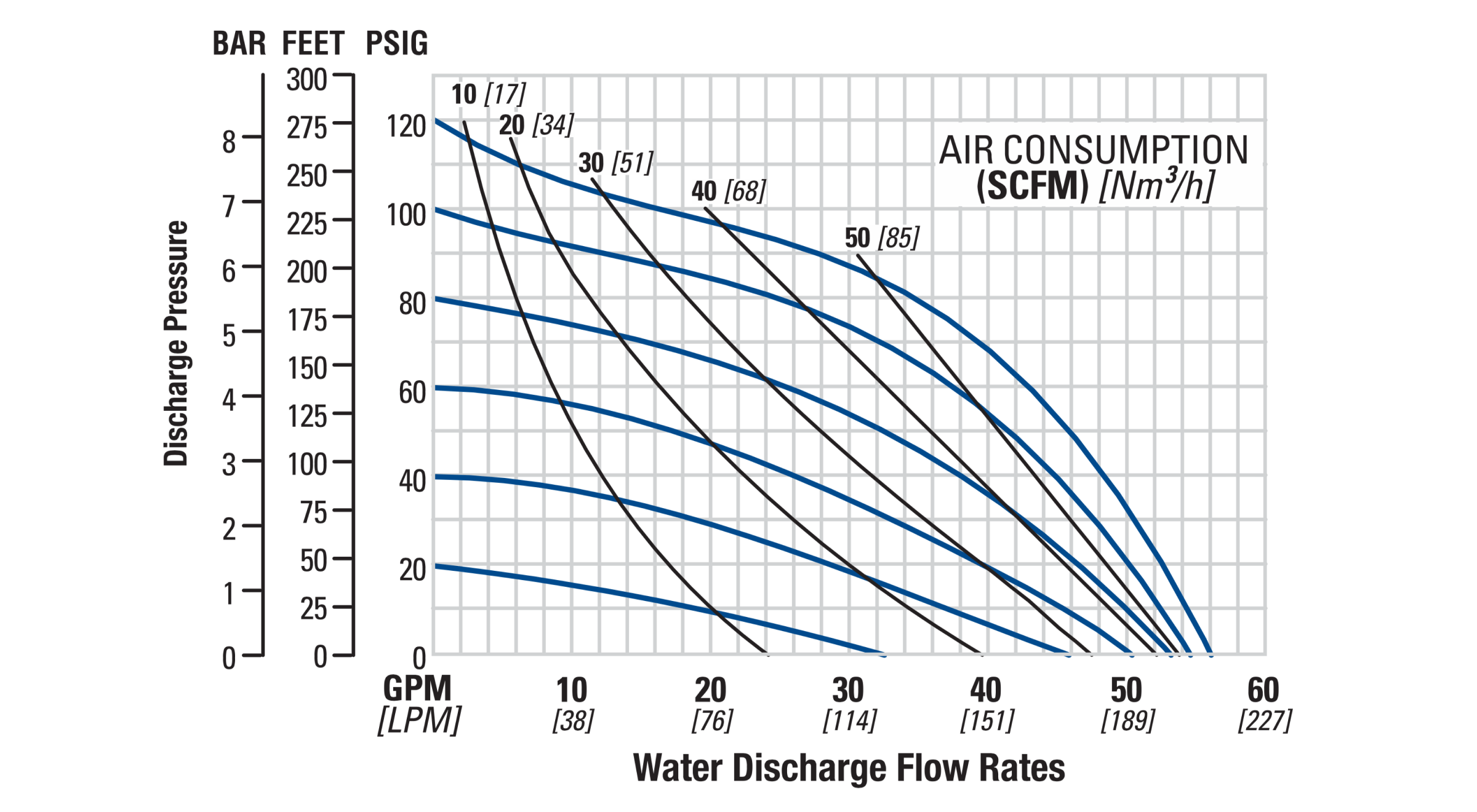

Flow Curve – TPE-Fitted

Flo-P200-25mm1in-BPP

Note: Additional performance curves can be found in the PS220/PS230 Metal Manual.

AIR INLET
  • 1/2" FNPT
LIQUID INLET
  • 25 mm (1")
LIQUID DISCHARGE
  • 25 mm (1")
CONNECTION TYPE
  • NPT/BSPT (Threaded)
  • DIN/ANSI (Flanged)
MAX FLOW RATE
  • Rubber – 204 lpm (54 gpm)
  • TPE – 212 lpm (56 gpm)
  • Full-Stroke PTFE – 197 lpm (52 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • 6.4 mm (1/4")
MAX SUCTION LIFT CAPABILITY
  • Rubber – 6.9 m (22.7') Dry, 9.0 m (29.5') Wet
  • TPE – 5.9 m (19.3') Dry, 9.0 m (29.5') Wet
  • Full-Stroke PTFE – 5.2 m (17.0') Dry, 9.0 m (29.5') Wet
DISPLACEMENT PER STROKE *
  • Rubber – 0.30 L (0.08 gal)
  • TPE – 0.26 L (0.07 gal)
  • Full-Stroke PTFE – 0.30 L (0.08 gal)
    • * 1 cycle = 2 strokes

Wetted Housings

Material Ship Weight
Aluminum 19 kg (41 lb)
Ductile Iron 29 kg (64 lb)
Stainless Steel 31 kg (68 lb)
Alloy C 36 kg (80 lb)

Non-Wetted Housings

Description Material
Center Section Aluminum
Air Valve Aluminum

Elastomer Options

Material Temperature Limits
Buna-N -12°C to 82°C (10°F to 180°F)
EPDM -51°C to 138°C (-60°F to 280°F)
FKM -40°C to 177°C (-40°F to 350°F)
Geolast® -40°C to 82°C (-40°F to 180°F)
Neoprene -18°C to 93°C (0°F to 200°F)
PTFE* 4°C to 104°C (40°F to 220°F)
Polyurethane -12°C to 66°C (10°F to 150°F)
Saniflex™ -29°C to 104°C (-20°F to 220°F)
Wil-Flex™ -40°C to 107°C (-40°F to 225°F)

* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
