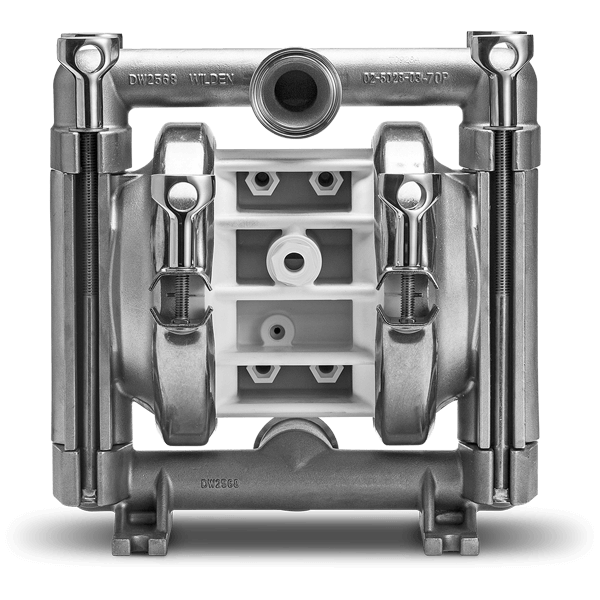

25 mm (1") Pro-Flo®Saniflo™ FDA Series Clamped Metal AODD Pump P2

Saniflo™ FDA Series pumps are designed for standard food applications that don’t require the Hygienic™ Series (HS) design or clean-in-place (CIP) capability. They are well suited for sanitary applications moving high-acid, high-sugar and high-fat media. With simple installation and robust design, FDA pumps comply with FDA, CE, EC 1935/2004 and ATEX requirements.

• Tri-Clamp® connections with wingnut clamped design
• Quick breakdown/reassembly for cleaning
• Shear sensitive
• Robust durability
• Straight flow-through design

EOMs

Flyers

Spec Sheets

Brochures

Dimensional Drawings

3D Models

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the P2 Metal Manual.

Flow Curves – TPE-Fitted

Note: Additional performance curves can be found in the P2 Metal Manual.

AIR INLET

• 1/4" FNPT

LIQUID INLET

• 38 mm (1-1/2")

LIQUID DISCHARGE

• 38 mm (1-1/2")

CONNECTION TYPE

• Tri-Clamp®

MAX FLOW RATE

• Rubber – 172 lpm (45.5 gpm)
• TPE – 171 lpm (45.2 gpm)
• Full-Stroke PTFE – 167 lpm (44.1 gpm)
• Reduced-Stroke PTFE – 155 lpm (41 gpm)

MAX PRESSURE

• 8.6 bar (125 psi)

MAXIMUM DIAMETER SOLIDS

• 3.2mm (1/8")

MAX SUCTION LIFT CAPABILITY

• Rubber – 5.2 m (17.0') Dry, 9.0 m (29.5') Wet
• TPE – 7.6 m (25.0') Dry, 9.0 m (29.5') Wet
• Full-Stroke PTFE – 4.7 m (15.3') Dry, 9.0 m (29.5') Wet)
• Reduced-Stroke PTFE – 2.8 m (9.1') Dry, 9.0 m (29.5') Wet

DISPLACEMENT PER STROKE ^*

• Rubber – 0.3 L (0.08 gal)
• TPE – 0.3 L (0.08 gal)
• Full-Stroke PTFE – 0.3 L (0.08 gal)
• Reduced-Stroke PTFE – 0.3 L (0.08 gal)
^* 1 cycle = 2 strokes

Wetted Housings

Non-Wetted Housings
