Wilden AODD Double Diaphragm Pump - 25 mm (1 in.) - Pro-Flo Clamped Plastic - P2

25 mm (1") Pro-Flo® Series Clamped Plastic AODD PumpP2

AIR INLET
  • 1/4" FNPT
LIQUID INLET
  • 25 mm (1")
LIQUID DISCHARGE
  • 25 mm (1")
CONNECTION TYPE
  • DIN/ANSI (Flanged)
MAX SUCTION LIFT CAPABILITY
  • Rubber – 5.5 m (18.0') Dry, 8.8 m (29.0') Wet
  • TPE – 5.5 m (18.0') Dry, 8.8 m (29.0') Wet
  • Full-Stroke PTFE – 4.1 m (13.6') Dry, 8.6 m (28.4') Wet
  • Reduced-Stroke PTFE – 3.4 m (11') Dry, 8.8 m (29') Wet
MAX FLOW RATE
  • Rubber – 140 lpm (37 gpm)
  • TPE – 140 lpm (37 gpm)
  • Full-Stroke PTFE – 139 lpm (36.8 gpm)
  • Reduced-Stroke PTFE – 132 lpm (35 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • 3.2 mm (1/8'')
DISPLACEMENT PER STROKE *
  • Rubber – 0.31 L (0.08 gal)
  • TPE – 0.39 L (0.10 gal)
  • Full-Stroke PTFE – 0.6 L (0.15 gal)
  • Reduced-Stroke PTFE – 0.23 L (0.06 gal)
    • * 1 cycle = 2 strokes
Order Online
  • icon_cert-CE

Features and Benefits

When Jim Wilden first added a plastic pump series to his product portfolio, he designed it with what he knew best: a clamped pump. Incorporating the same benefits as a clamped metal pump, these plastic versions offer a simple, rugged design that is ideally suited for chemical applications. Engineered with ease of maintenance in mind, clamped plastic pumps are simple to install and are made for quick serviceability, allowing the pump to be taken apart and put back together with only a single tool. Proven by the test of time, hundreds of thousands of Jim Wilden's clamped plastic pumps have pumped billions of gallons of fluid on an annual basis.

  • DIN and ANSI flanged inlet/discharge liquid connections
  • Rotatable inlet and discharge for flexibility
  • Decades of proven performance
  • Clamped connections for faster maintenance
  • Low cost
  • Simple installation
  • Ease of operation and maintenance

Performance and Specifications

Dimensions

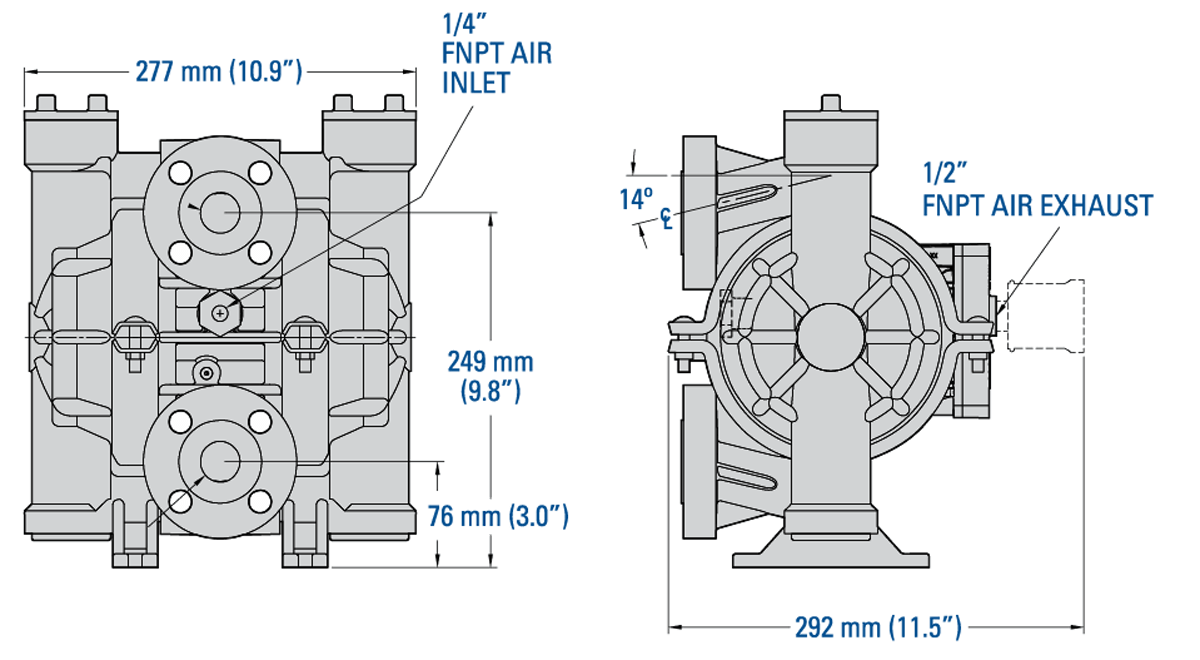

Dim-P2-25mm1in-CPP

Note: Dimensions vary by material and connection. For additional information, please refer to the P2 Plastic Manual.

Flow Curve – TPE-Fitted

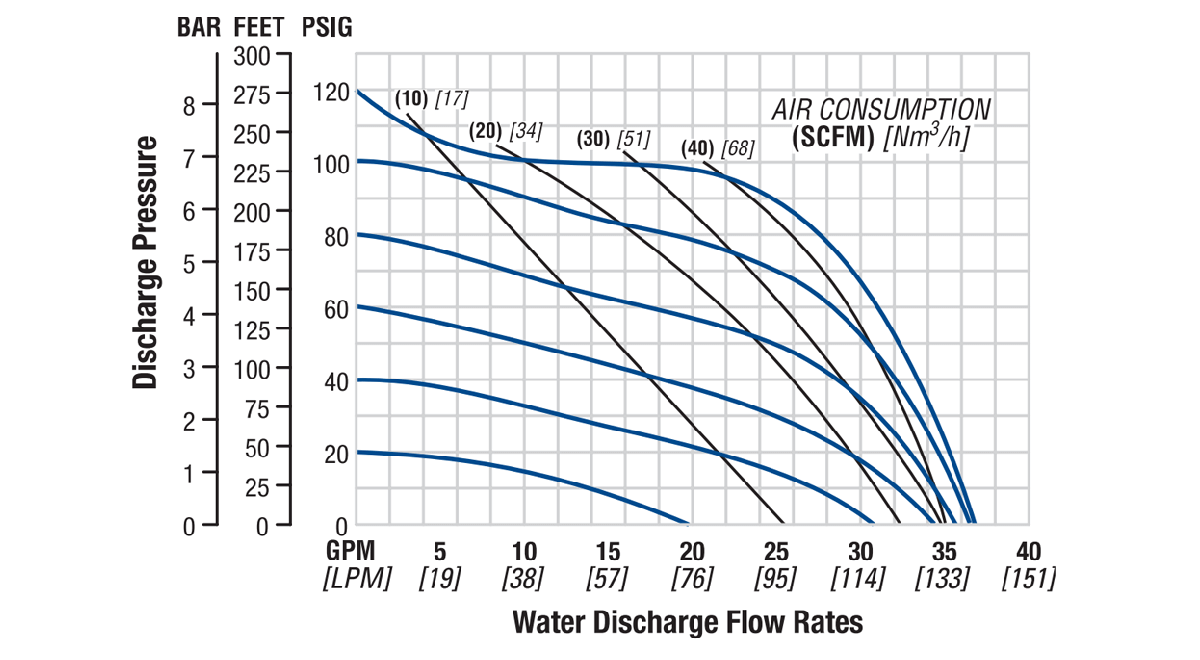

Flo-P2-25mm1in-CPP

Note: Additional performance curves can be found in the P2 Plastic Manual.

AIR INLET
  • 1/4" FNPT
LIQUID INLET
  • 25 mm (1")
LIQUID DISCHARGE
  • 25 mm (1")
CONNECTION TYPE
  • DIN/ANSI (Flanged)
MAX FLOW RATE
  • Rubber – 140 lpm (37 gpm)
  • TPE – 140 lpm (37 gpm)
  • Full-Stroke PTFE – 139 lpm (36.8 gpm)
  • Reduced-Stroke PTFE – 132 lpm (35 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • 3.2 mm (1/8'')
MAX SUCTION LIFT CAPABILITY
  • Rubber – 5.5 m (18.0') Dry, 8.8 m (29.0') Wet
  • TPE – 5.5 m (18.0') Dry, 8.8 m (29.0') Wet
  • Full-Stroke PTFE – 4.1 m (13.6') Dry, 8.6 m (28.4') Wet
  • Reduced-Stroke PTFE – 3.4 m (11') Dry, 8.8 m (29') Wet
DISPLACEMENT PER STROKE *
  • Rubber – 0.31 L (0.08 gal)
  • TPE – 0.39 L (0.10 gal)
  • Full-Stroke PTFE – 0.6 L (0.15 gal)
  • Reduced-Stroke PTFE – 0.23 L (0.06 gal)
    • * 1 cycle = 2 strokes

Wetted Housings

Material Ship Wt
Polypropylene 8 kg (18 lb)
PVDF 10 kg (23 lb)

Non-wetted Housings

Description Material
Center Section Polypropylene, Acetal
Air Valve Polypropylene, Acetal

Elastomer Options

Material Temperature Limits
Buna-N -12°C to 82°C (10°F to 180°F)
EPDM -51°C to 138°C (-60°F to 280°F)
FKM -40°C to 177°C (-40°F to 350°F)
Neoprene -18°C to 93°C (0°F to 200°F)
PTFE* 4°C to 104°C (40°F to 220°F)
Polyurethane -12°C to 66°C (10°F to 150°F)
Saniflex™ -29°C to 104°C (-20°F to 220°F)
Wil-Flex™ -40°C to 107°C (-40°F to 225°F)

* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
