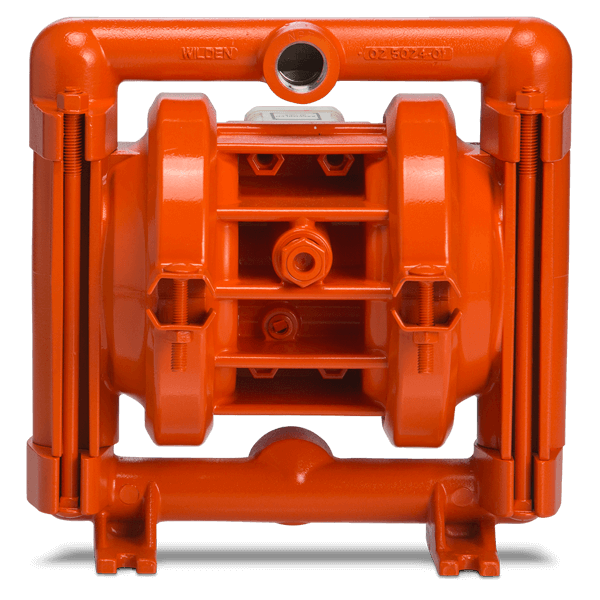

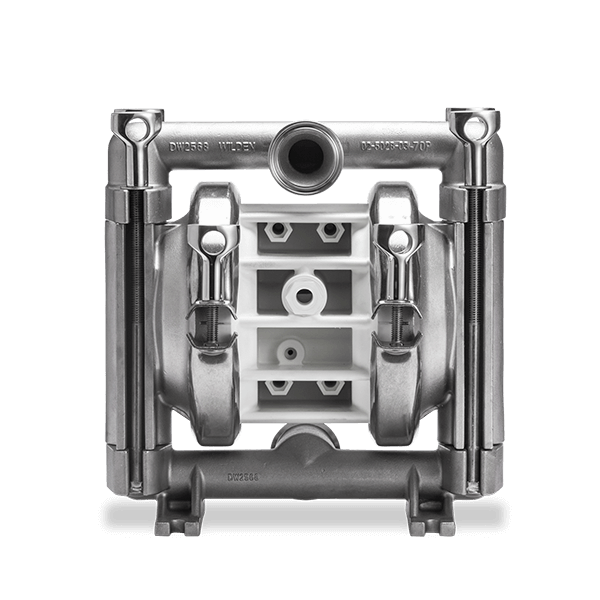

Wilden AODD Double Diaphragm Pump - 25 mm (1 in.) - Pro-Flo Clamped Aluminum - P2 Wilden AODD Double Diaphragm Pump - 25 mm (1 in.) - Pro-Flo Clamped Stainless Steel - P2

25 mm (1") Pro-Flo® Series Clamped Metal AODD Pump P2

AIR INLET
  • 1/4" FNPT
LIQUID INLET
  • 25 mm (1")
LIQUID DISCHARGE
  • 19 mm (3/4")
CONNECTION TYPE
  • NPT/BSPT (Threaded)
MAX SUCTION LIFT CAPABILITY
  • Rubber – 5.2 m (17.0') Dry, 9.0 m (29.5') Wet
  • TPE – 7.6 m (25.0') Dry, 9.0 m (29.5') Wet
  • Full-Stroke PTFE – 4.7 m (15.3') Dry, 9.0 m (29.5') Wet
  • Reduced-Stroke PTFE – 2.8 m (9.1') Dry, 9.0 m (29.5') Wet
MAX FLOW RATE
  • Rubber – 172 lpm (45.5 gpm)
  • TPE – 171 lpm (45.2 gpm)
  • Full-Stroke PTFE – 167 lpm (44.1 gpm)
  • Reduced-Stroke PTFE – 155 lpm (41 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • 3.2 mm (1/8'')
DISPLACEMENT PER STROKE *
  • Rubber – 0.3 L (0.08 gal)
  • TPE – 0.3 L (0.08 gal)
  • Full-Stroke PTFE – 0.3 L (0.08 gal)
  • Reduced-Stroke PTFE – 0.3 L (0.08 gal)
    • * 1 cycle = 2 strokes
Order Online
  • icon_cert-CE
  • icon_cert-Ex

Features and Benefits

Featuring the original air-operated double-diaphragm pump design by Jim Wilden, clamped metal pumps offer a simple, rugged design for general industrial applications. Designed with ease of maintenance in mind, clamped pumps are simple to install and are made for quick serviceability, allowing the pump to be taken apart and put back together with only a single tool. Proven by the test of time, hundreds of thousands of Jim Wilden's clamped pumps have pumped billions of gallons of fluid on an annual basis.

  • NPT and BSP threaded inlet/discharge liquid connections for quick disconnect/connect
  • Decades of proven performance
  • Clamped connections for faster maintenance
  • Low cost
  • Simple installation
  • Ease of operation and maintenance

Downloads

EOMs

25 mm (1") Pro-Flo Clamped Metal Pump
Model: P2 | Code: WIL-10181-E-09

Spec Sheets

SPEC SHEET 25 mm (1") Pro-Flo Metal Pump
Model: P2 | Code: WIL-10181-T-01

Performance and Specifications

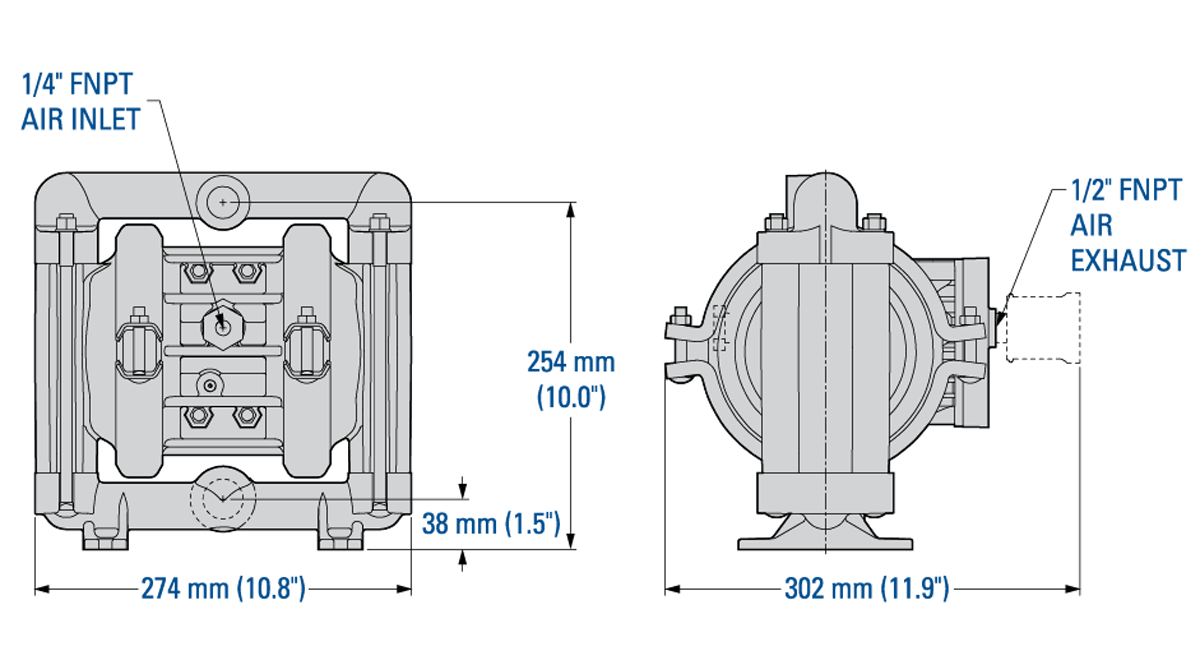

Dimensions

Dim-P2-25mm1in-CMP

Note: Dimensions vary by material and connection. For additional information, please refer to the P2 Metal Manual.

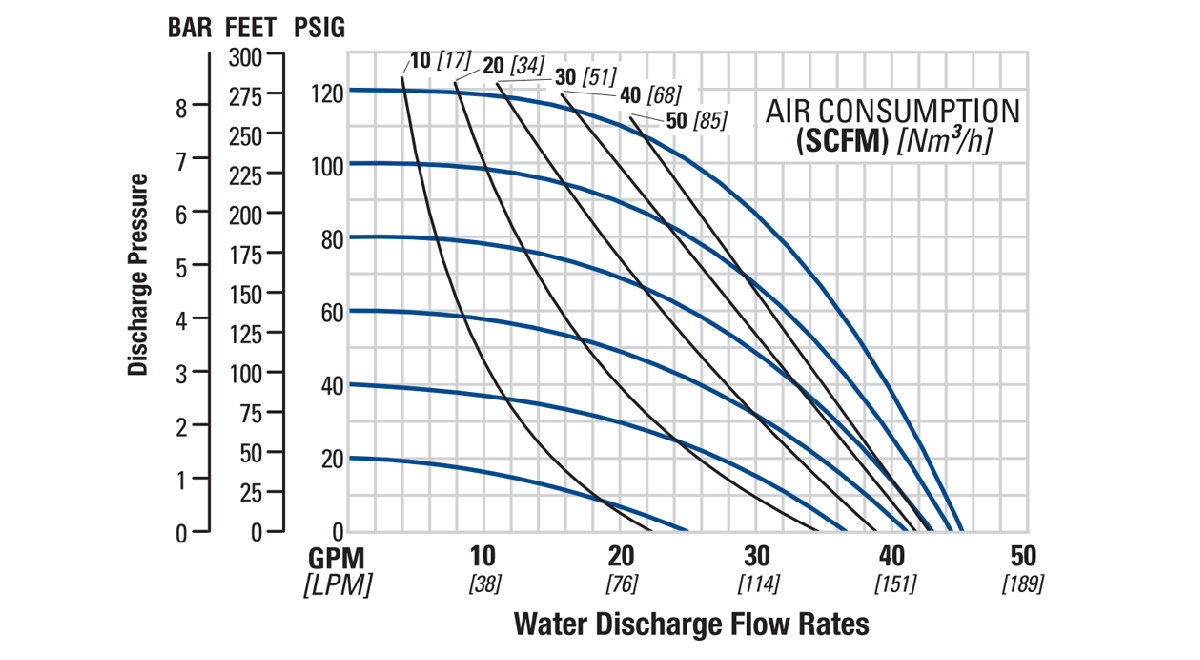

Flow Curve – TPE-Fitted

Flo-P2-25mm1in-CMP

Note: Additional performance curves can be found in the P2 Metal Manual.

AIR INLET
  • 1/4" FNPT
LIQUID INLET
  • 25 mm (1")
LIQUID DISCHARGE
  • 19 mm (3/4")
CONNECTION TYPE
  • NPT/BSPT (Threaded)
MAX FLOW RATE
  • Rubber – 172 lpm (45.5 gpm)
  • TPE – 171 lpm (45.2 gpm)
  • Full-Stroke PTFE – 167 lpm (44.1 gpm)
  • Reduced-Stroke PTFE – 155 lpm (41 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • 3.2 mm (1/8'')
MAX SUCTION LIFT CAPABILITY
  • Rubber – 5.2 m (17.0') Dry, 9.0 m (29.5') Wet
  • TPE – 7.6 m (25.0') Dry, 9.0 m (29.5') Wet
  • Full-Stroke PTFE – 4.7 m (15.3') Dry, 9.0 m (29.5') Wet
  • Reduced-Stroke PTFE – 2.8 m (9.1') Dry, 9.0 m (29.5') Wet
DISPLACEMENT PER STROKE *
  • Rubber – 0.3 L (0.08 gal)
  • TPE – 0.3 L (0.08 gal)
  • Full-Stroke PTFE – 0.3 L (0.08 gal)
  • Reduced-Stroke PTFE – 0.3 L (0.08 gal)
    • * 1 cycle = 2 strokes

Wetted Housings

Material Ship Weight
Aluminum 9 kg (20 lb)
Stainless Steel 17 kg (37 lb)

Non-Wetted Housings

Description Material
Center Section Polypropylene, Acetal
Air Valve Polypropylene, Acetal

Elastomer Options

Material Temperature Limits
Buna-N -12°C to 82°C (10°F to 180°F)
EPDM -51°C to 138°C (-60°F to 280°F)
FKM -40°C to 177°C (-40°F to 350°F)
Geolast®
 -40°C to 82°C (-40°F to 180°F)
Neoprene -18°C to 93°C (0°F to 200°F)
PTFE* 4°C to 104°C (40°F to 220°F)
Saniflex™
 -29°C to 104°C (-20°F to 220°F)
Wil-Flex™
 -40°C to 107°C (-40°F to 225°F)

* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
