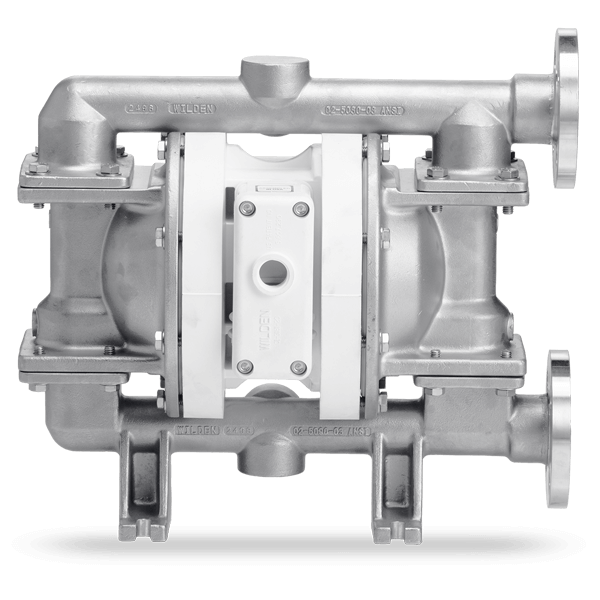

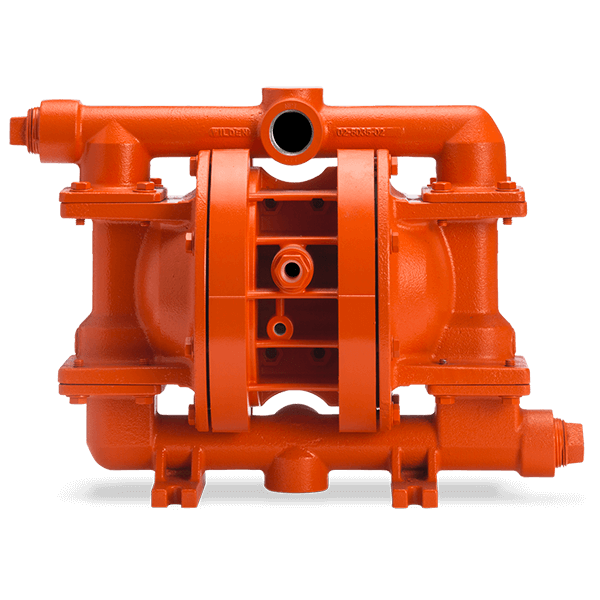

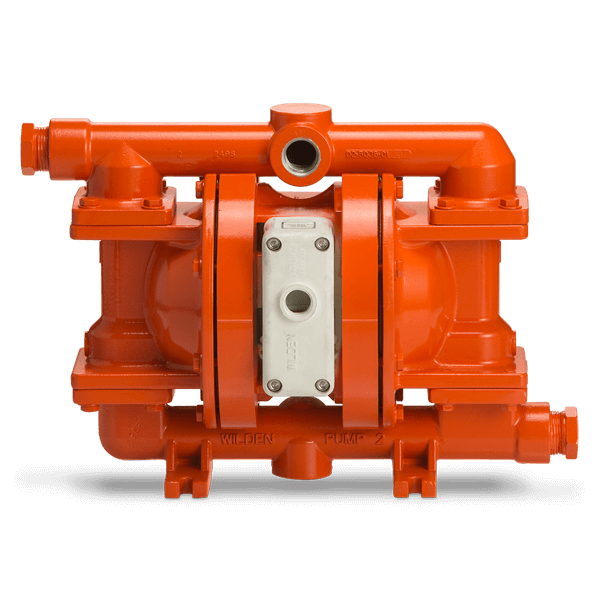

25 mm (1") Pro-Flo® Series Bolted Metal AODD Pump P220/P230

AIR INLET
  • 1/4" FNPT
LIQUID INLET
  • 25 mm (1")
LIQUID DISCHARGE
  • 25 mm (1")
CONNECTION TYPE
  • NPT/BSPT (Threaded)
  • DIN/ANSI (Flanged)
MAX SUCTION LIFT CAPABILITY
  • Rubber – 5.4 m (17.6') Dry, 9.3 (30.6') Wet
  • TPE – 4.1 m (13.6') Dry, 9.3 (30.6') Wet
  • Full-Stroke PTFE – 5.5 m (18.2') Dry, 9.0 m (29.5') Wet
  • Reduced-Stroke PTFE – 3.5 m (11.4') Dry, 9.3 m (30.6') Wet
MAX FLOW RATE
  • Rubber – 212 lpm (56 gpm)
  • TPE – 212 lpm (56 gpm)
  • Full-Stroke PTFE – 185 lpm (49 gpm)
  • Reduced-Stroke PTFE – 168 lpm (44 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • 6.4 mm (1/4'')
DISPLACEMENT PER STROKE *
  • Rubber – 0.30 L (0.08 gal)
  • TPE – 0.34 L (0.09 gal)
  • Full-Stroke PTFE – 0.3 L (0.08 gal)
  • Reduced-Stroke PTFE – 0.23 L (0.06 gal)
    • * 1 cycle = 2 strokes
Order Online
  • icon_cert-CE
  • icon_cert-Ex

Features and Benefits

The Wilden® bolted metal pump, also known as FIT, sets the new standard for pump performance. Featuring an enhanced flow path design, Wilden's bolted-construction pumps offer improved flow rates (up to 35% over competitive models) as well as improved diaphragm life. Wilden's bolted pumps are also designed for superior containment and have the exact bolt down footprint and inlet/discharge connections as Wilden clamped pumps for easy replacement.

  • NPT or BSPT threaded inlet/discharge liquid connections (P220)
  • DIN or ANSI flanged inlet/discharge liquid connections (P230) that don't require welding or nipple attachment
  • Widest array of chemical compatibility
  • Portable and submersible
  • Large-solids passage
  • High suction lift
  • Ease of operation and maintenance
  • Flexible internal adjustment on manifolds
  • Increased on/off reliability
  • Longest Mean Time Between Repair (MTBR)

Performance and Specifications

Dimensions

Dim-P220-P230-25mm1in-BMP

Note: Dimensions vary by material and connection. For additional information, please refer to the P220/P230 Metal Manual.

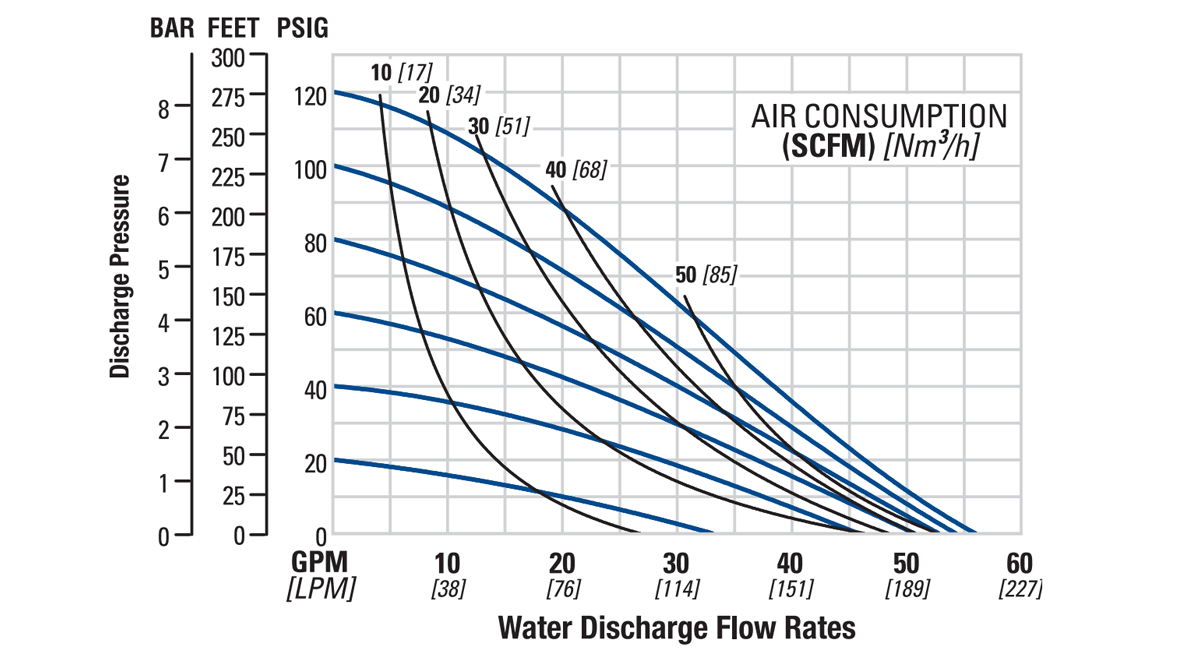

Flow Curve – TPE-Fitted

Flo-P220-P230-25mm1in-BMP

Note: Additional performance curves can be found in the P220/P230 Metal Manual.

AIR INLET
  • 1/4" FNPT
LIQUID INLET
  • 25 mm (1")
LIQUID DISCHARGE
  • 25 mm (1")
CONNECTION TYPE
  • NPT/BSPT (Threaded)
  • DIN/ANSI (Flanged)
MAX FLOW RATE
  • Rubber – 212 lpm (56 gpm)
  • TPE – 212 lpm (56 gpm)
  • Full-Stroke PTFE – 185 lpm (49 gpm)
  • Reduced-Stroke PTFE – 168 lpm (44 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • 6.4 mm (1/4'')
MAX SUCTION LIFT CAPABILITY
  • Rubber – 5.4 m (17.6') Dry, 9.3 (30.6') Wet
  • TPE – 4.1 m (13.6') Dry, 9.3 (30.6') Wet
  • Full-Stroke PTFE – 5.5 m (18.2') Dry, 9.0 m (29.5') Wet
  • Reduced-Stroke PTFE – 3.5 m (11.4') Dry, 9.3 m (30.6') Wet
DISPLACEMENT PER STROKE *
  • Rubber – 0.30 L (0.08 gal)
  • TPE – 0.34 L (0.09 gal)
  • Full-Stroke PTFE – 0.3 L (0.08 gal)
  • Reduced-Stroke PTFE – 0.23 L (0.06 gal)
    • * 1 cycle = 2 strokes

Wetted Housings

Material Ship Weight
Aluminum 11 kg (24 lb)
Stainless Steel 23 kg (51 lb)
Ductile Iron 21 kg (47 lb)

Non-Wetted Housings

Description Material
Center Section Polypropylene, Acetal, Conductive Polypropylene
Air Valve Polypropylene, Acetal, Conductive Polypropylene

Elastomer Options

Material Temperature Limits
Buna-N -12°C to 82°C (10°F to 180°F)
EPDM -51°C to 138°C (-60°F to 280°F)
FKM -40°C to 177°C (-40°F to 350°F)
Neoprene -18°C to 93°C (0°F to 200°F)
PTFE* 4°C to 104°C (40°F to 220°F)
Polyurethane -12°C to 66°C (10°F to 150°F)
Saniflex™ -29°C to 104°C (-20°F to 220°F)
Wil-Flex™ -40°C to 107°C (-40°F to 225°F)

* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
