25 mm (1") CSA-Certified Bolted Metal AODD Pump GPS220/GPS230

AIR INLET
  • 1/2" FNPT
LIQUID INLET
  • 25 mm (1")
LIQUID DISCHARGE
  • 25 mm (1")
CONNECTION TYPE
  • NPT/BSPT (Threaded)
  • DIN/ANSI (Flanged)
MAX SUCTION LIFT CAPABILITY
  • Rubber – 6.9 m (22.7’) Dry, 9.0 m (29.5’) Wet
  • Full-Stroke PTFE – 5.2 m (17.0’) Dry, 9.0 m (29.5’) Wet
MAX FLOW RATE
  • Rubber – 204 lpm (54 gpm)
  • Full-Stroke PTFE – 197 lpm (52 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • 6.4 mm (1/4")
DISPLACEMENT PER STROKE *
  • Rubber – 0.30 L (0.08 gal)
  • Full-Stroke PTFE – 0.30 L (0.08 gal)
    • * 1 cycle = 2 strokes
  • icon_cert-CE
  • icon_cert-Ex
  • csa logo

Features and Benefits

Wilden® GPS Series pumps, equipped with the Pro-Flo® SHIFT Air Distribution System (ADS) and available in bolted metal construction, are certified by the Canadian Standards Association (CSA) to be powered by natural gas and maintain a safe, reliable operation. They are perfect for oil and gas operations where compressed air is not readily accessible but where natural gas is plentiful.

  • NPT or BSPT threaded inlet/discharge liquid connections (GPS220)
  • DIN or ANSI flanged inlet/discharge liquid connections (GPS230) that don't require welding or nipple attachment
  • GPS Series pumps utilize the Wilden Pro-Flo SHIFT ADS
    • Helps plants save valuable natural gas
    • Pro-Flo SHIFT uses 60% less natural gas, without hindering performance
    • Greater flow - more gallons pumped per SCFM

Performance and Specifications

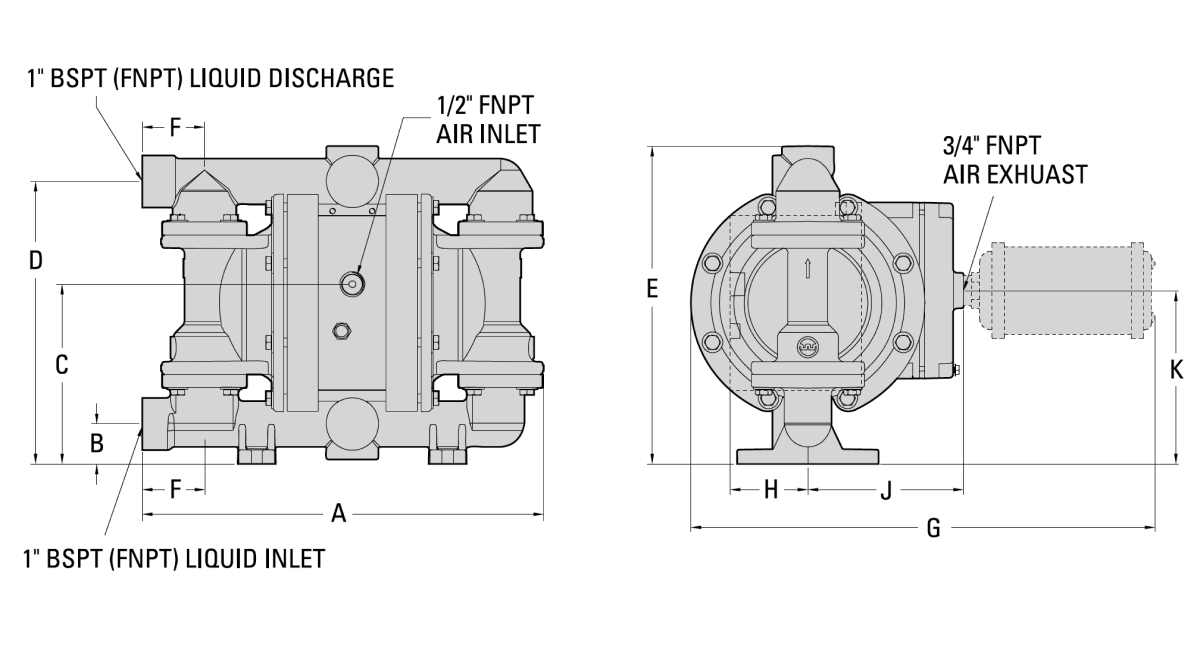

Dimensions

dim-gps220-gps230

Note: Dimensions vary by material and connection. For additional information, please refer to the GPS220/GPS230 Metal Manual.

Flow Curve – Full-Stroke PTFE

Flo-GPS220-25mm1in-CSA-C-BMP

Note: Additional performance curves can be found in the GPS220/GPS230 Metal Manual.

AIR INLET
  • 1/2" FNPT
LIQUID INLET
  • 25 mm (1")
LIQUID DISCHARGE
  • 25 mm (1")
CONNECTION TYPE
  • NPT/BSPT (Threaded)
  • DIN/ANSI (Flanged)
MAX FLOW RATE
  • Rubber – 204 lpm (54 gpm)
  • Full-Stroke PTFE – 197 lpm (52 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • 6.4 mm (1/4")
MAX SUCTION LIFT CAPABILITY
  • Rubber – 6.9 m (22.7’) Dry, 9.0 m (29.5’) Wet
  • Full-Stroke PTFE – 5.2 m (17.0’) Dry, 9.0 m (29.5’) Wet
DISPLACEMENT PER STROKE *
  • Rubber – 0.30 L (0.08 gal)
  • Full-Stroke PTFE – 0.30 L (0.08 gal)
    • * 1 cycle = 2 strokes

Wetted Housings

Material Ship Weight
Aluminum 19 kg (41 lb)
Stainless Steel 31 kg (68 lb)

Non-Wetted Housings

Description Material
Center Section Aluminum
Air Valve Aluminum

Elastomer Options

Material Temperature Limits
Buna-N -12°C to 82°C (10°F to 180°F)
PTFE* 4°C to 104°C (40°F to 220°F)

* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
