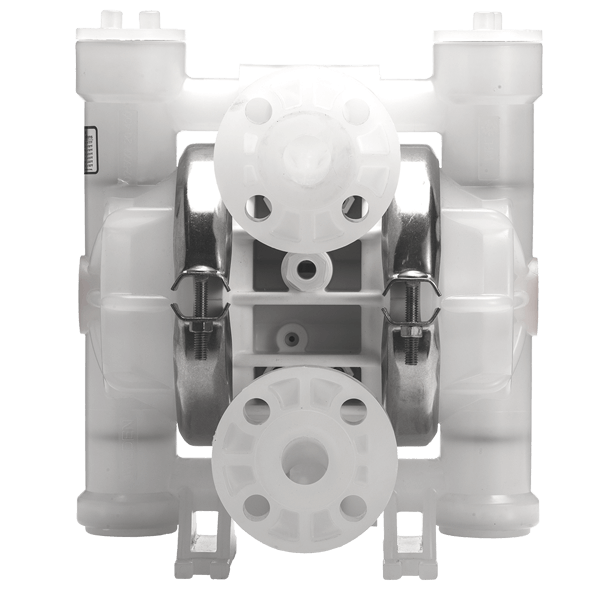

Wilden AODD Double Diaphragm Pump - 25 mm (1 in.) - Pro-Flo Clamped Plastic - P2

25 mm (1") Accu-Flo™ Clamped Plastic AODD Pump A2

AIR INLET
  • 1/4" FNPT
LIQUID INLET
  • 25 mm (1")
LIQUID DISCHARGE
  • 25 mm (1")
CONNECTION TYPE
  • DIN/ANSI (Flanged)
MAX SUCTION LIFT CAPABILITY
  • Rubber – 6.2 m (20.4') Dry, 9 m (29.5') Wet
  • PTFE – 5.2 m (17') Dry, 9 m (29.5') Wet
MAX FLOW RATE
  • Rubber – 136 lpm (36 gpm)
  • PTFE – 110 lpm (29 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • 3.2 mm (1/8'')
DISPLACEMENT PER STROKE *
  • Rubber – 0.12 L (0.030 gal)
  • PTFE – 0.11 L (0.028 gal)
    • * 1 cycle = 2 strokes
  • icon_cert-CE

Features and Benefits

Accu-Flo™ Series Air-Operated Double-Diaphragm (AODD) Pumps give you the critical external pump control necessary for exacting applications such as batching. Featuring a direct electrical interface that utilizes electrical impulses to stroke the pump instead of differential pressure, the Accu-Flo Series provides a variable stroke rate that you can easily control as needed. To meet your applications, Accu-Flo Series pumps are available as NEMA 5-compliant and come in a variety of voltage options.
  • Integrated electronic (solenoid) control
  • Multiple signal input voltage options: 24V DC, 12V DC and 110V AC
  • Proven, robust clamped construction

Downloads

EOMS

25 mm (1'') Accu-Flo Clamped Plastic Pump
Model: A2 | Code: WIL-10070-E-03

Brochures

WIL-19151-C-02

Performance and Specifications

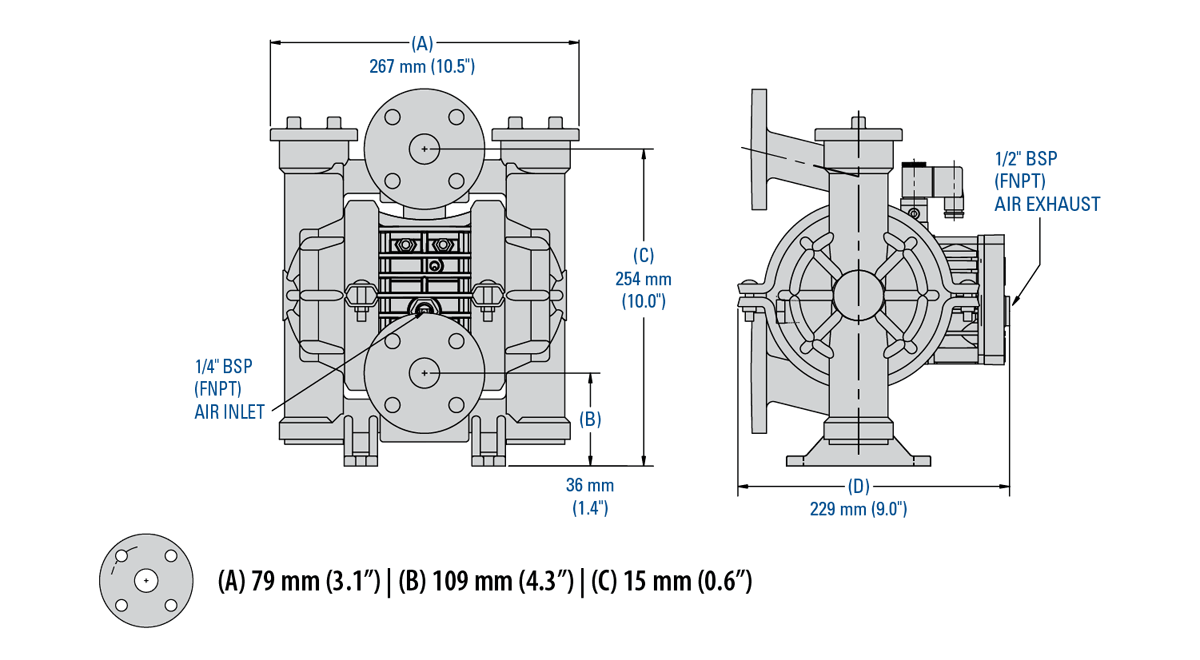

Dimensions

A2 Plastic

Note: Dimensions vary by material and connection. For additional information, please refer to the A2 Metal Manual.

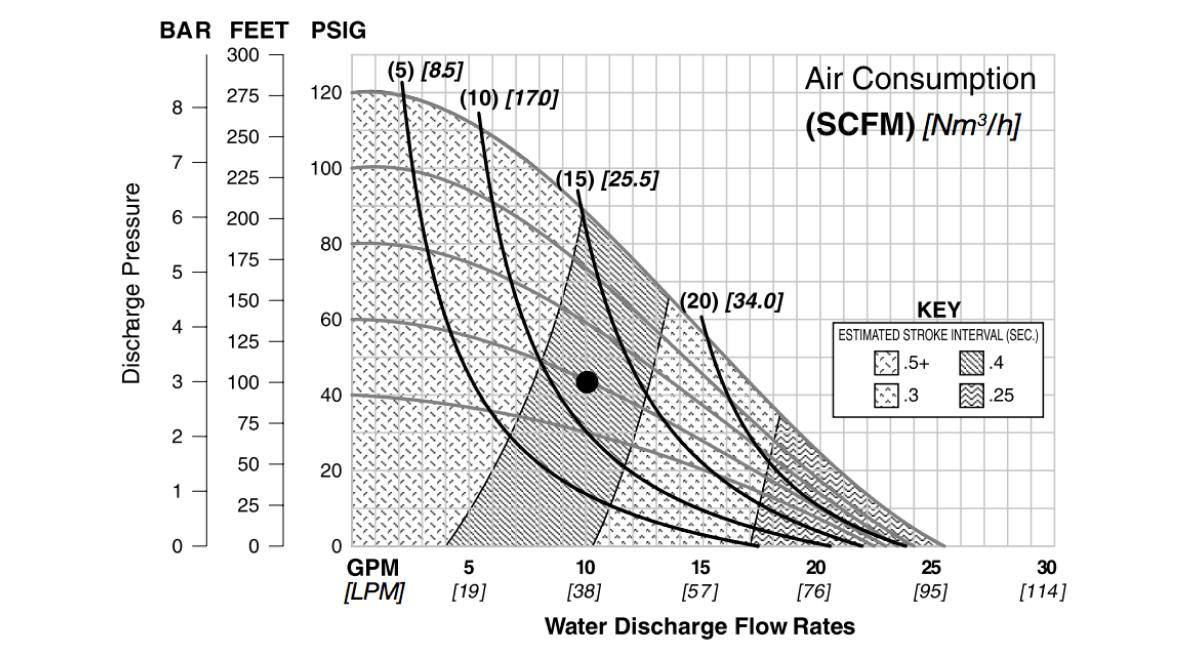

Flow Curve – Rubber-Fitted

Flo-A2-25mm1inAccu-Flo_CMP

Note: Additional performance curves can be found in the A2 Metal Manual.

AIR INLET
  • 1/4" FNPT
LIQUID INLET
  • 25 mm (1")
LIQUID DISCHARGE
  • 25 mm (1")
CONNECTION TYPE
  • DIN/ANSI (Flanged)
MAX FLOW RATE
  • Rubber – 136 lpm (36 gpm)
  • PTFE – 110 lpm (29 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • 3.2 mm (1/8'')
MAX SUCTION LIFT CAPABILITY
  • Rubber – 6.2 m (20.4') Dry, 9 m (29.5') Wet
  • PTFE – 5.2 m (17') Dry, 9 m (29.5') Wet
DISPLACEMENT PER STROKE *
  • Rubber – 0.12 L (0.030 gal)
  • PTFE – 0.11 L (0.028 gal)
    • * 1 cycle = 2 strokes

Wetted Housings

Material Ship Weight
Polyproylene 8 kg (18 lb)
PVDF 10 kg (23 lb)

Non-Wetted Housings

Description Material
Center Section Polypropylene
Air Valve Polypropylene

Elastomer Options

Material Temperature Limits
Buna-N -12°C to 82°C (10°F to 180°F)
EPDM -51°C to 138°C (-60°F to 280°F)
FKM -40°C to 177°C (-40°F to 350°F)
Neoprene
 -18°C to 93°C (0°F to 200°F)
PTFE* 4°C to 104°C (40°F to 220°F)
Polyurethane
 -12°C to 66°C (10°F to 150°F)
Saniflex™
 -29°C to 104°C (-20°F to 220°F)
Wil-Flex™ -40°C to 107°C (-40°F to 225°F)

* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
