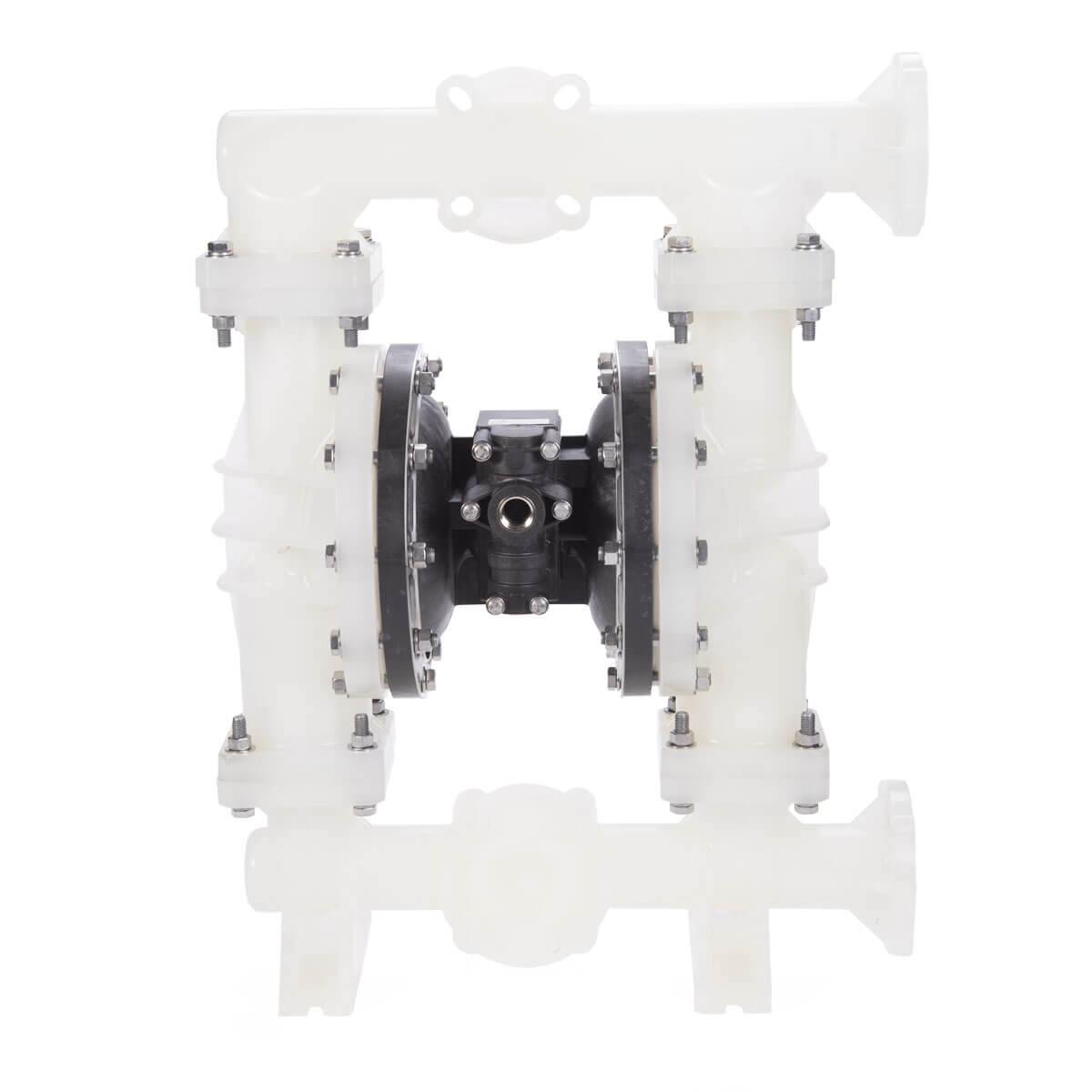

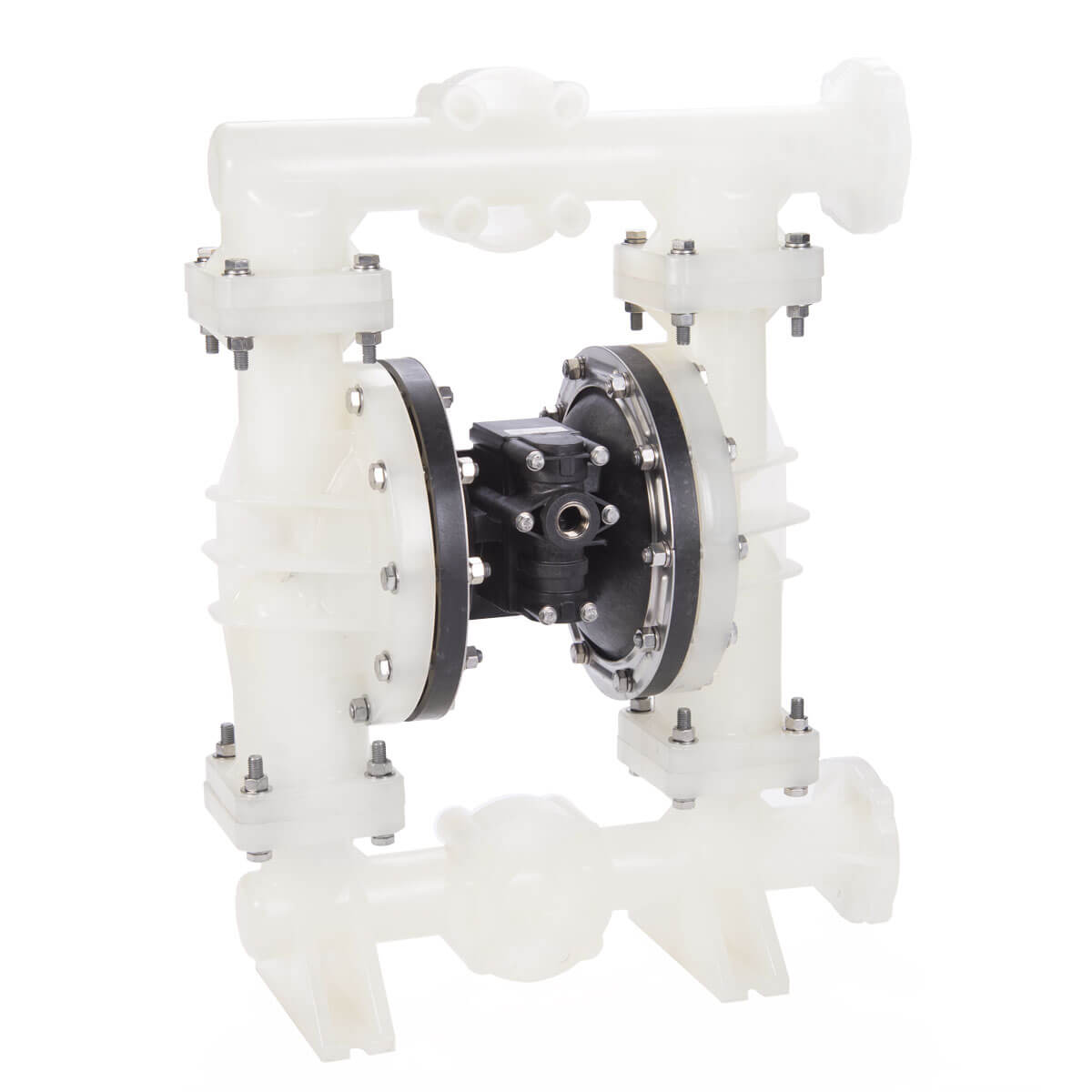

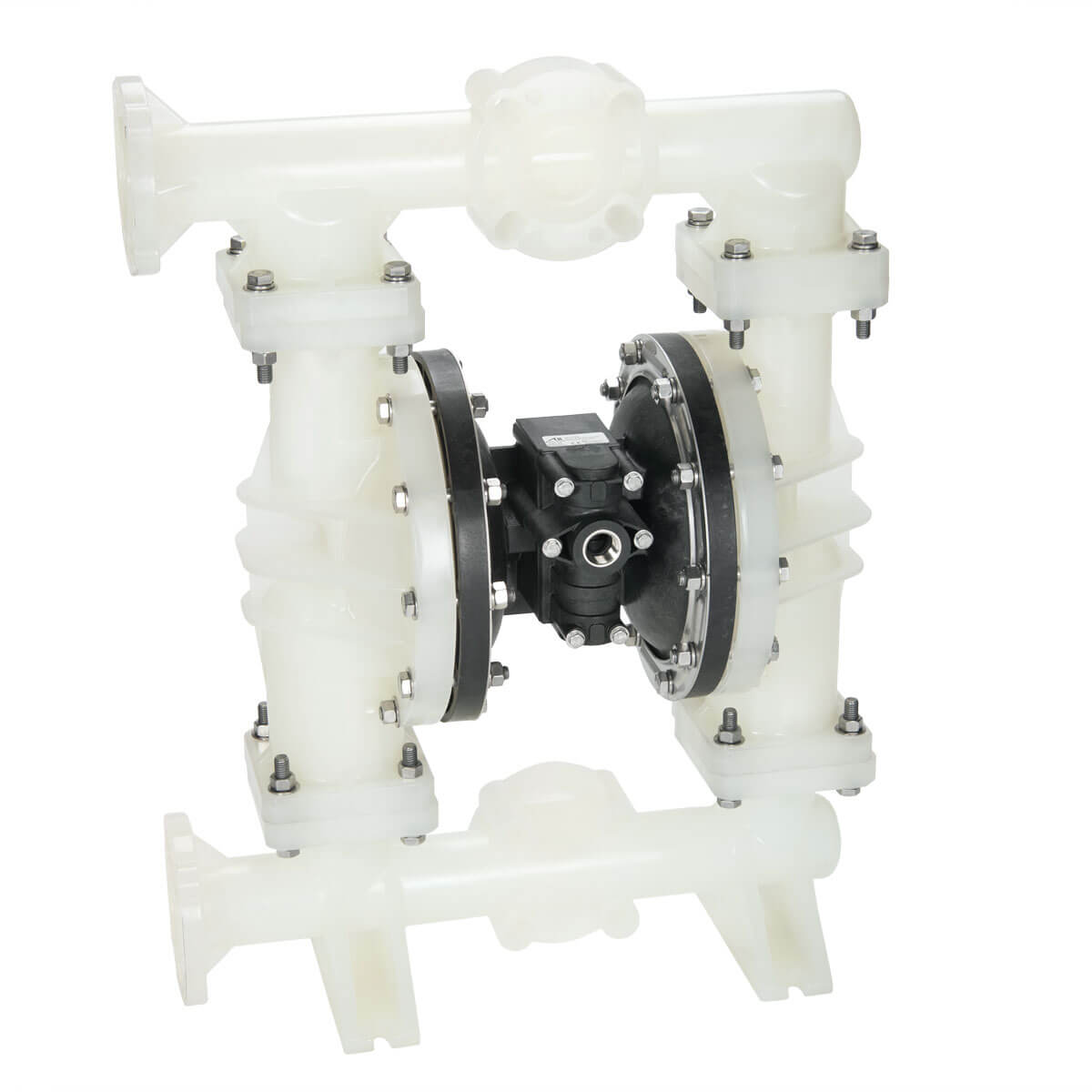

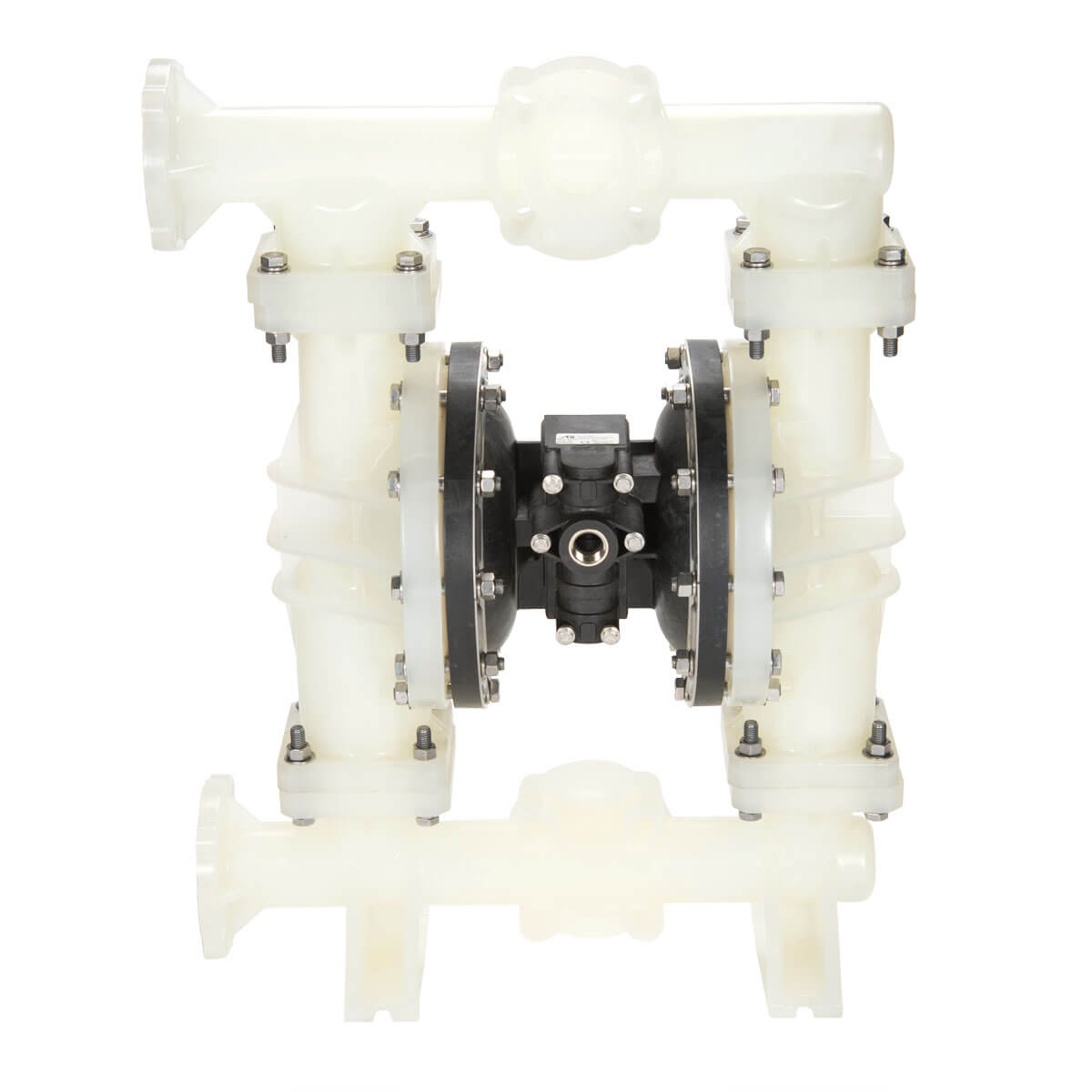

All-Flo AODD Double Diaphragm Pump - Plastic - 2 in. - A200 All-Flo AODD Double Diaphragm Pump - Plastic - 2 in. - A200 All-Flo AODD Double Diaphragm Pump - Plastic - 2 in. - A200 - Angled All-Flo AODD Double Diaphragm Pump - Plastic - 2 in. - A200 - Angled

2 in. Plastic AODD Pump A200

Air Inlet
  • 3/4" FNPT
Liquid Inlet
  • 2"
Liquid Discharge
  • 2"
Connection Type
  • ANSI/DIN (Flanged)
Max Suction Lift Capability
  • 17 ft-H2O (5.2 m-H2O) Dry
  • 29 ft-H2O (8.8 m-H2O) Wet
Max Flow Rate
  • 160 gpm (605 lpm)
Max Pressure
  • 120 psi (8.2 bar)
Max Diameter Solids
  • 1/4" (6.4 mm)
Displacement Per Stroke
  • 0.48 gal (1.82 L)
logo_choice Select Your Pump
  • CE Icon
  • FDA Icon

Specifications

Physical Specifications
Liquid Port Size: 2 in.
Liquid Connection Type: ANSI / DIN Flange
Standard Suction Port: Right
Standard Discharge Port: Right
Air Inlet Connection Size: 3/4 in. FNPT
Air Exhaust Connection Size: 3/4 in. FNPT
Polypropylene PVDF
Max Height: 31.7 in. (805 mm) 31.7 in. (805 mm)
Max Width: 23.6 in. (600 mm) 23.6 in. (600 mm)
Max Depth: 12.2 in. (310 mm) 12.2 in. (310 mm)
Weight: 56 lbs (25 kg) 84 lbs (38 kg)
Construction
Wet End: Polypropylene, PVDF
Air End: Glass Filled Polypropylene
Diaphragm: Geolast®, PTFE with Santoprene® backup, Santoprene®, FKM
Balls: Geolast®, PTFE, Santoprene®, FKM
Seats: Polypropylene, PVDF
O-Rings: Buna-N, EPDM, PTFE, FKM
Hardware: PTFE Coated Stainless Steel, Stainless Steel
Muffler: Plastic

Performance

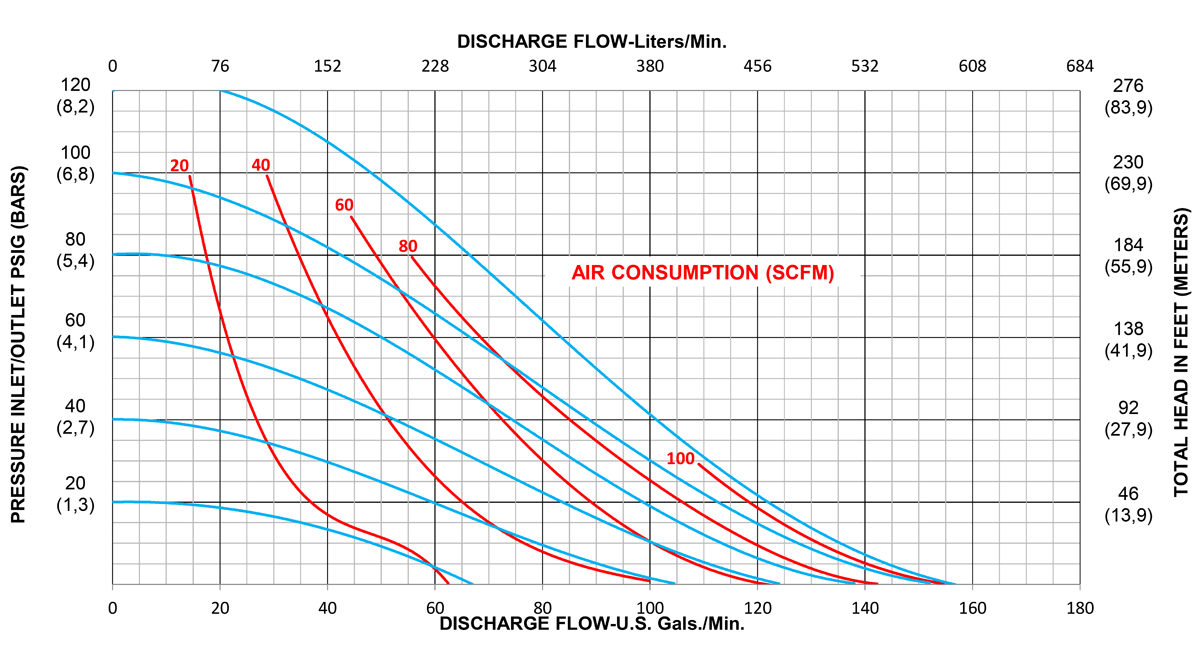

Performance Curve

A200-Performance-Curves_Rubber

Note: Additional performance curves can be found in the download section.

Performance
Max Flow: 160 gpm (681 lpm)
Max Air Pressure: 120 psi (8.2 bar)
Max Static Suction Head: 23 ft-H2O (7.0 m-H2O)
Max Suction Lift (Dry): 17 ft-H2O (3.9 m-H2O)
Max Suction Lift (Wet): 29 ft-H2O (7.9 m-H2O)
Max Solids: 1/4 in. (6.4 mm)
Avg. Displacement Per Stroke: (0.48 gal / 1.82 L)
Sound Level: 78 dBA (with Muffler)
Polypropylene
A200-FPP-GGPN-S70 ANSI/DIN Flange, Geolast® Diaphragm, Geolast® Ball, Polypropylene Seat, Buna-N O-Ring, Stainless Steel Hardware
A200-FPP-SSPE-S70 ANSI/DIN Flange, Santoprene® Diaphragm, Santoprene® Ball, Polypropylene Seat, EPDM O-Ring, Stainless Steel Hardware
A200-FPP-TTPT-S70 ANSI/DIN Flange, PTFE Diaphragm, PTFE Ball, Polypropylene Seat, PTFE O-Ring, Stainless Steel Hardware
PVDF
A200-FPK-SSKE-S70 ANSI/DIN Flange, Santoprene® Diaphragm, Santoprene® Ball, PVDF Seat, EPDM O-Ring, Stainless Steel Hardware
A200-FPK-TTKT-S70 ANSI/DIN Flange, PTFE Diaphragm, PTFE Ball, PVDF Seat, PTFE O-Ring, Stainless Steel Hardware

Downloads

IOMs

A200 Plastic IOM
Size: 2 in. | Code: ALF-11070-E-02

Performance Curves

A200 Plastic Performance Curve
Size: 2 in.

Spec Sheets

SPEC SHEET A200 – 2 in. Plastic Pump
Code: SPSHT-A200P-01

Dimensional Drawings

A200 Plastic 2D Drawing
Size: 2 in.

3D Models

A200 Plastic 3D Drawing
Size: 2 in.

Exploded Views

A200 Plastic Exploded Views
Size: 2 in.
