2 in. All-Pur™ Food Grade (G Series) AODD Pump G200

Air Inlet
  • 1/2" FNPT
Liquid Inlet
  • 2"
Liquid Discharge
  • 2"
Connection Type
  • Tri-Clamp®
Max Suction Lift Capability
  • 9.8 ft-H2O (3 m-H2O) Dry
  • 29.5 ft-H2O (9 m-H2O) Wet
Max Flow Rate
  • 106 gpm (400 lpm)
Max Pressure
  • 100 psi (7 bar)
Max Diameter Solids
  • 9/16" (14 mm)
logo_choice Select Your Pump
  • CE Icon
  • ATEX Icon
  • FDA Icon

Specifications

Physical Specifications
Liquid Port Size: 2 in.
Liquid Connection Types: Tri-Clamp
Standard Suction Port: Center
Standard Discharge Port: Center
Air Inlet Connection Size: 1/2 in. FNPT
Weight: 64 lbs (29 kg)
Construction
Wet End: 316 Stainless Steel
Air End: Conductive Polyethylene
Diaphragm: FDA EPDM, Integral PTFE
Balls: FDA EPDM, PTFE
Seats: N/A (Part of Liquid Section)
O-Rings: FDA EPDM, PTFE
Hardware: Stainless Steel
Muffler: Metal

Performance

Performance Curve

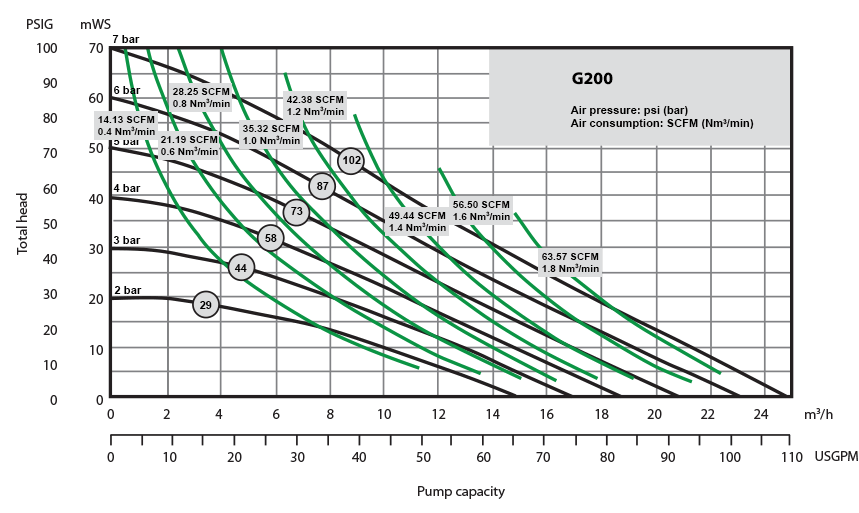

G200 Performance Curve

Note: Additional performance curves can be found in the download section.

Performance
Max Flow: 106 gpm (400 lpm)
Max Air Pressure: 100 psi (7 bar)
Max Suction Lift (Dry): 9.8 ft-H2O (3 m-H2O) Dry
Max Suction Lift (Wet): 29.5 ft-H2O (9 m-H2O) Wet
Max Solids: 9/16 in. (14 mm)
Sound Level: 63-74 dBA (depending on driving pressure)

Downloads

EOMs

G-Series IOM
Sizes: 3/4 in., 1-1/4 in., 2 in. | Code: ALF-13400-E-01

Dimensional Drawings

G200 2D Drawing
Size: 2 in.

3D Models

G200 3D Drawing
Size: 2 in.
