Wilden AODD Double Diaphragm Pump - 13 mm (1/2 in.) - Pro-Flo SHIFT Clamped Aluminum - PS1

13 mm (1/2") Pro-Flo® SHIFT Series Clamped Metal AODD Pump PS1

AIR INLET
  • 1/4" FNPT
LIQUID INLET
  • 13 mm (1/2")
LIQUID DISCHARGE
  • 13 mm (1/2")
CONNECTION TYPE
  • NPT/BSPT (Threaded)
MAX SUCTION LIFT CAPABILITY
  • Rubber – 5.9 m Dry (19.3’), 9.8 m Wet (32.3’)
MAX FLOW RATE
  • Rubber – 60.2 lpm (15.9 gpm)
MAX PRESSURE
  • 3.4 bar (50 psi)
MAX DIAMETER SOLIDS
  •  1.6 mm (1/16")
DISPLACEMENT PER STROKE *
  • Rubber – 0.10 L (0.026 gal)
    • * 1 cycle = 2 strokes
Order Online
  • icon_cert-CE
  • icon_cert-Ex

Features and Benefits

Featuring the original air-operated double-diaphragm pump design by Jim Wilden, clamped metal pumps offer a simple, rugged design for general industrial applications. Designed with ease of maintenance in mind, clamped pumps are simple to install and are made for quick serviceability, allowing the pump to be taken apart and put back together with only a single tool. Proven by the test of time, hundreds of thousands of Jim Wilden's clamped pumps have pumped billions of gallons of fluid on an annual basis.

  • NPT and BSP threaded inlet/discharge liquid connections for quick disconnect/connect
  • Featuring the energy-efficient Pro-Flo® SHIFT ADS
  • Greater flow - more gallons pumped per SCFM
  • Reduced air consumption and kilowatt usage
  • Decades of proven performance
  • Clamped connections for faster maintenance
  • Low cost
  • Simple installation
  • Ease of operation and maintenance

Downloads

EOMs

13 mm (1/2") Pro-Flo SHIFT Clamped Metal Pump
Model: PS1 | Code: WIL-10470-E-05

Spec Sheets

SPEC SHEET 13 mm (1/2") Pro-Flo Shift Metal Pump
Model: PS1 | Code: WIL-10470-T-01

Dimensional Drawings

DIMENSIONS Wilden PS1 Metal LW0361 DXF Drawings
PS1 Metal

Performance and Specifications

Dimensions

Dim-PS1-13mm-1.5in-PF-SSCMP

Note: Dimensions vary by material and connection. For additional information, please refer to the PS1 Metal Manual.

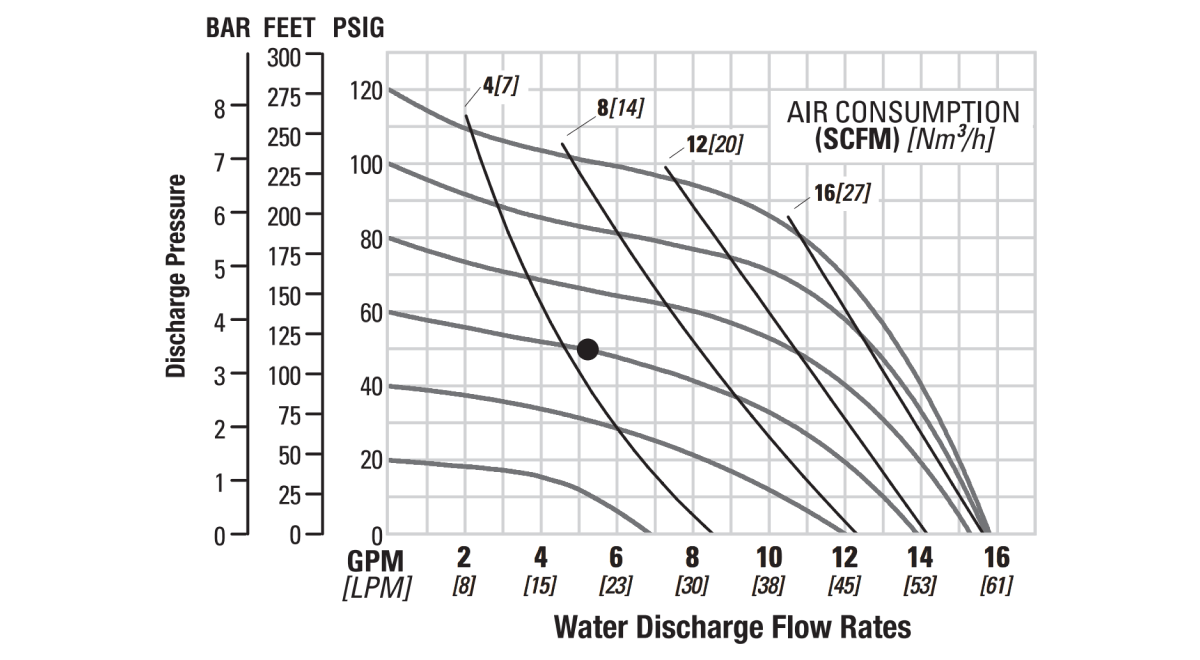

Flow Curve – Rubber-Fitted

flo-ps1-rubber-fitted

Note: Additional performance curves can be found in the PS1 Metal Manual.

AIR INLET
  • 1/4" FNPT
LIQUID INLET
  • 13 mm (1/2")
LIQUID DISCHARGE
  • 13 mm (1/2")
CONNECTION TYPE
  • NPT/BSPT (Threaded)
MAX FLOW RATE
  • Rubber – 60.2 lpm (15.9 gpm)
MAX PRESSURE
  • 3.4 bar (50 psi)
MAX DIAMETER SOLIDS
  •  1.6 mm (1/16")
MAX SUCTION LIFT CAPABILITY
  • Rubber – 5.9 m Dry (19.3’), 9.8 m Wet (32.3’)
DISPLACEMENT PER STROKE *
  • Rubber – 0.10 L (0.026 gal)
    • * 1 cycle = 2 strokes

Wetted Housings

Material Ship Weight
Aluminum 6 kg (13 lb)

Non-Wetted Housings

Description Material
Center Block Aluminum
Air Valve Aluminum

Elastomer Options

Material Temperature Limits
Buna-N -12°C to 82°C (10°F to 180°F)

Wilden UL-listed pumps have been evaluated for use at a 25°C (77°F) ambient temperature
