Wilden AODD Double Diaphragm Pump - 13 mm (1/2 in.) - FDA Approved - PS1

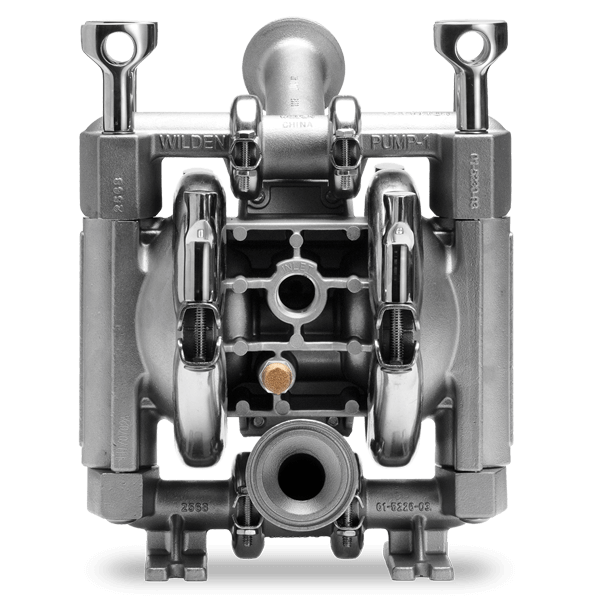

13 mm (1/2") Pro-Flo® SHIFT Saniflo™ FDA Series Clamped Metal AODD PumpPS1

AIR INLET
  • 1/2" FNPT
LIQUID INLET
  • 25 mm (1”)
LIQUID DISCHARGE
  • 25 mm (1”)
CONNECTION TYPE
  • Tri-Clamp®
MAX SUCTION LIFT CAPABILITY
  • Rubber – 5.9 m Dry (19.3’), 9.8 m Wet (32.3’)
  • TPE – 5.7 m Dry (18.7’), 8.3 m Wet (27.2’)
  • PTFE – 4.3 m Dry (14.2’), 9.7 m Wet (31.7’)
MAX FLOW RATE
  • Rubber – 60.2 lpm (15.9 gpm)
  • TPE – 60.2 lpm (15.9 gpm)
  • PTFE – 59.8 lpm (15.8 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • 1.6 mm (1/16")
DISPLACEMENT PER STROKE *
  • Rubber – 0.10 L (0.026 gal)
  • TPE – 0.10 L (0.026 gal)
  • PTFE – 0.10 L (0.026 gal)
    • * 1 cycle = 2 strokes
  • EC-1935-LOGO
  • fda_logo
  • ce_logo
  • atex_logo

Features and Benefits

Saniflo™ FDA Series pumps are designed for standard food applications that don’t require the Hygienic™ Series (HS) design or clean-in-place (CIP) capability. They are well suited for sanitary applications moving high-acid, high-sugar and high-fat media. With simple installation and robust design, FDA pumps comply with FDA, CE, EC 1935/2004 and ATEX requirements.
  • Featuring energy efficient Pro-Flo® SHIFT ADS
  • Greater flow - more gallons pumped per SCFM
  • Tri-Clamp® connections with wingnut clamped design
  • Quick breakdown/reassembly for cleaning
  • Shear sensitive
  • Robust durability
  • Straight flow-through design

Performance and Specifications

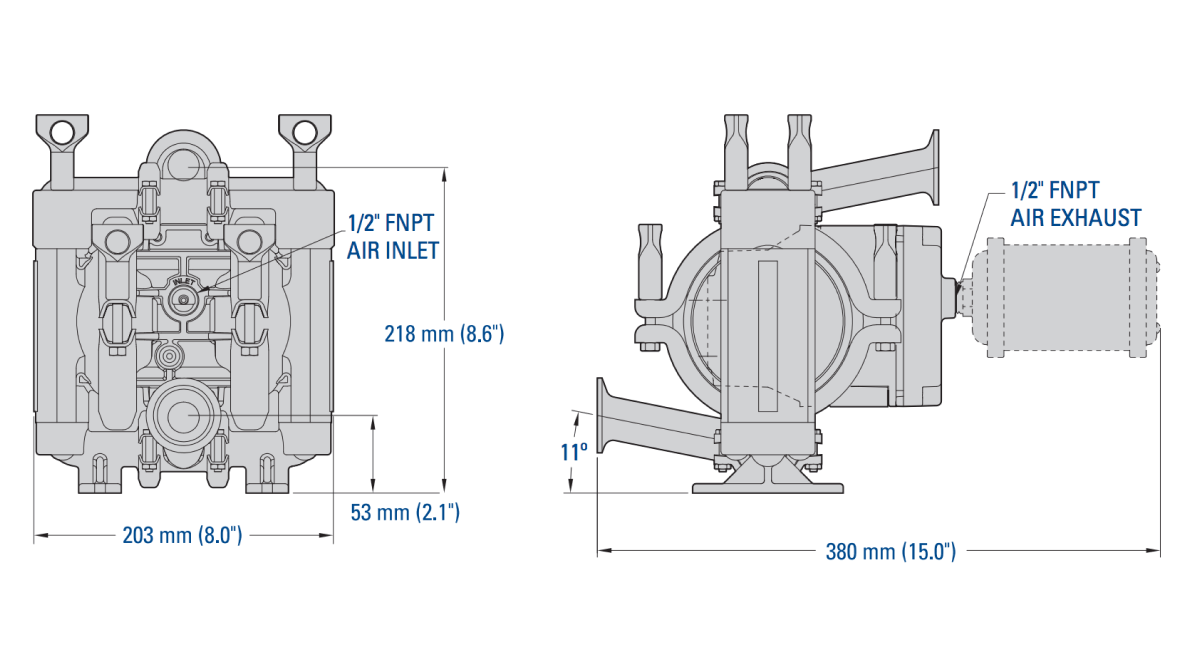

Dimensions

Dim-PS1-13mm.5-PSFS-FDA-MP

Note: Dimensions vary by material and connection. For additional information, please refer to the PS1 Metal Manual.

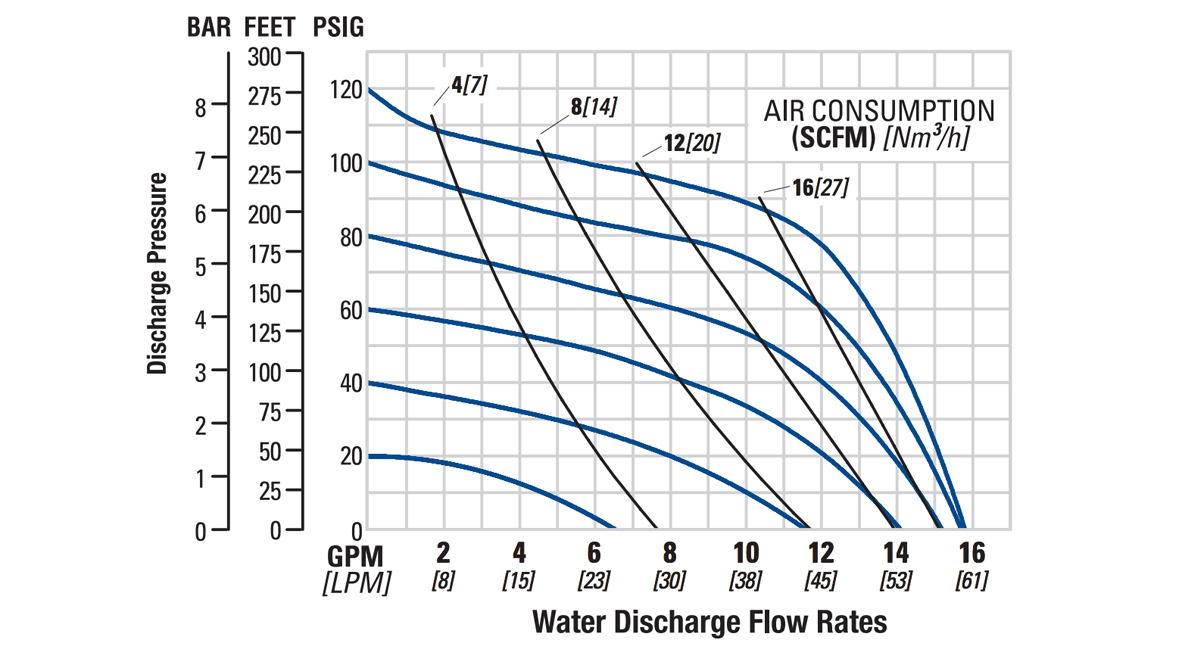

Flow Curve – TPE-Fitted

Flo-PS1-13mm.5-PSFS-FDA-MP

Note: Additional performance curves can be found in the PS1 Metal Manual.

AIR INLET
  • 1/2" FNPT
LIQUID INLET
  • 25 mm (1”)
LIQUID DISCHARGE
  • 25 mm (1”)
CONNECTION TYPE
  • Tri-Clamp®
MAX FLOW RATE
  • Rubber – 60.2 lpm (15.9 gpm)
  • TPE – 60.2 lpm (15.9 gpm)
  • PTFE – 59.8 lpm (15.8 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • 1.6 mm (1/16”)
MAX SUCTION LIFT CAPABILITY
  • Rubber – 5.9 m Dry (19.3’), 9.8 m Wet (32.3’)
  • TPE – 5.7 m Dry (18.7’), 8.3 m Wet (27.2’)
  • PTFE – 4.3 m Dry (14.2’), 9.7 m Wet (31.7’)
DISPLACEMENT PER STROKE *
  • Rubber – 0.10 L (0.026 gal)
  • TPE – 0.10 L (0.026 gal)
  • PTFE – 0.10 L (0.026 gal)
    • * 1 cycle = 2 strokes

Wetted Housings

Material Ship Weight
Stainless Steel 9 kg (20 lb)

Non-wetted Housings

Description Material
Center Block Aluminum
Air Valve Aluminum

Elastomer Options

Material Temperature Limits
EPDM -51°C to 138°C (-60°F to 280°F)
PTFE* 4°C to 104°C (40°F to 220°F)
Saniflex™ -29°C to 104°C (-20°F to 220°F)

* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
