Wilden AODD Double Diaphragm Pump - 13 mm (1/2 in.) - FDA Approved - P1

13 mm (1/2") Pro-Flo® Saniflo™ FDA Series Clamped Metal AODD PumpP1

AIR INLET
  • 1/4" FNPT
LIQUID INLET
  • 25 mm (1")
LIQUID DISCHARGE
  • 25 mm (1")
CONNECTION TYPE
  • Tri-Clamp®
MAX SUCTION LIFT CAPABILITY
  • Rubber – 5.8 m (19.0') Dry, 9.5 m (31.0') Wet
  • TPE – 5.2 m (17.0') Dry, 9.5 m (31.0') Wet
  • PTFE – 4.9 m (16.0') Dry, 9.5 m (31.0') Wet
MAX FLOW RATE
  • Rubber – 58.7 lpm (15.5 gpm)
  • TPE – 58.3 lpm (15.4 gpm)
  • PTFE – 54.4 lpm (14.4 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • 1.59 mm (1/16'')
DISPLACEMENT PER STROKE *
  • Rubber – 0.11 L (0.029 gal)
  • TPE – 0.11 L (0.029 gal)
  • PTFE – 0.09 L (0.025 gal)
    • * 1 cycle = 2 strokes
Order Online
  • EC-1935-LOGO
  • fda_logo
  • ce_logo

Features and Benefits

Saniflo™ FDA Series pumps are designed for standard food applications that don’t require the Hygienic™ Series (HS) design or clean-in-place (CIP) capability. They are well suited for sanitary applications moving high-acid, high-sugar and high-fat media. With simple installation and robust design, FDA pumps comply with FDA, CE, EC 1935/2004 and ATEX requirements.
  • Tri-Clamp® connections with wingnut clamped design
  • Quick breakdown/reassembly for cleaning
  • Shear sensitive
  • Robust durability
  • Straight flow-through design

Downloads

Flyers

FLYER Wilden Pure-Fuse Flyer
WIL-19183-F-04

Spec Sheets

SPEC SHEET 13 mm (1/2") Pro-Flo Metal Pump
Model: P1 | Code: WIL-10170-T-01

Performance and Specifications

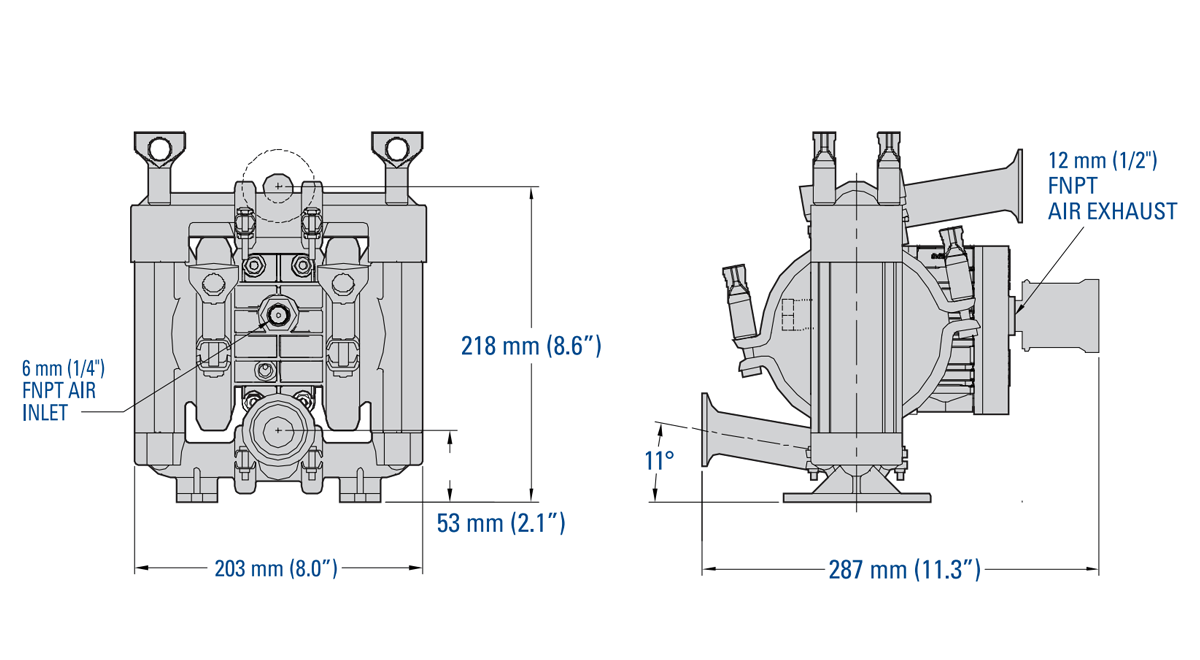

Dimensions

Dim-P1-13mm.5-PFSF-FDA-MP

Note: Dimensions vary by material and connection. For additional information, please refer to the P1 Metal Manual.

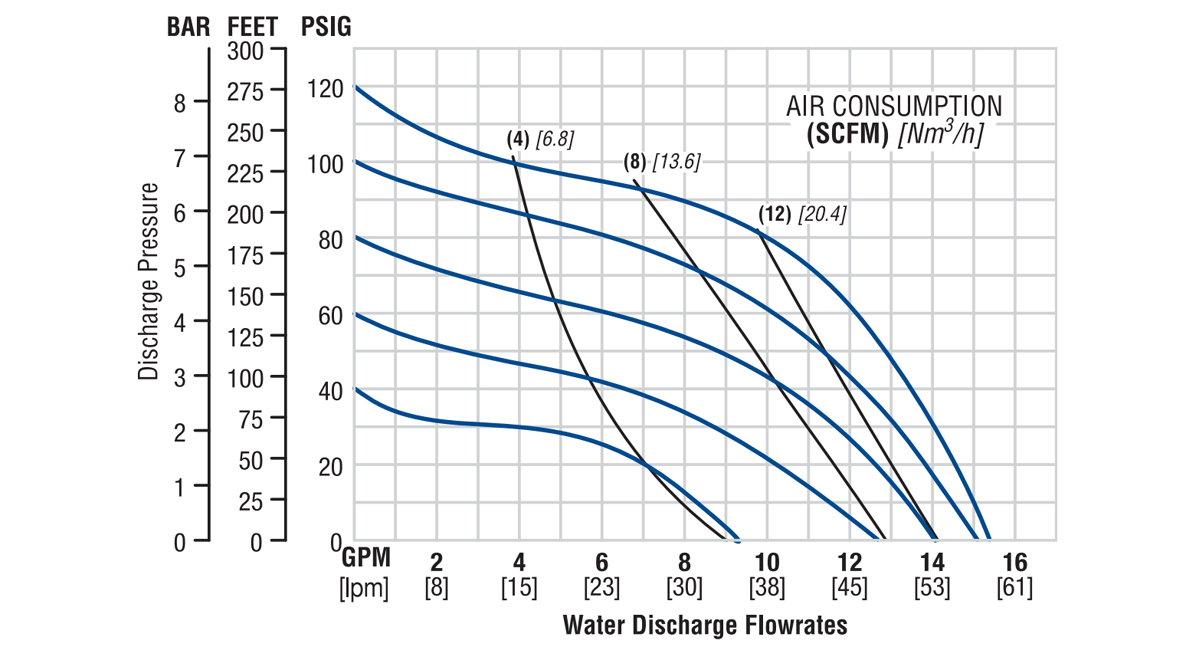

Flow Curve – TPE-Fitted

Flo-P1-13mm.5-PFSF-FDA-MP

Note: Dimensions vary by material and connection. For additional information, please refer to the P1 Metal Manual.

AIR INLET
  • 1/4" FNPT
LIQUID INLET
  • 25 mm (1")
LIQUID DISCHARGE
  • 25 mm (1")
CONNECTION TYPE
  • Tri-Clamp®
MAX FLOW RATE
  • Rubber – 58.7 lpm (15.5 gpm)
  • TPE – 58.3 lpm (15.4 gpm)
  • PTFE – 54.4 lpm (14.4 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • 1.59 mm (1/16'')
MAX SUCTION LIFT CAPABILITY
  • Rubber – 5.8 m (19.0') Dry, 9.5 m (31.0') Wet
  • TPE – 5.2 m (17.0') Dry, 9.5 m (31.0') Wet
  • PTFE – 4.9 m (16.0') Dry, 9.5 m (31.0') Wet
DISPLACEMENT PER STROKE *
  • Rubber – 0.11 L (0.029 gal)
  • TPE – 0.11 L (0.029 gal)
  • PTFE – 0.09 L (0.025 gal)
    • * 1 cycle = 2 strokes

Wetted Housings

Material Ship Weight
Stainless Steel 9 kg (20 lb)

Non-Wetted Housings

Description Material
Center Block Polypropylene, Conductive Polypropylene, Acetal, Conductive Acetal
Air Valve Polypropylene, Conductive Polypropylene, Acetal, Conductive Acetal

Elastomer Options

Material Temperature Limits
EPDM -51 to 138°C (-60 to 280°F)
PTFE* 4 to 104°C (40 to 220°F)
Saniflex™ -29 to 104°C (-20 to 220°F)

* 4 to 149°C (40 to 300°F) - 13 mm (1/2") and 25 mm (1") models only
