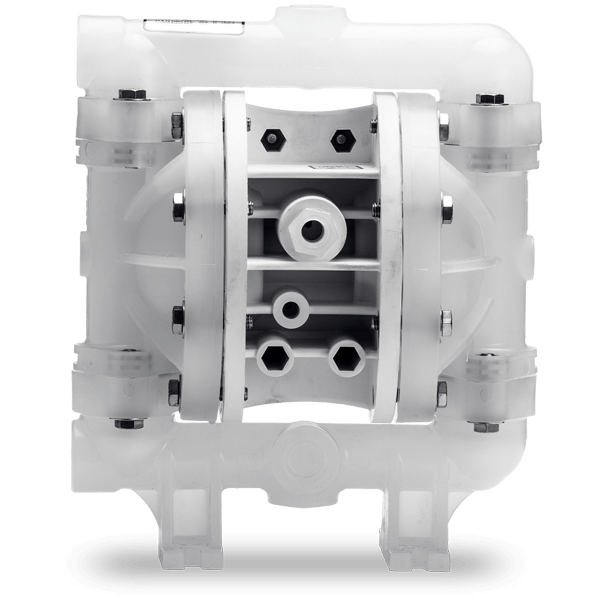

Wilden AODD Double Diaphragm Pump - 13 mm (1/2 in.) - Pro-Flo Bolted Plastic - P100

13 mm (1/2") Pro-Flo® Series Bolted Plastic AODD Pump P100

AIR INLET
  • 1/4" FNPT
LIQUID INLET
  • 13 mm (1/2")
LIQUID DISCHARGE
  • 13 mm (1/2")
CONNECTION TYPE
  • NPT/BSPT (Threaded)
MAX SUCTION LIFT CAPABILITY
  • Rubber – 5.2 m (17.0') Dry, 8.7 m (28.4') Wet
  • TPE – 5.2 m (17.0') Dry, 5.5 m (18.0') Wet
  • PTFE – 4.5 m (14.7') Dry, 9.3 (30.6') Wet
MAX FLOW RATE
  • Rubber – 56 lpm (14.8 gpm)
  • TPE – 58.7 lpm (15.5 gpm)
  • PTFE – 57 lpm (15 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • 1.6 mm (1/16")
DISPLACEMENT PER STROKE *
  • Rubber – 0.10 L (0.027 gal)
  • TPE – 0.11 L (0.029 gal)
  • PTFE – 0.10 L (0.027 gal)
    • * 1 cycle = 2 strokes
Order Online
  • icon_cert-CE

Features and Benefits

The Wilden® bolted plastic air-operated double-diaphragm (AODD) pump combines maximum performance and efficiency with superior containment. Wilden's bolted-construction pumps offer improved flow rates and a redesigned liquid path that reduces internal friction for maximum output and longer diaphragm life.

  • NPT or BSPT threaded inlet/discharge liquid connections
  • Decades of proven performance
  • Bolted construction for superior containment
  • Large-solids passage
  • High suction lift
  • Ease of operation and maintenance
  • Increased on/off reliability
  • Longest Mean Time Between Repair (MTBR)

Downloads

EOMs

13 mm (1/2") Pro-Flo Bolted Plastic Pump
Model: P100 | Code: WIL-11050-E-05

Spec Sheets

SPEC SHEET 13 mm (1/2") Pro-Flo Plastic Pump
Model: P100 | Code: WIL-11050-T-01

Performance and Specifications

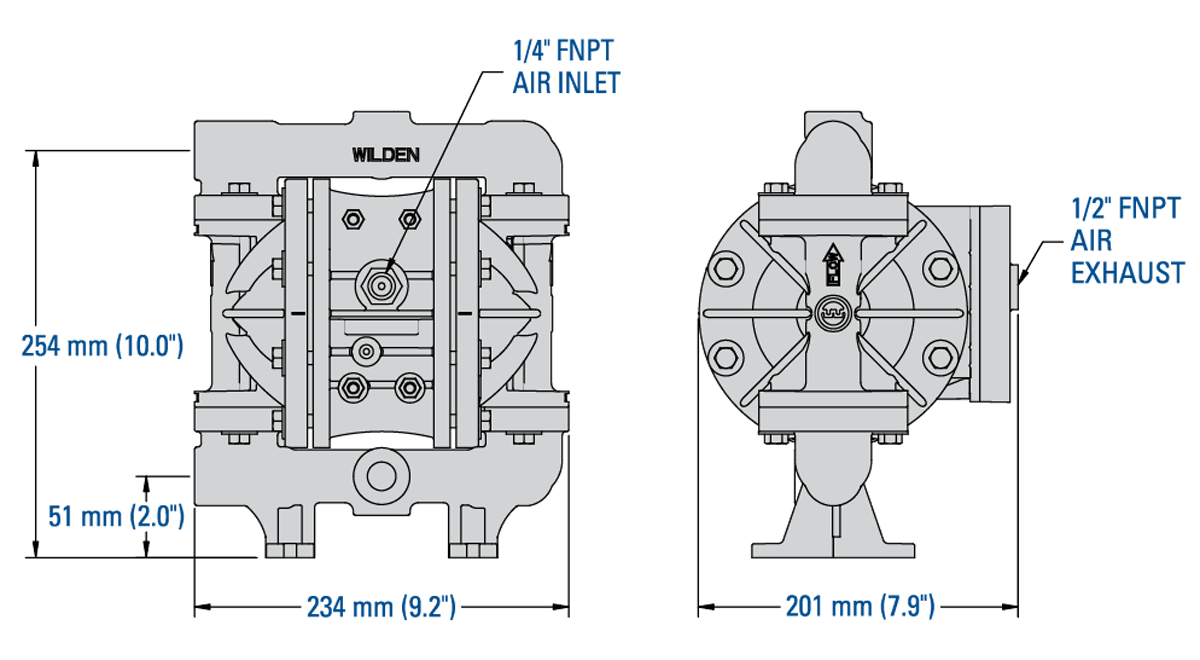

Dimensions

Dim-P100-13mm.5in-BPP

Note: Dimensions vary by material and connection. For additional information, please refer to the P100 Plastic Manual.

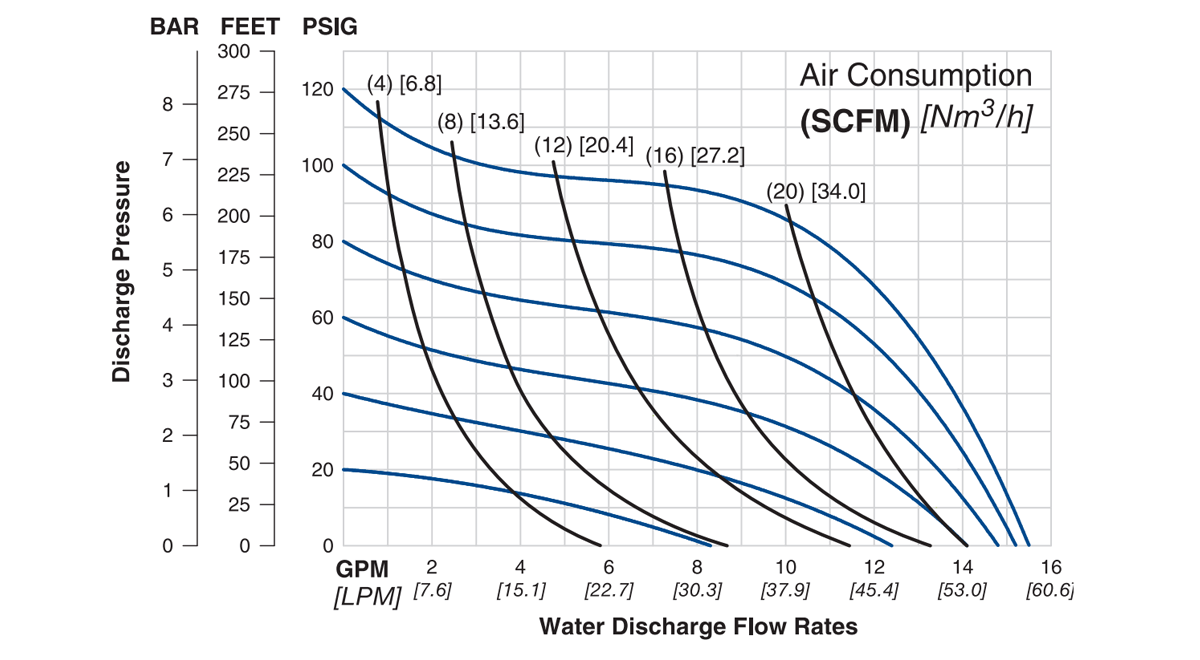

Flow Curve – TPE-Fitted

Flow Curve - TPE Fitted

Note: Additional performance curves can be found in the P100 Plastic Manual.

AIR INLET
  • 1/4" FNPT
LIQUID INLET
  • 13 mm (1/2")
LIQUID DISCHARGE
  • 13 mm (1/2")
CONNECTION TYPE
  • NPT/BSPT (Threaded)
MAX FLOW RATE
  • Rubber – 56 lpm (14.8 gpm)
  • TPE – 58.7 lpm (15.5 gpm)
  • PTFE – 57 lpm (15 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • 1.6 mm (1/16")
MAX SUCTION LIFT CAPABILITY
  • Rubber – 5.2 m (17.0') Dry, 8.7 m (28.4') Wet
  • TPE – 5.2 m (17.0') Dry, 5.5 m (18.0') Wet
  • PTFE – 4.5 m (14.7') Dry, 9.3 (30.6') Wet
DISPLACEMENT PER STROKE *
  • Rubber – 0.10 L (0.027 gal)
  • TPE – 0.11 L (0.029 gal)
  • PTFE – 0.10 L (0.027 gal)
    • * 1 cycle = 2 strokes

Wetted Housings

Material Ship Weight
Polypropylene 4 kg (8 lb)
PVDF 5 kg (10 lb)

Non-Wetted Housings

Description Material
Center Section Polypropylene
Air Valve Polypropylene

Elastomer Options

Material Temperature Limits
Buna-N -12°C to 82°C (10°F to 180°F)
FKM -40°C to 177°C (-40°C to 350°F)
Neoprene -18°C to 93°C (0°F to 200°F)
PTFE * 4°C to 104°C (40°F to 220°F)
Polyurethane -12°C to 66°C (10°F to 150°F)
Saniflex™ -29°C to 104°C (-20°F to 220°F)
Wil-Flex™ -40°C to 107°C (-40°F to 225°F)

* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
