Wilden AODD Double Diaphragm Pump - 13 mm (1/2 in.) - Pro-Flo SHIFT Clamped Aluminum - PS1

13 mm (1/2") CSA-Certified Clamped Metal AODD Pump GPS1

AIR INLET
  • 1/2" FNPT
LIQUID INLET
  • 13 mm (1/2")
LIQUID DISCHARGE
  • 13 mm (1/2")
CONNECTION TYPE
  • NPT/BSPT (Threaded)
MAX SUCTION LIFT CAPABILITY
  • Rubber – 5.9 m (19.3’) Dry, 9.8 m (32.3’) Wet
  • PTFE – 4.3 m (14.2') Dry, 9.7 m (31.7') Wet
MAX FLOW RATE
  • Rubber – 60.2 lpm (15.9 gpm)
  • PTFE – 59.8 lpm (15.8 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  •  1.6 mm (1/16")
DISPLACEMENT PER STROKE *
  • Rubber – 0.10 L (0.026 gal)
  • PTFE – 0.10 L (0.026 gal)
    • * 1 cycle = 2 strokes
  • icon_cert-CE
  • icon_cert-Ex
  • csa logo

Features and Benefits

Wilden® GPS Series pumps, equipped with the Pro-Flo® SHIFT Air Distribution System (ADS) and available in bolted metal construction, are certified by the Canadian Standards Association (CSA) to be powered by natural gas and maintain a safe, reliable operation. They are perfect for oil and gas operations where compressed air is not readily accessible but where natural gas is plentiful.

  • GPS Series pumps utilize the Wilden Pro-Flo SHIFT ADS
    • Helps plants save valuable natural gas
    • Pro-Flo SHIFT uses 60% less natural gas, without hindering performance
    • Greater flow - more gallons pumped per SCFM

Downloads

EOMs

13 mm (1/2") CSA Certified Clamped Metal Pump
Model: GPS1 | Code: WIL-17011-E-02

Spec Sheets

SPEC SHEET 13 mm (1/2") Pro-Flo Shift Metal CSA Pump
Model: GPS1 | Code: WIL-17010-T-02

Performance and Specifications

Dimensions

Dim-GPS1-13mm.5in-CSAC-CMP

Note: Dimensions vary by material and connection. For additional information, please refer to the GPS1 Metal Manual.

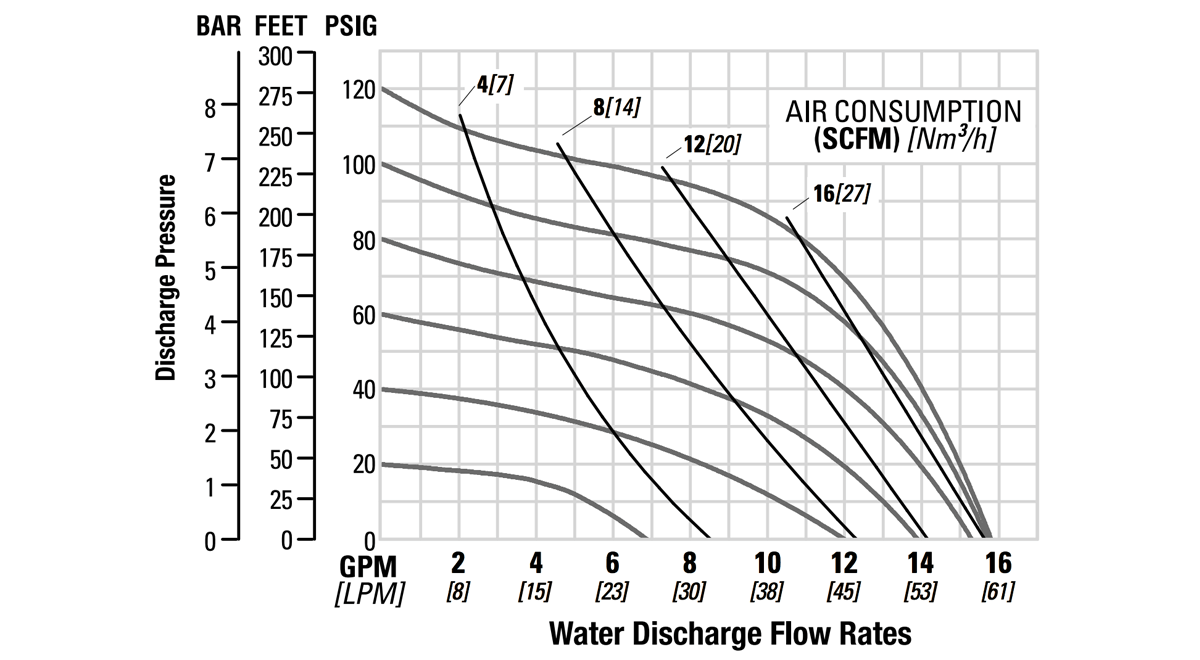

Flow Curve – PTFE-Fitted

Flo-GPS1-13mm.5in-CSAC-CMP

Note: Additional performance curves can be found in the GPS1 Metal Manual.

AIR INLET
  • 1/2" FNPT
LIQUID INLET
  • 13 mm (1/2")
LIQUID DISCHARGE
  • 13 mm (1/2")
CONNECTION TYPE
  • NPT/BSPT (Threaded)
MAX FLOW RATE
  • Rubber – 60.2 lpm (15.9 gpm)
  • PTFE – 59.8 lpm (15.8 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  •  1.6 mm (1/16")
MAX SUCTION LIFT CAPABILITY
  • Rubber – 5.9 m (19.3’) Dry, 9.8 m (32.3’) Wet
  • PTFE – 4.3 m (14.2') Dry, 9.7 m (31.7') Wet
DISPLACEMENT PER STROKE *
  • Rubber – 0.10 L (0.026 gal)
  • PTFE – 0.10 L (0.026 gal)
    • * 1 cycle = 2 strokes

Wetted Housings

Material Ship Weight
Aluminum 6 kg (13 lb)
Stainless Steel 9 kg (20 lb)

Non-Wetted Housings

Description Material
Center Section Aluminum
Air Valve Aluminum

Elastomer Options

Material Temperature Limits
Buna-N -12°C to 82°C (10°F to 180°F)
PTFE* 4°C to 104°C (40°F to 220°F)

* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
