13 mm (1/2") Accu-Flo™ Velocity Series Bolted Plastic AODD Pump A150V

AIR INLET
  • 1/2" FNPT
LIQUID INLET
  • 13 mm (1/2")
LIQUID DISCHARGE
  • 13 mm (1/2")
CONNECTION TYPE
  • FNPT (Threaded)
MAX SUCTION LIFT CAPABILITY
  • 5.1 m (16.9') Dry, 7.6 m (26') Wet
MAX FLOW RATE
  • 39 lpm (10.5 gpm)
MAX PRESSURE
  • 6.9 bar (100 psi)
MAX DIAMETER SOLIDS
  • 1.6 mm (1/16'')
DISPLACEMENT PER STROKE *
  • 0.11 L (0.03 gal)
    • * 1 cycle = 2 strokes
ce_logo

Features and Benefits

The Wilden® Accu-Flo Velocity Series is the solenoid option for the compact air-operated double-diaphragm (AODD) pump. Featuring a unique detachable mounting foot, Velocity Series pumps can easily be reoriented into a vertical or horizontal position with multiple inlet and discharge port options, a critical consideration for systems and skids.
  • Numerous mounting configurations to fit any application
  • 5.1 m (16.9') dry suction lift for better priming
  • Startup pressures as low as 1.03 bar (15 psig)
  • Bore-seal design that eliminates leaks that result from torque decay
  • Interchangeable footprint with previous Wilden designs (P.025, P25)

Downloads

EOMs

13 mm (1/2") Accu-Flo Velocity Series Bolted Plastic Pump
Model: A150V | Code: WIL-41010-E-01

Flyers

WIL-41000-F-06

Spec Sheets

Model: V150 | Code: WIL-41010-T-01

Solid Model Drawings

DIMENSIONS Wilden A150V DXF Drawings
A150V
V150
V150

Brochures

WIL-19151-C-02

Performance and Specifications

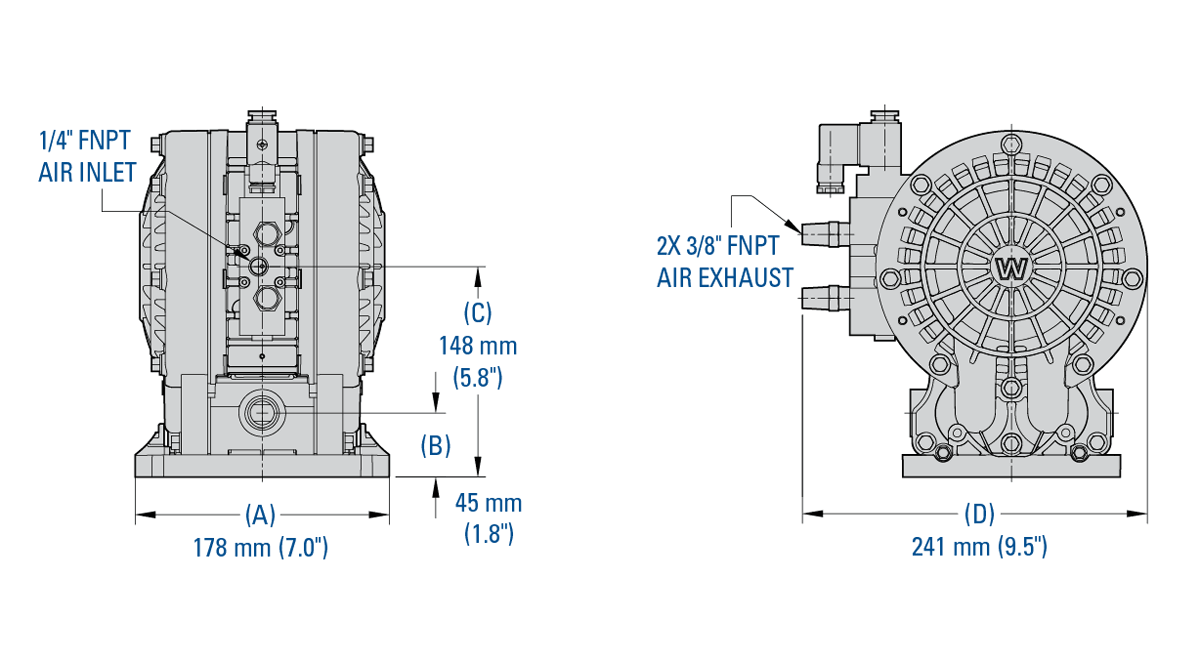

Dimensions

Dim-A150V-13mm.5inAccu-Flo-VS-BPP-Horz

Note: Dimensions vary by material and connection. For additional information, please refer to the V150 Plastic Manual.

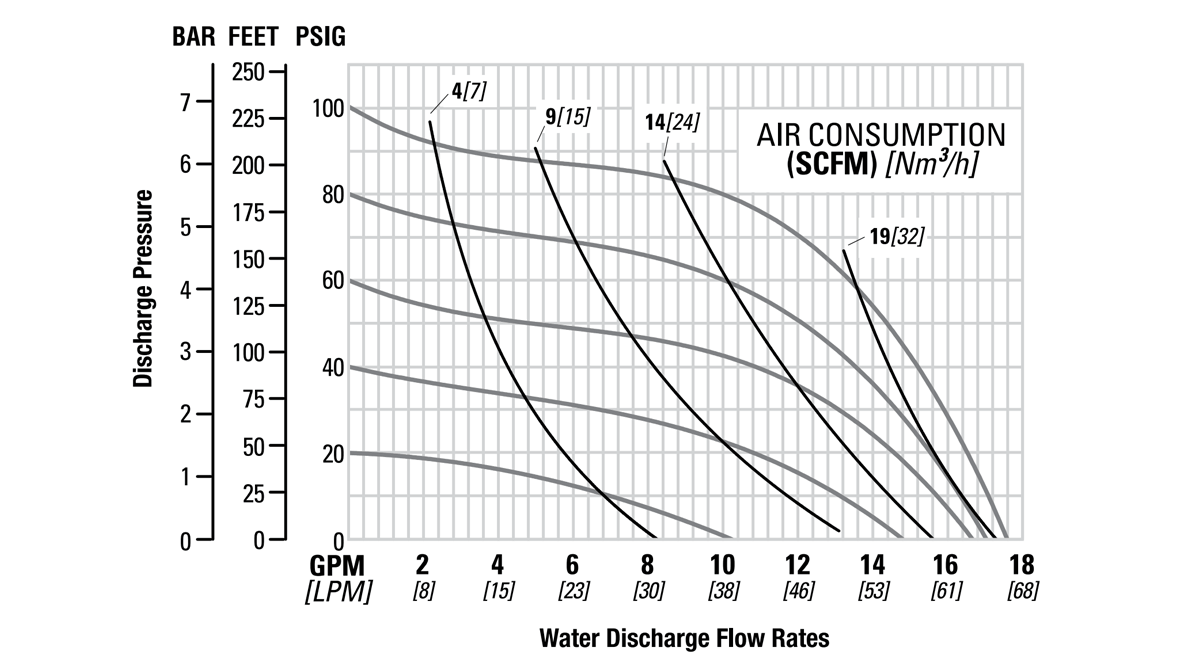

Flow Curve – Rubber-Fitted

Flo-A150V-13mm.5inAccu-Flo-VS-BPP

Note: Additional performance curves can be found in the V150 Plastic Manual.

AIR INLET
  • 1/2" FNPT
LIQUID INLET
  • 13 mm (1/2")
LIQUID DISCHARGE
  • 13 mm (1/2")
CONNECTION TYPE
  • FNPT (Threaded)
MAX FLOW RATE
  • 39 lpm (10.5 gpm)
MAX PRESSURE
  • 6.9 BAR (100 PSI)
MAXIMUM DIAMETER SOLIDS
  • 1.6 mm (1/16”)
MAX SUCTION LIFT CAPABILITY
  • 5.1 m (16.9') Dry, 7.6 m (26') Wet
DISPLACEMENT PER STROKE *
  • 0.11 L (0.03 gal)
    • * 1 cycle = 2 strokes

Wetted Housings

Material Ship Weight
Polypropylene 3 kg (10 lb)
PVDF 3.7 kg (10 lb)

Non-Wetted Housings

Description Material
Air Valve Polypropylene
Air Chambers PET or Aluminum (Accu-Flo only)

Elastomer Options

Material Temperature Limits
PTFE* 4°C to 104°C (40°F to 220°F)
Wil-Flex™ -40°C to 107°C (-40°F to 225°F)

* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
