Wilden AODD Double Diaphragm Pump - 102 mm (4 in.) - Pro-Flo SHIFT Clamped Ductile Iron - PS20

102 mm (4") Pro-Flo® SHIFT Series Clamped Metal AODD Pump PS20

AIR INLET
  • 3/4" FNPT
LIQUID INLET
  • 102 mm (4")
LIQUID DISCHARGE
  • 102 mm (4")
CONNECTION TYPE
  • DIN/ANSI (Flanged)
MAX SUCTION LIFT CAPABILITY
  • Rubber – 4.1 m (13.5') Dry, 8.6 m (28.4') Wet
  • EZ-Install TPE – 4.4 m (14.4') Dry, 8.6 m (28.4') Wet
  • Full-Stroke PTFE – 3.8 m (12.7') Dry, 8.6 m (28.4') Wet
MAX FLOW RATE
  • Rubber – 1,048 lpm (277 gpm)
  • EZ-Install TPE – 1,003 lpm (265 gpm)
  • Full-Stroke PTFE – 953 lpm (252 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • 35 mm (1-3/8")
DISPLACEMENT PER STROKE *
  • Rubber – 4.5 L (1.2 gal)
  • EZ-Install TPE – 4.4 L (1.16 gal)
  • Full-Stroke PTFE – 4.2 L (1.13 gal)
  • * 1 cycle = 2 strokes
  • icon_cert-CE
  • icon_cert-Ex

Features and Benefits

Featuring the original air-operated double-diaphragm pump design by Jim Wilden, clamped metal pumps offer a simple, rugged design for general industrial applications. Designed with ease of maintenance in mind, clamped pumps are simple to install and are made for quick serviceability, allowing the pump to be taken apart and put back together with only a single tool. Proven by the test of time, hundreds of thousands of Jim Wilden's clamped pumps have pumped billions of gallons of fluid on an annual basis.

  • NPT and BSP threaded inlet/discharge liquid connections for quick disconnect/connect
  • Featuring the energy-efficient Pro-Flo® SHIFT ADS
  • Greater flow - more gallons pumped per SCFM
  • Reduced air consumption and kilowatt usage
  • Decades of proven performance
  • Clamped connections for faster maintenance
  • Low cost
  • Simple installation
  • Ease of operation and maintenance

Downloads

EOMs

Model: PS20 | Code: WIL-10430-E-04

Spec Sheets

Model: PS20 | Code: WIL-10430-T-02

Performance and Specifications

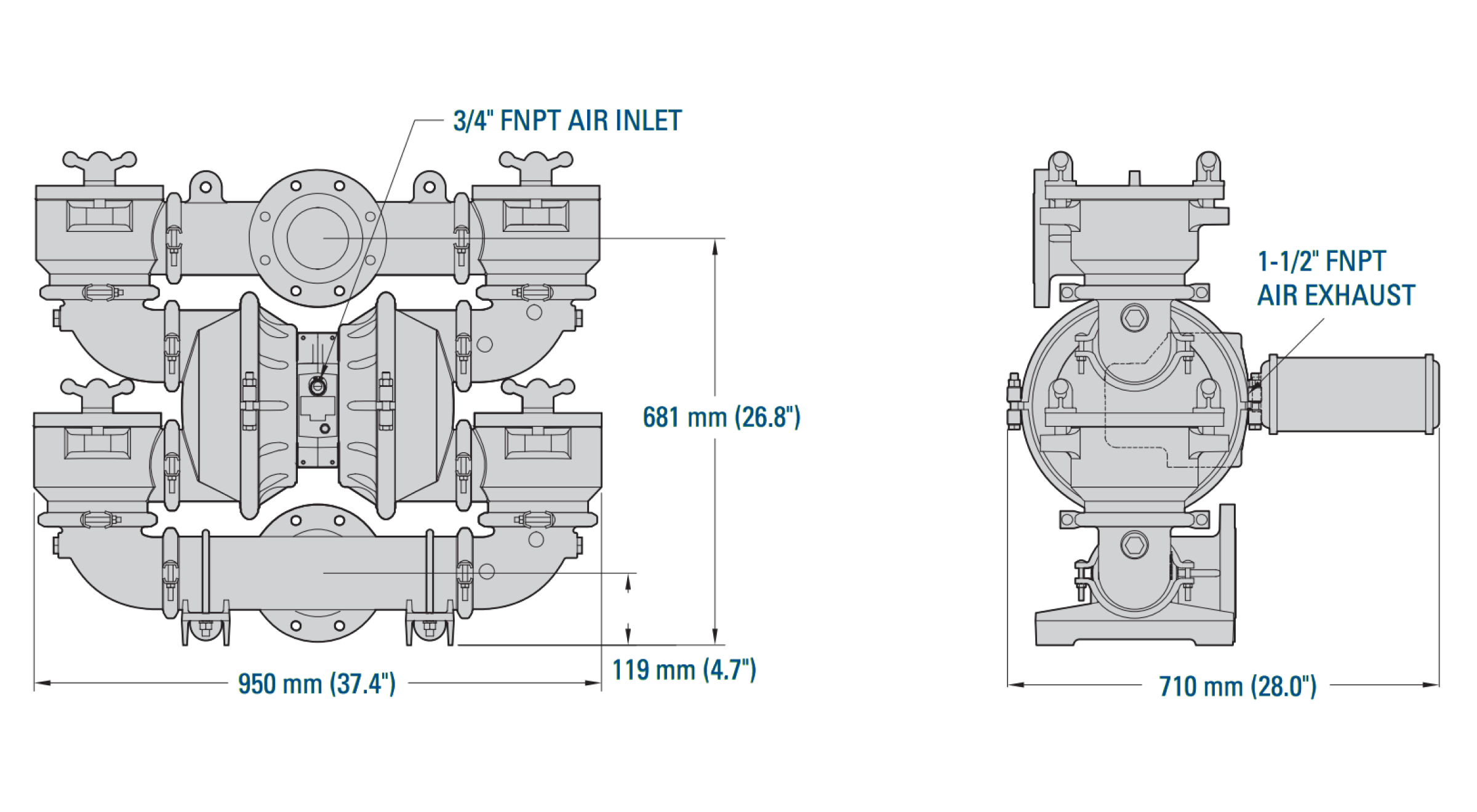

Dimensions

dim-p20-102mm4in-bpp

Note: Dimensions vary by material and connection. For additional information, please refer to the PS20 Metal Manual.

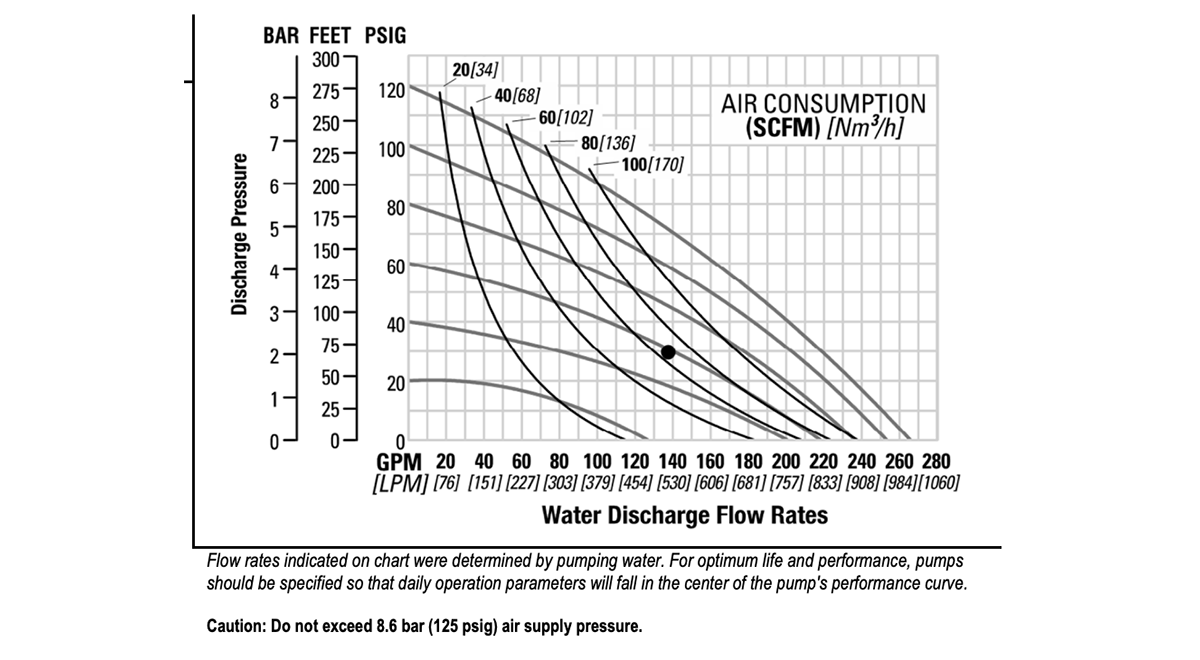

Flow Curve – EZ-Install TPE-Fitted

ps20-curve

Note: Additional performance curves can be found in the PS20 Metal Manual.

AIR INLET
  • 3/4" FNPT
LIQUID INLET
  • 102 mm (4")
LIQUID DISCHARGE
  • 102 mm (4")
CONNECTION TYPE
  • DIN/ANSI (Flanged)
MAX FLOW RATE
  • Rubber – 1,048 lpm (277 gpm)
  • EZ-Install TPE – 1,003 lpm (265 gpm)
  • Full-Stroke PTFE – 953 lpm (252 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • 35 mm (1-3/8")
MAX SUCTION LIFT CAPABILITY
  • Rubber – 4.1 m (13.5') Dry, 8.6 m (28.4') Wet
  • EZ-Install TPE – 4.4 m (14.4') Dry, 8.6 m (28.4') Wet
  • Full-Stroke PTFE – 3.8 m (12.7') Dry, 8.6 m (28.4') Wet
DISPLACEMENT PER STROKE *
  • Rubber – 4.5 L (1.2 gal)
  • EZ-Install TPE – 4.4 L (1.16 gal)
  • Full-Stroke PTFE – 4.2 L (1.13 gal)
  • * 1 cycle = 2 strokes

Wetted Housings

Material Ship Weight
Ductile Iron 223 kg (492 lb)

Non-Wetted Housings

Description Material
Center Section Aluminum, Stainless Steel, Polypropylene
Air Valve Aluminum, Anodized Aluminum, Stainless Steel, Polypropylene
Air Chamber Aluminum, Stainless Steel, Ductile Iron

Elastomer Options

Material Temperature Limits
Buna-N -12°C to 82°C (10°F to 180°F)
EPDM -51°C to 138°C (-60°F to 280°F)
FKM -40°C to 177°C (-40°F to 350°F)
Geolast® -40°C to 82°C (-40°F to 180°F)
Neoprene -18°C to 93°C (0°F to 200°F)
PTFE* 4°C to 104°C (40°F to 220°F)
Polyurethane -12°C to 66°C (10°F to 150°F)
Saniflex™ -29°C to 104°C (-20°F to 220°F)
Wil-Flex™ -40°C to 107°C (-40°F to 225°F)

* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
