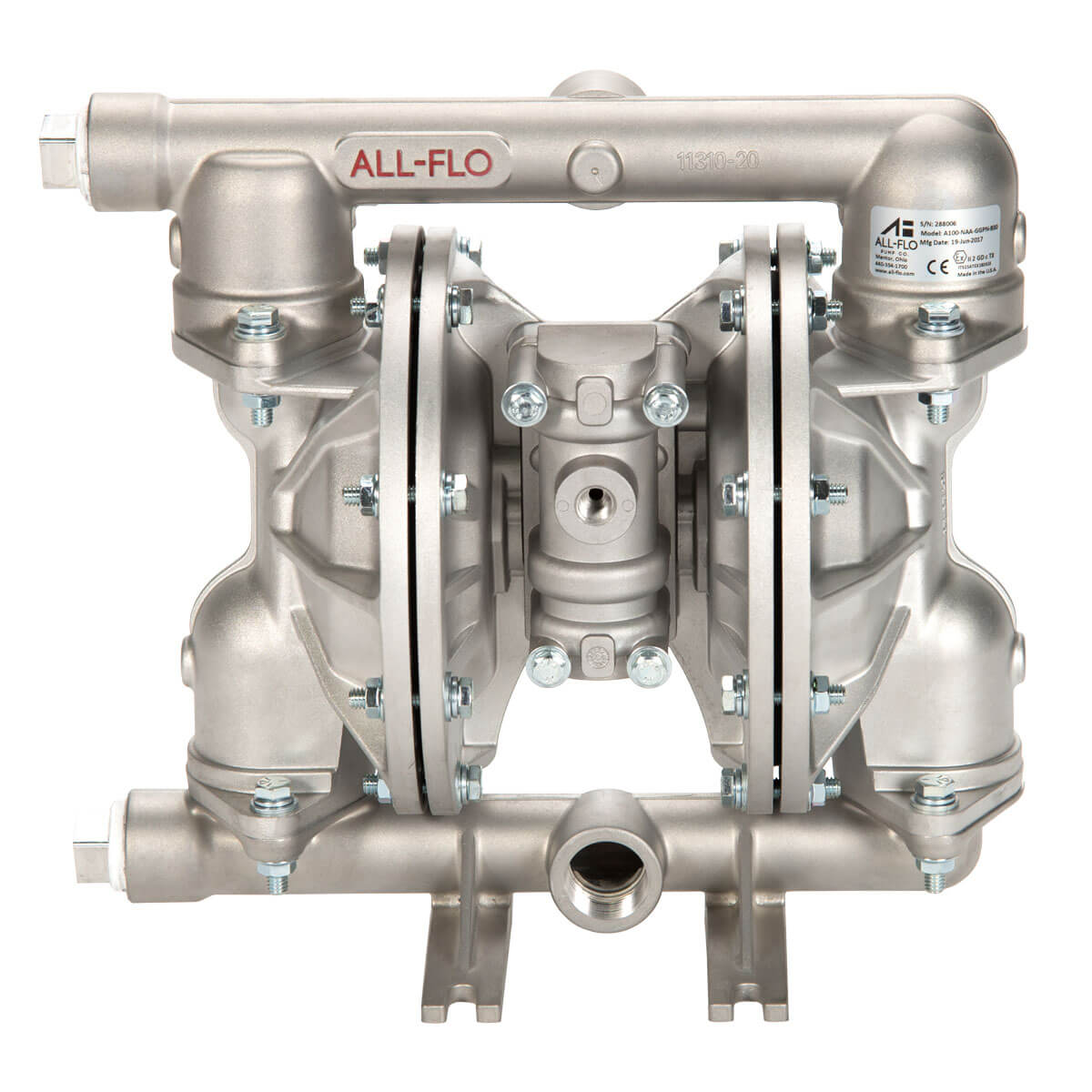

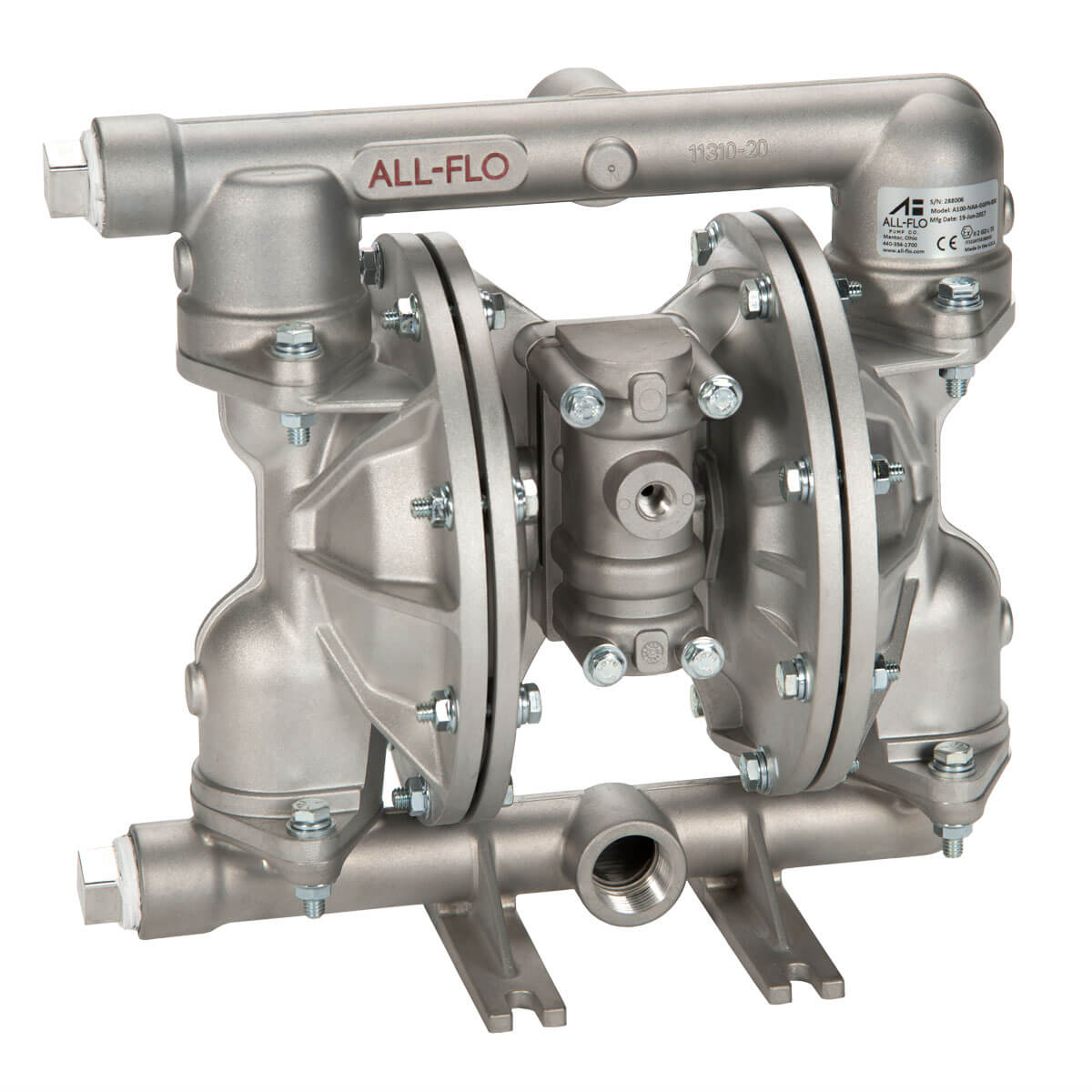

1 in. Metal AODD Pump A100

Air Inlet
  • 1/4" FNPT
Liquid Inlet
  • 1"
Liquid Discharge
  • 1"
Connection Type
  • FNPT/FBSPT (Threaded)
Max Suction Lift Capability
  • 17 ft-H2O (5.2 m-H2O) Dry
  • 30 ft-H2O (9.1 m-H2O) Wet
Max Flow Rate
  • 48 gpm (182 lpm)
Max Pressure
  • 120 psi (8.2 bar)
Max Diameter Solids
  • 1/4" (6.4 mm)
Displacement Per Stroke
  • 0.07 gal (0.28 L)
logo_choice Select Your Pump
  • CE Icon
  • ATEX Icon

Specifications

Physical Specifications
Liquid Port Size: 1 in.
Liquid Connection Types: FNPT, FBSPT
Standard Suction Port: Center Front
Standard Discharge Port: Center Rear
Air Inlet Connection Size: 1/4 in. FNPT
Air Exhaust Connection Size: 3/4 in. FNPT
Aluminum Stainless Steel
Max Height: 12.4 in. (315 mm) 12.4 in. (315 mm)
Max Width: 13.0 in. (330 mm) 13.0 in. (330 mm)
Max Depth: 8.4 in. (213 mm) 8.4 in. (213 mm)
Weight: 18 lbs (8 kg) 38 lbs (17 kg)
Construction
Wet End: Aluminum, Anodized Aluminum, Stainless Steel
Air End: Aluminum, PTFE Coated Aluminum
Diaphragm: Buna-N, Geolast®, PTFE, Santoprene®, FKM
Balls: Buna-N, EPDM, Geolast®, PTFE, Santoprene®, Stainless Steel, FKM
Seats: Aluminum, Nylon, Polypropylene, Stainless Steel
O-Rings: Buna-N, EPDM, PTFE, FKM
Hardware: Stainless Steel, Plated Steel
Muffler: Metal, Plastic

Performance

Performance Curve

A100-Performance-Curves_Rubber

Note: Additional performance curves can be found in the download section.

Performance
Max Flow: 48 gpm (182 lpm)
Max Air Pressure: 120 psi (8.2 bar)
Max Static Suction Head: 23 ft-H2O (7.0 m-H2O)
Max Suction Lift (Dry): 17 ft-H2O (5.2 m-H2O)
Max Suction Lift (Wet): 30 ft-H2O (9.1 m-H2O)
Max Solids: 1/4 in. (6.4 mm)
Avg. Displacement Per Stroke: (0.07 gal / 0.28 L)
Sound Level: 80 dBA (with Muffler)
ALUMINUM
A100-NAA-GNPN-B30 NPT, Geolast® Diaphragm, Buna-N Ball, Polypropylene Seat, Buna-N O-Ring, Zinc Plated Hardware
A100-BAA-GNPN-B30 BSPT, Geolast® Diaphragm, Buna-N Ball, Polypropylene Seat, Buna-N O-Ring, Zinc Plated Hardware
A100-NAA-GTPN-B30 NPT, Geolast® Diaphragm, PTFE Ball, Polypropylene Seat, Buna-N O-Ring, Zinc Plated Hardware
A100-BAA-GTPN-B30 BSPT, Geolast® Diaphragm, PTFE Ball, Polypropylene Seat, Buna-N O-Ring, Zinc Plated Hardware
A100-NAA-SSPE-B30 NPT, Santoprene® Diaphragm, Santoprene® Ball, Polypropylene Seat, EPDM O-Ring, Zinc Plated Hardware
A100-BAA-SSPE-B30 BSPT, Santoprene® Diaphragm, Santoprene® Ball, Polypropylene Seat, EPDM O-Ring, Zinc Plated Hardware
A100-NAA-TTYT-B30 NPT, PTFE Diaphragm, PTFE Ball, Nylon Seat, PTFE O-Ring, Zinc Plated Hardware
A100-BAA-TTYT-B30 BSPT, PTFE Diaphragm, PTFE Ball, Nylon Seat, PTFE O-Ring, Zinc Plated Hardware

STAINLESS STEEL
A100-NA3-GT3N-B70 NPT, Geolast® Diaphragm, PTFE Ball, Stainless Steel Seat, Buna-N O-Ring, Stainless Steel Hardware
A100-BA3-GT3N-B70 BSPT, Geolast® Diaphragm, PTFE Ball, Stainless Steel Seat, Buna-N O-Ring, Stainless Steel Hardware
A100-NA3-SS3E-B70 NPT, Santoprene® Diaphragm, Santoprene® Ball, Stainless Steel Seat, EPDM O-Ring, Stainless Steel Hardware
A100-BA3-SS3E-B70 BSPT, Santoprene® Diaphragm, Santoprene® Ball, Stainless Steel Seat, EPDM O-Ring, Stainless Steel Hardware
A100-NA3-TT3T-B70 NPT, PTFE Diaphragm, PTFE Ball, Stainless Steel Seat, PTFE O-Ring, Stainless Steel Hardware
A100-BA3-TT3T-B70 BSPT, PTFE Diaphragm, PTFE Ball, Stainless Steel Seat, PTFE O-Ring, Stainless Steel Hardware

Downloads

IOMs

A100 Metal IOM
Size: 1 in. | Code: ALF-12050-E-02

Performance Curves

A100 Metal Performance Curves
Size: 1 in.

Spec Sheets

SPEC SHEET A100 – 1 in. Metal Pump
Code: SPSHT-A100M-01

Dimensional Drawings

A100 Metal 2D Drawing
Size: 1 in.

3D Models

A100 Metal 3D Drawing
Size: 1 in.

Exploded Views

A100 Metal Exploded Views
Size: 1 in.
