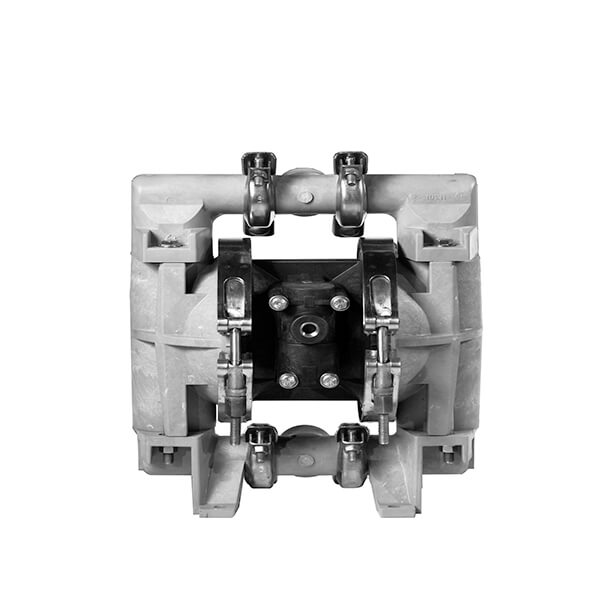

All-Flo AODD Double Diaphragm Pump - Legacy Plastic - 1 in. - C100

1 in. Legacy Plastic AODD Pump C100

Air Inlet
  • 1/4" FNPT
Liquid Inlet
  • 1"
Liquid Discharge
  • 1"
Connection Type
  • FNPT/FBSPT (Threaded)
Max Suction Lift Capability
  • 15 ft-H2O (4.6 m-H2O) Dry
  • 26 ft-H2O (7.9 m-H2O) Wet
Max Flow Rate
  • 40 gpm (152 lpm)
Max Pressure
  • 100 psi (6.8 bar)
Max Diameter Solids
  • 1/4" (6.4 mm)
logo_choice Select Your Pump
  • CE Icon

Specifications

Physical Specifications
Liquid Port Size: 1 in.
Liquid Connection Size: FNPT (FBSPP)
Standard Suction Port: Center Rear
Standard Discharge Port: Center Rear
Air Inlet Connection Size: 1/4 in.
Air Exhaust Size: 3/4 in.
Conductive Nylon Weight: N/A
Polypropylene Weight: 26 lbs (11.8 kg)
PVDF Weight: 27 lbs (12.2 kg)
Construction
Wet End: Polypropylene, PVDF
Air End: Glass filled Polypropylene
Diaphragm: Geolast®, PTFE, Santoprene®, FKM
Valve: Buna-N, Geolast®, PTFE, Santoprene®, FKM
Seat: Polypropylene, PVDF
Hardware: Stainless Steel

Performance

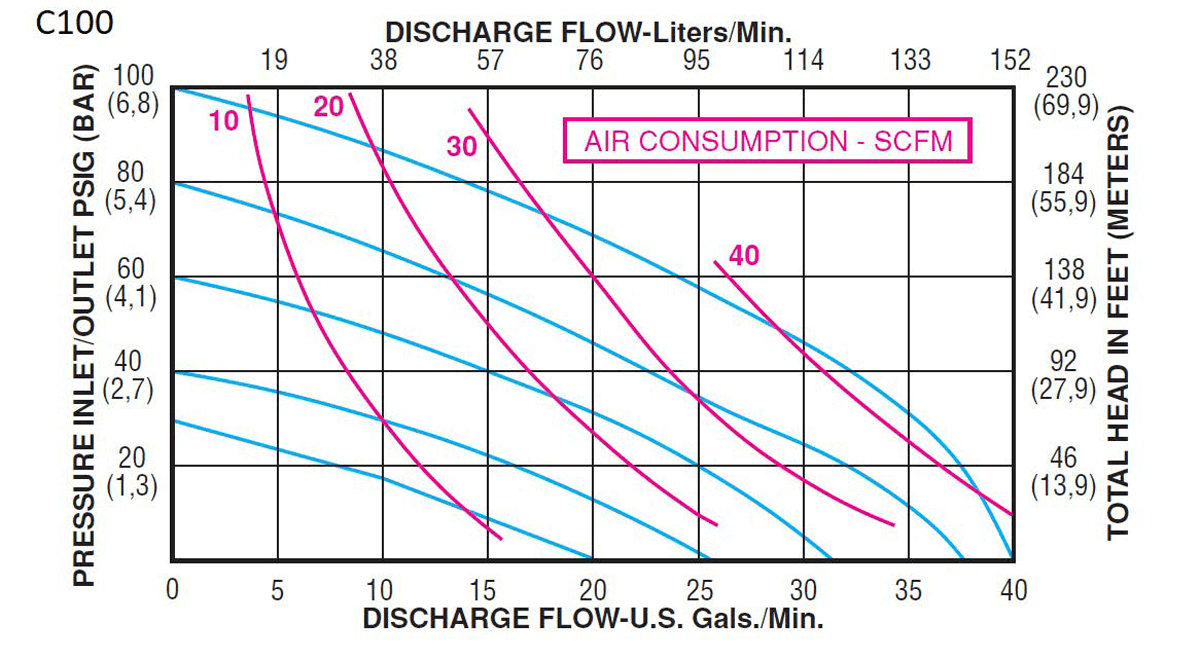

Performance Curve

Legacy-Plastic-Pump-performance-curves_C100

Note: Additional performance curves can be found in the download section.

Performance
Max Flow: 40 gpm (152 lpm)
Max Air Pressure: 100 psi (6.8 bar)
Suction Lift (Dry): 15 ft-H2O (4.5 m-H2O)
Suction Lift (Wet): 26 ft-H2O (7.9 m-H2O)
Max Solids: 1/4 in. (6.4 mm)
