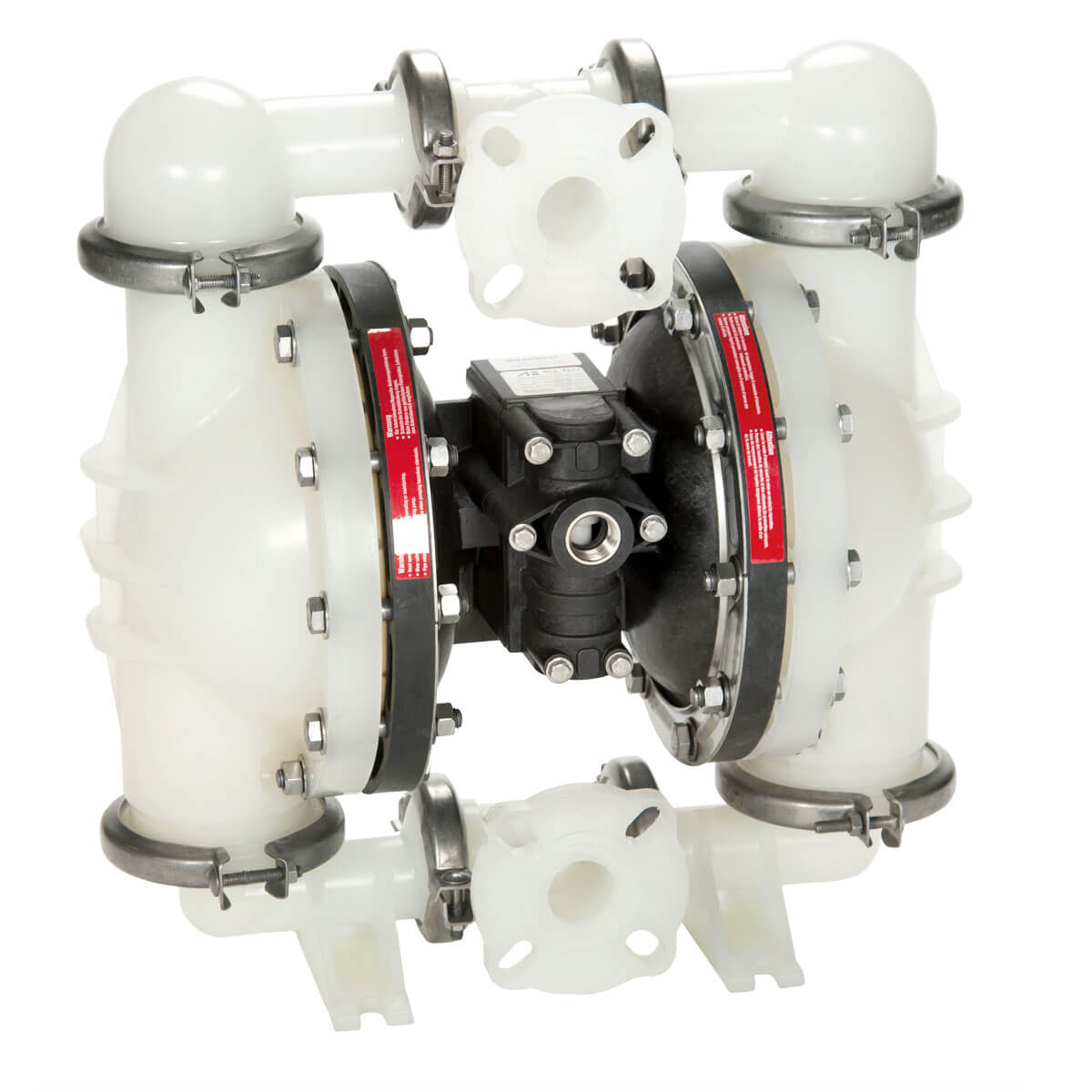

All-Flo AODD Double Diaphragm Pump - 1-1/2 in. Plastic - C150 All-Flo AODD Double Diaphragm Pump - Plastic - 1-1/2 in. - C150 - Angled

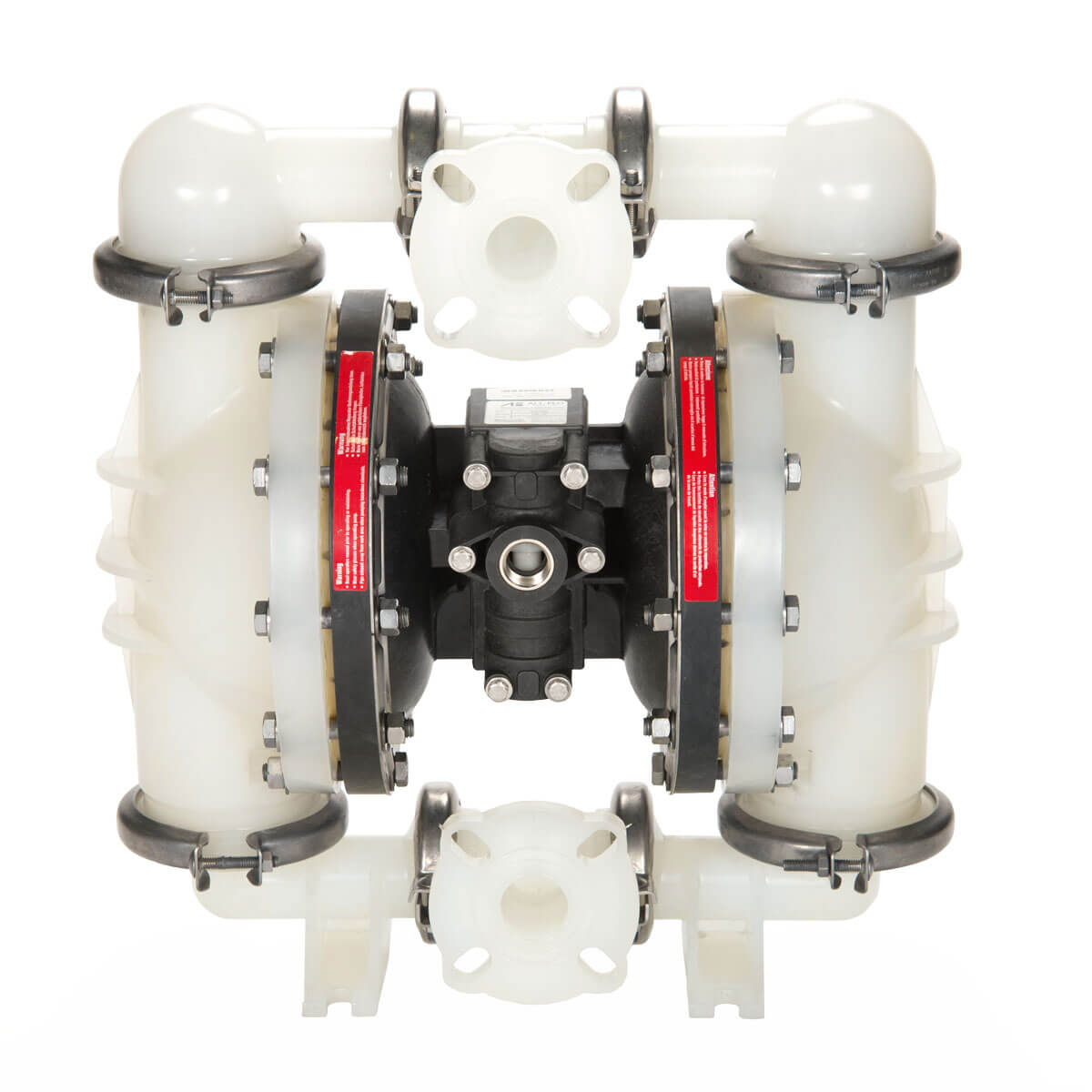

1-1/2 in. Plastic AODD Pump C150

Air Inlet
  • 3/4" FNPT
Liquid Inlet
  • 1-1/2"
Liquid Discharge
  • 1-1/2"
Connection Type
  • ANSI/DIN (Flanged)
Max Suction Lift Capability
  • 15 ft-H2O (4.6 m-H2O) Dry
  • 26 ft-H2O (7.9 m-H2O) Wet
Max Flow Rate
  • 130 gpm (492 lpm)
Max Pressure
  • 120 psi (8.2 bar)
Max Diameter Solids
  • 1/4" (6.4 mm)
Displacement Per Stroke
  • 0.46 gal (1.74 L)
logo_choice Select Your Pump
  • CE Icon
  • FDA Icon

Specifications

Physical Specifications
Liquid Port Size: 1-1/2 in.
Liquid Connection Type: ANSI / DIN Flange
Standard Suction Port: Center Front
Standard Discharge Port: Center Rear
Air Inlet Connection Size: 3/4 in. FNPT
Air Exhaust Connection Size: 3/4 in. FNPT
Polypropylene PVDF
Max Height: 21.77 in. (552.9 mm) 21.77 in. (552.9 mm)
Max Width: 20.58 in. (522.7 mm) 20.58 in. (522.7 mm)
Max Depth: 12.20 in. (309.9 mm) 12.20 in. (309.9 mm)
Weight: 46 lbs (20.8 kg) 65 lbs (29.4 kg)
Construction
Wet End: Polypropylene, PVDF
Air End: Glass Filled Polypropylene
Diaphragm: Geolast®, PTFE with Santoprene® backup, Santoprene®, FKM
Balls: Geolast®, PTFE, Santoprene®, FKM
Seats: Polypropylene, PVDF
O-Rings: Buna-N, EPDM, PTFE, FKM
Hardware: PTFE Coated Stainless Steel, Stainless Steel
Muffler: Plastic

Performance

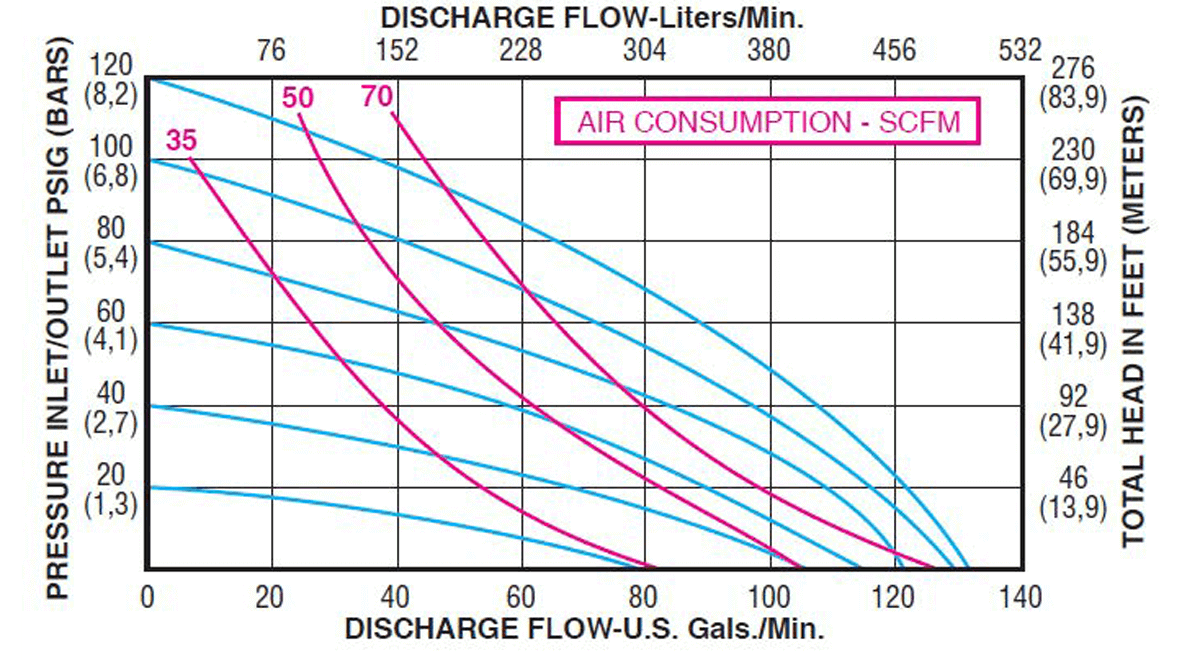

Performance Curve

C150-Performance-Curve

Note: Additional performance curves can be found in the download section.

Performance
Max Flow: 130 gpm (492 lpm)
Max Air Pressure: 120 psi (8.2 bar)
Max Static Suction Head: 23 ft-H2O (7.0 m-H2O)
Max Suction Lift (Dry): 15 ft-H2O (4.6 m-H2O)
Max Suction Lift (Wet): 26 ft-H2O (7.9 m-H2O)
Max Solids: 1/4 in. (6.4 mm)
Avg. Displacement Per Stroke: (0.46 gal / 1.74 L)
Sound Level: 78 dBA with Muffler
Polypropylene
C150-FPP-GGPN-B70 ANSI/DIN Flange, Geolast® Diaphragm, Geolast® Ball, Polypropylene Seat, Buna-N O-Ring, Stainless Steel Hardware
C150-FPP-SSPE-B70 ANSI/DIN Flange, Santoprene® Diaphragm, Santoprene® Ball, Polypropylene Seat, EPDM O-Ring, Stainless Steel Hardware
C150-FPP-TTPT-B70 ANSI/DIN Flange, PTFE Diaphragm, PTFE Ball, Polypropylene Seat, PTFE O-Ring, Stainless Steel Hardware
PVDF
C150-FPK-SSKE-B70 ANSI/DIN Flange, Santoprene® Diaphragm, Santoprene® Ball, PVDF Seat, EPDM O-Ring, Stainless Steel Hardware
C150-FPK-TTKT-B70 ANSI/DIN Flange, PTFE Diaphragm, PTFE Ball, PVDF Seat, PTFE O-Ring, Stainless Steel Hardware

Downloads

IOMs

C150 Plastic IOM
Size: 1-1/2 in. | Code: ALF-11060-E-02

Performance Curves

C150 Plastic Performance Curve
Size: 1-1/2 in.

Spec Sheets

SPEC SHEET C150 – 1-1/2 in. Plastic Pump
Code: SPSHT-C150P-01

Dimensional Drawings

C150 Plastic 2D Drawing
Size: 1-1/2 in.

3D Models

C150 Plastic 3D Drawing
Size: 1-1/2 in.

Exploded Views

C150 Plastic Clamped Exploded Views
Size: 1-1/2 in.
